Description
Product Introduction & Engineering Value
The BARTEC 07-7331-23042000 is a MODEX PROFIBUS interface module designed for acquiring analog process signals and transferring measurement data to higher-level control systems. It supports eight 4–20 mA input channels, allowing transmitters located in hazardous industrial environments to communicate with PLC or DCS platforms through PROFIBUS.
In chemical plants, oil and gas facilities, and other classified areas, these interface modules often sit between field instrumentation and the control network. When one fails, engineers may lose multiple pressure, flow, or level measurements at once. Correct replacement requires matching the exact BARTEC order code, protection type, and PROFIBUS configuration.
Technical Specifications
| Specification | Details |
|---|---|
| Manufacturer | BARTEC |
| Product Series | MODEX |
| Part Number | 07-7331-23042000 |
| Module Type | PROFIBUS Analog Input Interface |
| Number of Inputs | 8 channels |
| Input Signal | 4–20 mA |
| Communication Interface | PROFIBUS DP |
| Input Type | Passive analog current input |
| Resolution | 16-bit class measurement system (variant dependent) |
| Power Supply | 24 VDC |
| Mounting Type | TH35 DIN rail mounting |
| Enclosure Protection | IP66 module housing / IP20 terminals |
| Application Area | Hazardous-area process automation |
| Field Device Connection | Current transmitters |
| Diagnostic Features | PROFIBUS communication diagnostics |
Field Application & The “Trench” Experience
A chemical processing facility operating an explosion-protected instrumentation network experienced intermittent loss of several reactor monitoring values. Operators saw unstable readings from pressure transmitters and flow instruments connected through the remote I/O system.
The instrumentation team first inspected field transmitters and wiring because the affected instruments were installed in a classified area. Loop checks showed the transmitters were operating correctly.
The investigation moved toward the MODEX remote I/O cabinet. A faulty BARTEC 07-7331-23042000 analog PROFIBUS interface module was identified. After replacement, engineers verified PROFIBUS communication, checked each 4–20 mA channel, and confirmed that process values returned to the DCS.
The field lesson: when multiple analog signals disappear together, the common interface hardware deserves attention before replacing individual instruments.
Typical application scenarios:
- Hazardous-area pressure transmitter monitoring
- Tank level measurement systems
- Process flow measurement skids
- Remote instrumentation cabinets using PROFIBUS DP

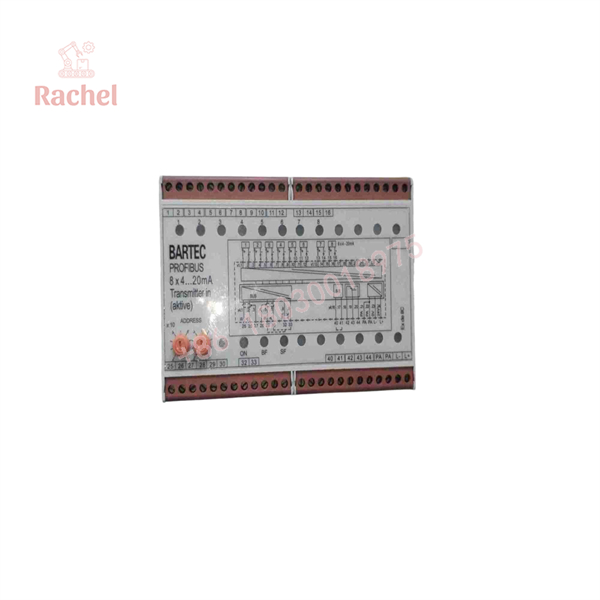

07-7331-23042000

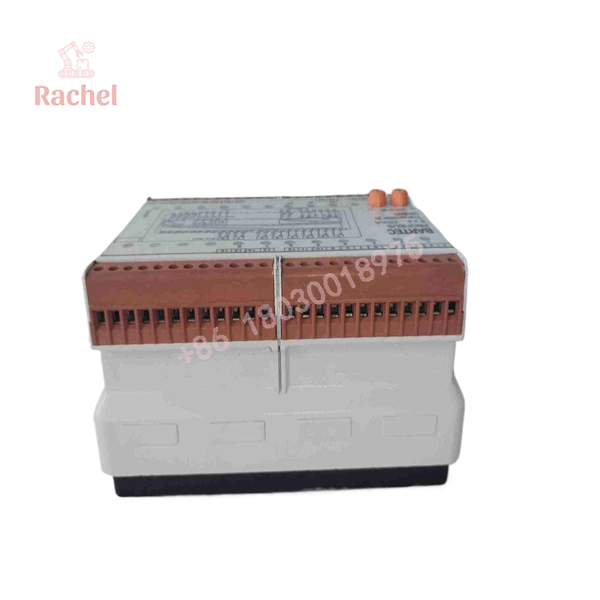

07-7331-23042000
Transparency SOP: QA & Testing
Analog communication modules require signal simulation, not only a power-on check.
Inspection and validation process:
1. Identification Check
- Confirm BARTEC manufacturer marking.
- Verify exact order number: 07-7331-23042000.
- Confirm MODEX compatibility.
2. Mechanical Inspection
- Inspect DIN rail mounting clips.
- Check terminal blocks.
- Verify enclosure condition.
3. Electrical Testing
- Apply 24 VDC supply.
- Check startup behavior.
- Verify current consumption.
- Confirm diagnostic LEDs.
4. Analog Channel Testing
- Apply calibrated 4–20 mA signals.
- Test multiple input channels.
- Confirm measurement stability.
- Verify PROFIBUS data transmission.
5. Documentation
- Record serial number.
- Store test results.
- Classify inventory:
- New Surplus
- Refurbished
- Tested Used
The Veteran’s Tech Trap Guide
⚠️ Trap #1: Confusing 07-7331-23042000 With Similar MODEX Modules
BARTEC MODEX modules share similar housings and numbering patterns.
Before replacement, verify:
- Exact suffix code
- Number of channels
- Signal type
- Ex protection category
A 16-channel digital module will not replace an 8-channel analog input module.
⚠️ Trap #2: Ignoring PROFIBUS Configuration Data
The module may power up correctly but fail communication if network settings do not match.
PRO TIP: Record before replacement:
- PROFIBUS address
- Master configuration
- GSD parameters
- Diagnostic settings
⚠️ Trap #3: Mixing Ex i and Ex e Requirements
Explosion-protected systems require correct hardware selection.
Check:
- Hazardous area classification
- Field circuit requirements
- Existing certification documentation
- Approved replacement model
Using a technically similar but uncertified module can create compliance problems.
Dynamic FAQ
Q1. What is the BARTEC 07-7331-23042000 used for?
The BARTEC 07-7331-23042000 is a MODEX PROFIBUS interface module used for acquiring 4–20 mA analog signals and transferring process data to automation systems.
Q2. How many analog inputs does the 07-7331-23042000 support?
This module supports 8 channels of 4–20 mA analog input measurement.
Q3. Is the 07-7331-23042000 a PLC module?
No. It is a remote I/O communication interface module. It collects field signals and communicates them through PROFIBUS rather than executing PLC logic.
Q4. Where is this module typically installed?
It is commonly installed in MODEX remote I/O systems used in industrial environments requiring explosion protection, including process plants and hazardous-area instrumentation systems.
Q5. What should buyers verify before purchasing a New Surplus 07-7331-23042000?
Recommended checks:
- Exact BARTEC part number
- PROFIBUS compatibility
- 4–20 mA channel requirements
- Ex certification requirements
- Terminal condition
- Communication test records
- Warranty coverage
Q6. Is refurbished 07-7331-23042000 suitable for critical process control inventory?
Yes, when the module has passed analog simulation testing, PROFIBUS communication verification, and inspection of hazardous-area interface requirements.
