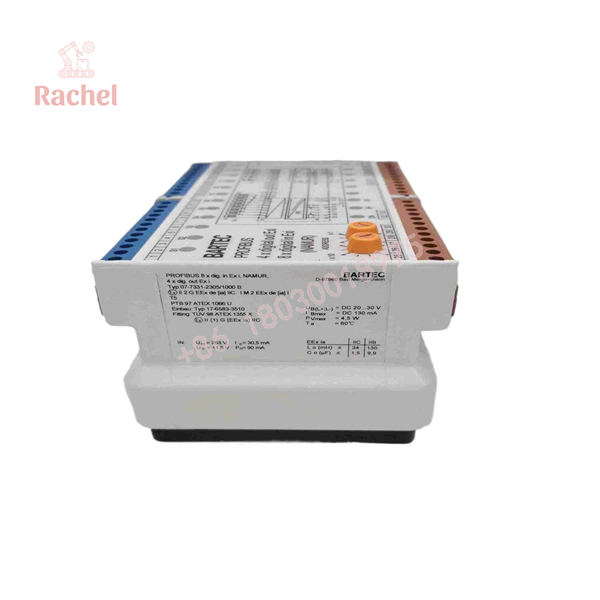

The BARTEC 07-7331-23051000 is an explosion-proof fieldbus interface and signal acquisition module designed for hazardous process environments. Developed by BARTEC for high-reliability applications, this module operates as a decentralized Remote I/O station, collecting analog/digital field signals and transmitting telemetry over a standard PROFIBUS DP network.
Constructed to meet strict Ex e (Increased Safety) and Ex i (Intrinsic Safety) standards, the 07-7331-23051000 is installed directly inside Zone 1 or Zone 2 hazardous field enclosures. In our field experience, replacing a degraded 07-7331-23051000 module eliminates recurring bus fault (BF) alarms, intermittent field channel drops, and communication timeouts caused by aged internal optical couplers or fieldbus transceivers.
Key Technical Specifications
| Parameter | Value |
| Part Number | 07-7331-23051000 |
| Manufacturer | BARTEC Group |
| Communication Protocol | PROFIBUS DP (RS485 Industrial Fieldbus Interface) |
| Explosion Protection Rating | ATEX / IECEx Zone 1, Zone 2 (Gas) & Zone 21, Zone 22 (Dust) |
| Protection Type | Ex e (Increased Safety Enclosure) / Ex i (Intrinsically Safe I/O) |
| Supply Voltage | 24 VDC Nominal System Power |
| Mounting | 35mm Standard DIN Rail (Inside Ex-certified enclosure) |
| Operating Temperature | -20°C to +60°C |
Application Scenarios & The “Trench” Experience
A chemical processing facility encountered random PROFIBUS network drops on a reactor skid located in an ATEX Zone 1 classified area. The main Siemens S7-400 controller logged frequent slave loss errors on the node housing the fieldbus interface module. Diagnostics revealed thermal degradation of the internal RS485 transceiver stage within the existing interface unit.
- Petrochemical Refineries & Tank Farms – Remote Signal Collection – Routes pressure, level, and valve telemetry from Zone 1 locations back to central control rooms without individual home-run cabling.
- Pharmaceutical Batching Systems – Solvent Processing Skids – Provides safe signal isolation and fieldbus communication within explosive dust/gas environments.
- Offshore Energy Facilities – Hazardous Process Control – Manages local interlocks and instrument loops in harsh marine and Ex-rated enclosures.
Technicians isolated power to the local Ex e cabinet, disconnected the pluggable terminal block, and installed a bench-tested BARTEC 07-7331-23051000 replacement unit. After matching the station address DIP switches, the PROFIBUS Bus Fault (BF) light cleared instantly, restoring reliable signal transmission to the DCS.
07-7331-23051000
07-7331-23051000
Transparency SOP: Quality Assurance & Testing
Every 07-7331-23051000 module undergoes a complete functional inspection before entering inventory:
- Inbound Mechanical & Housing Inspection: Checking terminal block latches, housing seals, top diagram legibility, and DIN rail mounting clips.
- Galvanic Isolation Testing: Verifying breakdown resistance between the power input, PROFIBUS RS485 lines, and internal logic circuits.
- PROFIBUS DP Communication Verification: Connecting the unit to a PROFIBUS master test ring at full baud rates to verify zero CRC data error accumulation.
- I/O Channel Thermal Stress Test: Cycling field inputs under load inside an environmental chamber to ensure stable signal conversion across operational temperature ranges.
- ESD Protective Packaging: Sealing the unit inside static-dissipative ESD shielding with custom shock-absorbing foam for transit.
The Veteran’s Tech Trap Guide (Crucial Value-Add)
- ⚠️ Match Hardware Node DIP Switches Exactly: Before applying power to the new module, ensure the station address DIP switches match the original unit’s settings. An address mismatch prevents the PROFIBUS master from recognizing the slave node.
- ❗ Verify Segment Bus Termination: If this module sits at the physical end of a PROFIBUS cable run, verify that the segment bus termination resistor is set to “ON.” Intermediate nodes must have termination set to “OFF” to prevent signal reflection.
- ⚠️ Maintain Ex Enclosure Seal Integrity: When servicing components inside explosion-proof (Ex e) junction boxes, inspect the lid gasket and cable glands. Ensure cover screws are torqued properly to preserve the hazardous area enclosure rating.
Frequently Asked Questions (FAQ for Conversion)
Q: Can the 07-7331-23051000 be installed directly in Zone 1 hazardous areas?
A: Yes, provided the module is mounted inside a certified Ex e or Ex p enclosure matching local ATEX/IECEx site requirements.
Q: Does replacing this card require updates to the PLC engineering software?
A: No. If you are replacing an existing 07-7331-23051000 unit with an identical part number, the PLC software GSD file and hardware configuration remain completely unchanged.
Q: Are the wiring terminals removable for fast field servicing?
A: Yes. The module features pluggable terminal strips, allowing rapid hardware swapouts without disconnecting individual field wires.
Q: What is the primary operational voltage for this unit?
A: The module operates on standard 24 VDC industrial control power.
Q: What warranty is provided with this surplus BARTEC module?
A: Every tested 07-7331-23051000 unit includes our full 12-month replacement warranty.
