Baumuller BUM61-2030-54-B Servo Drive Controller Board

Description

Product Introduction

The Baumuller BUM61-2030-54-B is a modular servo controller and inverter module designed for heavy-duty industrial motion control. Operating within the proven BUM 61 hardware ecosystem, this module manages precision speed, torque, and position regulation for high-performance AC synchronous and asynchronous servo motors across complex multi-axis machines.

In high-speed printing, plastic injection molding, and metal forming applications, BUM 61 drives are prized for their tight loop response and robust thermal management. Because Baumuller has transitioned support to newer drive generations, obtaining a fully tested, functional BUM61-2030-54-B is essential for plant engineers needing a drop-in repair to keep legacy production lines running without expensive cabinet retrofits.

Key Technical Specifications

Application Scenarios & The “Trench” Experience

Picture this: It’s 1:30 AM during a full-production run on a multi-station web printing press. Station 3’s registration axis trips violently offline on a “Current Loop Error.” The drive cabinet door comes open, and the diagnostic display on your Baumuller rack flashes an over-current latch that will not clear—the internal switching transistors on the BUM61 card have failed under load. You cannot rewrite drive parameters or install a modern servo series without taking down the entire line for days. Swapping in a bench-tested BUM61-2030-54-B unit, verifying your feedback encoder connections, and resetting the main rack restores register sync in minutes, saving tens of thousands of dollars in ruined paper stock.

• Continuous Web Printing Presses – Main cylinder and feed roll servo control – Maintains sub-millimeter register alignment under fluctuating tension.
• Plastic Injection Molding Machines – Hydraulic pump and clamp axis drive systems – Delivers repeatable high-torque clamping dynamics during fast cycle times.
• Metal Stamping & Press Feeds – High-speed coil feeder positioning – Executes high-acceleration feed profiles without position drift or thermal tripping.
• Packaging & Converting Machinery – Rotary cutter and sealing head coordination – Provides tight vector control across continuous operational shifts.

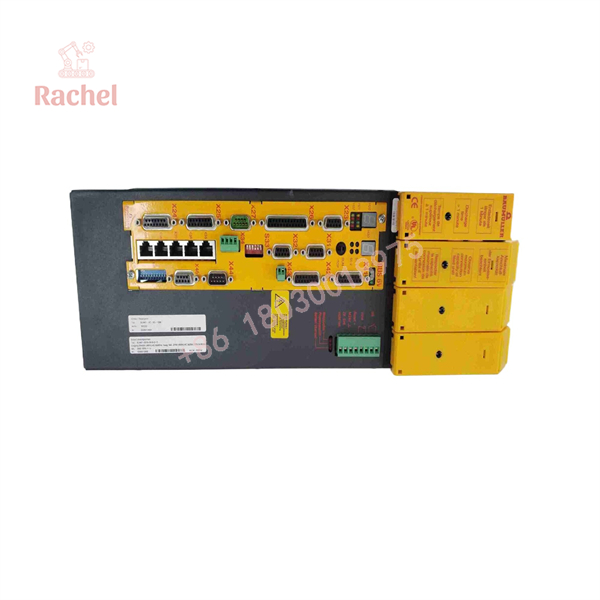

BUM61-2030-54-B

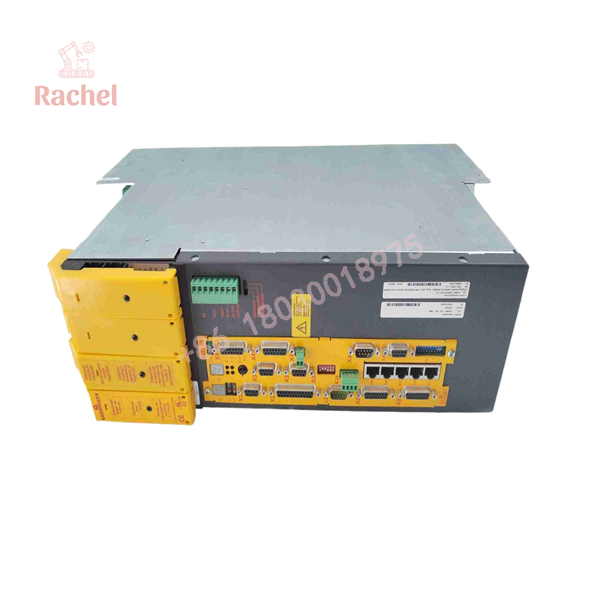

BUM61-2030-54-B

Transparency SOP: Quality Assurance & Testing

Obsolete power electronics cannot be shipped out unverified. Every Baumuller BUM61-2030-54-B passes through our rigorous testing checklist:

1. Visual & Structural Audit: Inspecting IGBT power modules, trace paths, and electrolytic bus capacitors for swelling, thermal discoloration, or solder cracking.
2. Cold-Resistance Check: Measuring gate-to-emitter and collector-to-emitter resistance across power stages to catch shorted components before applying voltage.
3. DC Bus Pre-Charge & Idle Test: Powering the module up slowly on a current-limited DC bus supply to condition bus capacitors and verify control rail regulation.
4. Closed-Loop Motor Run Test: Mating the module to a test bench Baumuller servo motor with resolver feedback, executing full speed ramps under simulated dynamic loads.
5. Anti-Static & Cushion Shielding: Vacuum-sealed in anti-static moisture-barrier material and packed with thick structural foam for transportation safety.

The Veteran’s Tech Trap Guide

• ⚠️ Intermediate DC Bus Discharge Warning: Never touch terminal connections or pull the BUM61 card immediately after disconnecting power. The 540V DC bus intermediate circuit holds lethal charge in its bulk capacitors for several minutes. Measure DC bus voltage with a calibrated meter to confirm 0V before servicing.
• ❗ Re-verify Personality Card / EPROMs: When swapping out a dead BUM61-2030-54-B, remember to transfer your original axis configuration plug-in card or parameter EPROMs to the replacement unit if applicable. Missing parameter matching will cause immediate drive faults on power-up.
• ⚠️ Feedback Cable Shielding: Baumuller resolver and encoder feedback lines are sensitive to high-frequency EMI noise. Ensure feedback cable shields are grounded cleanly via 360-degree clamps at the drive entry; loose shield drain wires will cause random velocity jitter.
• ❗ Heatsink Compound Application: If your mounting style requires re-seating the unit onto a cabinet heatsink block, apply a uniform, thin layer of high-grade thermal grease. Insufficient thermal contact will cause immediate over-temperature trips under load.

Frequently Asked Questions (FAQ for Conversion)

Q: Is the Baumuller BUM61-2030-54-B hot-swappable?

A: No. Attempting to pull or insert this controller card while the rack power or DC bus is live will instantly destroy backplane contacts and damage adjacent drive cards. Power off and verify zero bus voltage first.

Q: Do I need to re-program the replacement BUM61-2030-54-B module?

A: The hardware board itself carries control logic, but specific axis tuning, motor constants, and gear ratios are dictated by your system’s setup. Make sure to transfer your original parameter module or reload drive parameters via Baumuller software after installation.

Q: What is the primary cause of failure on older BUM 61 series drives?

A: Thermal cycling over years of service degrades onboard electrolytic capacitors and power module solder joints. Dust buildup on heatsinks also restricts airflow, causing ambient cabinet temperatures to cook control components.

Q: Are these units original Baumuller stock?

A: Yes. All stock consists of original OEM equipment sourced through audited industrial surplus buybacks, plant retrofits, and verified warehouse inventory.

Q: What warranty coverage is included with this replacement unit?

A: All BUM61-2030-54-B modules are backed by a complete 12-month operational replacement warranty.
