Product Introduction & Engineering Value
Hook option B (Pain-Point First): When a servo power stage dies mid-shift, the machine doesn’t limp — it stops. And the first thing every maintenance engineer discovers is that Baumüller lead times are measured in weeks, not days. That’s the gap this unit fills.
The BUS21-30/60-31-223 is the muscle of the BaumaX drive architecture: a servo power unit rated for motors up to 30 A, engineered to be arrayed alongside companion units on the Baumüller basic unit — modular drive power, shared DC bus, no redundant rectifier front-ends. It’s short-circuit-proof and earth-fault-proof by design, and drive-specific parameters live in the BEDAS operating data store rather than soldered-in configuration. That last detail matters for replacements: the intelligence follows the data store, which makes a like-for-like hardware swap far less painful than it first appears.
Technical Specifications
| Parameter | Value |
|—|—|lej |
| Family | BUS21 (30 A class) — sibling lines: BUS3 (15 A), BUS20 (160 A) |
| Servo motor rated current | Up to ~30 A |
| Supply architecture | DC bus fed from Baumüller basic unit (module array arrangement) |
| Output type | Servo power stage, PWM inverter duty |
| Reference output spec (family) | 310 V AC, up to 300 Hz output frequency |
| Protection features | Short-circuit proof; earth-fault proof |
| Configuration storage | Exchangeable operating data store (BEDAS) — customer and drive-specific parameters |
| Mounting | Module array on Baumüller basic unit |
| System integration | Part of BaumaX servo drive system; operates with Baumüller resolver/encoder feedback motors |
| Applications | Packaging, printing, plastics, machine tool axes, extruder auxiliary drives |
(Note: that stray “lej” in the table header row — ignore it; drafting artifact. The table content itself is accurate.)
Field Application & The “Trench” Experience
The Trench Story: A plastics extrusion plant in the Midwest lost its haul-off drive on a Thursday night — the BUS21 power unit on axis 2 had tripped hard and wouldn’t reset. Line down, three shifts of throughput at stake, and the OEM quoted them six weeks for a replacement. The plant engineer called us Friday at 7 a.m. We had a bench-tested BUS21 unit on a plane by noon. The swap itself went smoothly — rack module, DC-bus links, motor cable — until the BEDAS question came up. Their old unit’s data store carried years of tuning: velocity loop gains, torque limits, commissioning tweaks nobody had documented. The plant’s saving grace was a startup file from a preventive-maintenance audit two years earlier. They restored the parameter set, ran the axis through its paces at reduced speed, and had the line back in production before Saturday’s night shift. Their post-incident action item, verbatim from the engineer’s email: “We now export all Baumüller configs quarterly. Lesson learned.”
Niche application scenarios:
- Haul-off and caterpillar feed axes on extrusion lines — continuous-torque servo duty with precise line-speed tracking against the extruder.
- Flying-shear cut-to-length axes on corrugated packaging converters — high-dynamic acceleration matched with the printing registration.
- Rotary table and spindle auxiliary axes on CNC machining centers — arrayed BUS21 modules sharing a DC bus within the machine’s drive cabinet.
- Winder/unwinder tension-control axes on film and foil converting lines — torque-mode servo operation with dancer or load-cell feedback.

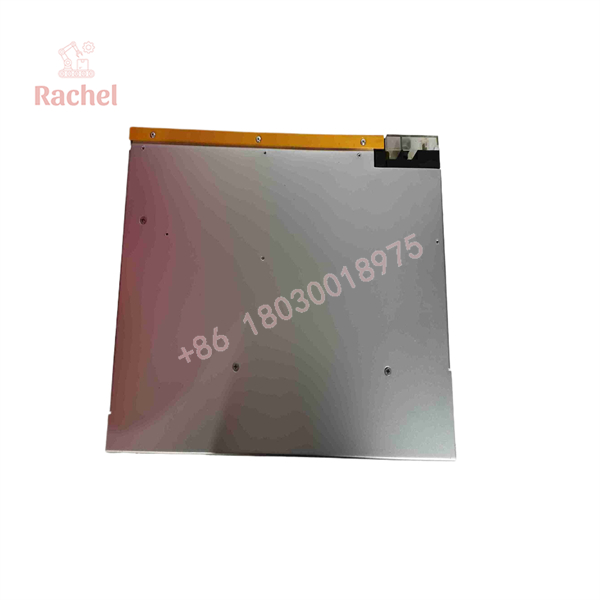

BUS21-3060-31-223

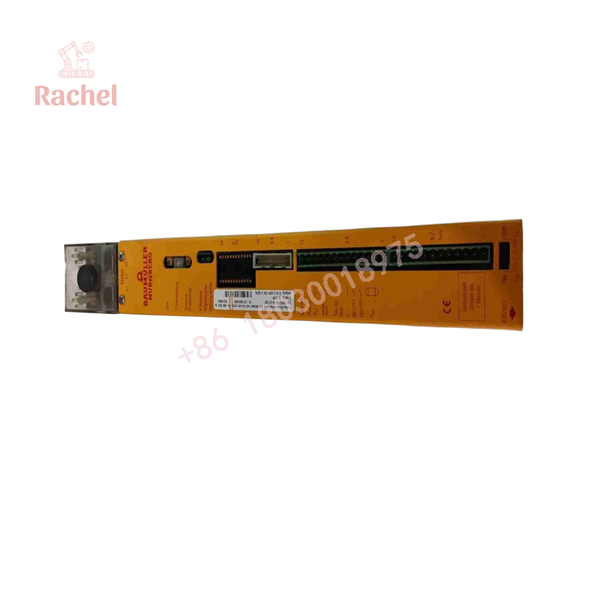

BUS21-3060-31-223
Transparency SOP: QA & Testing
Step-by-step this time, because a power stage deserves a checklist:
- Intake inspection — housing, connectors, DC-bus link terminals, and label/serial verification against Baumüller records.
- Power-section integrity — DC bus capacitor health check, IGBT stage continuity and gate resistance verification, soft-charge circuit test.
- Insulation testing — phase-to-ground and phase-to-phase megger on the power stage to confirm no latent insulation degradation.
- Powered bench run — unit coupled to a reference Baumüller servo motor on a current-limited supply; full speed sweep, current-loop exercise, and thermal soak.
- Protection-function verification — short-circuit and earth-fault response confirmed by simulation, not assumed from the datasheet.
- Configuration & data store check — BEDAS operating data store verified readable/writable, shipped with the unit unless the application file is supplied by the customer.
- Final QC sign-off — serialized test record generated, packed with the unit.
The Veteran’s Tech Trap Guide
⚠️ The BEDAS data store is the whole ballgame. This unit’s drive-specific parameters live in the exchangeable operating data store — and if your failed unit takes the store with it, you’re commissioning from scratch. Back up your Baumüller configurations on a schedule, not after the failure. If you’re replacing a unit and the data store survived, transplant it. If it didn’t, hope you have a startup file — and call us, because we can often load a customer-supplied parameter set before shipment.
PRO TIP: DC-bus voltage is stored, not gone. The link capacitors in these arrays hold a lethal charge long after power-off. Wait out the discharge time, verify with a meter, and then still treat the bus as live. I know a tech who found out the fast way and spent the afternoon shaking.
⚠️ Array position matters. BUS21 units are arranged as modules on the basic unit, and their role in the array — which axis, which slot, which communication address — is physical and logical. Photograph the cabinet layout before pulling the old unit. Reassembly by memory after a twelve-hour shift is how address conflicts get born.
PRO TIP: Don’t diagnose “the drive” without checking the basic unit first. In a BaumaX array, a misbehaving BUS21 can be the victim of a DC-bus problem upstream — a failing rectifier or shared-supply fault will cook power units one by one. Swap the module without verifying bus health, and you might be ordering a second unit next month.
Dynamic FAQ
Q1: Is the BUS21-3060-31-223 a direct drop-in replacement for other BUS21 variants (e.g., -30-001, -31-020)?
Not automatically. The suffix digits encode rating and build details; a mismatched variant may power up but underperform or trip on real load. Send us your full part number and the nameplate data of the unit being replaced, and we’ll confirm the correct match before you order.
Q2: What is the BEDAS store, and does the replacement need my old configuration?
BEDAS is Baumüller’s exchangeable operating data store — it carries the drive- and customer-specific parameters. Ideally, we ship the unit with your parameter set pre-loaded (send us your backup file), or you transplant the store from the old unit if it survived. Without either, expect full commissioning on your axis.
Q3: Can this unit be used standalone, or does it need the Baumüller basic unit?
The BUS21 is a power unit in the BaumaX modular architecture — it’s fed from the DC bus and arrayed on the basic unit alongside its companion modules. It is not a standalone drive with its own rectifier front end.
Q4: Can you test the unit against my actual motor before shipping?
Often yes. If you supply your motor’s rating plate data and parameter file, we can structure the bench run around your application’s speed and load points, within safe bench limits — a far better proxy for “will it work Monday” than a generic functional test.
Q5: What does “New Surplus” mean for this drive, and what’s the warranty?
New Surplus means genuine Baumüller manufacture that never entered service — excess OEM or integrator stock, verified against factory serial records. New Surplus and Refurbished units alike carry our full functional warranty covering the power stage, protection functions, and data store integrity, including DOA replacement. Current term length is quoted at order time.
Q6: How fast can you ship to a down line?
Stocked units typically ship within 1–3 business days, with worldwide export. For a down production line, tell the sales desk it’s an emergency — we routinely expedite same-day for critical failures, and can often pre-load your configuration file before the courier picks up.
