Description
Product Introduction & Engineering Value
Space-constrained industrial automation cells often demand a high-performance control node that combines a powerful CPU and direct terminal block connectivity without requiring an external power supply block or bulky expansion chassis. The Beckhoff CX9001-1001 embedded PC controller fulfills this exact requirement, serving as an efficient processing core for smaller TwinCAT-based machine automation tasks.
Engineered for direct DIN-rail mounting and snap-on E-bus terminal connection, this CPU module handles multi-tasking logic and fast control loops with low thermal dissipation. Machine builders rely on its compact, fanless footprint to streamline control cabinet designs while maintaining reliable 24/7 operation.
Technical Specifications
- System Family: Beckhoff CX9001 Modular Embedded PC Series
- Processor Architecture: 32-bit RISC CPU core optimized for real-time industrial control
- Operating System: Windows CE pre-installed on internal flash storage
- Software Environment: Beckhoff TwinCAT PLC runtime environment
- Bus Interfaces: Direct, automatic detection connection for Beckhoff E-bus (EtherCAT terminals) or K-bus (conventional terminals)
- Peripheral Connectivity: 2x RJ45 Ethernet ports, USB ports, and optional DVI/Audio interface connections
- Power Supply: Integrated 24V DC power supply input with internal bus power routing
- Mounting Standard: DIN-rail mountable compact enclosure design
Field Application & The “Trench” Experience
During a routine commissioning run on an automated conveyor sorting cell, a compact Beckhoff CX controller locked up permanently due to an unrecoverable operating system crash on its internal flash memory. Rebuilding the cabinet layout for an entirely different controller family would have delayed the plant handover by days. The automation engineer retrieved a verified New Surplus Beckhoff CX9001-1001 unit from the maintenance crib, configured the network parameters, and snapped the controller onto the DIN rail directly alongside the existing E-bus terminal string. The CPU booted cleanly on the first power cycle, loaded the TwinCAT project files, and restored full sorting operations within twenty minutes.
Targeted Application Scenarios:
- Compact Conveyor & Sortation Systems: Managing high-speed photoelectric tracking and pneumatic diverter logic.
- Stand-Alone Test Fixtures: Executing local data acquisition and operator interface control in tight enclosure spaces.

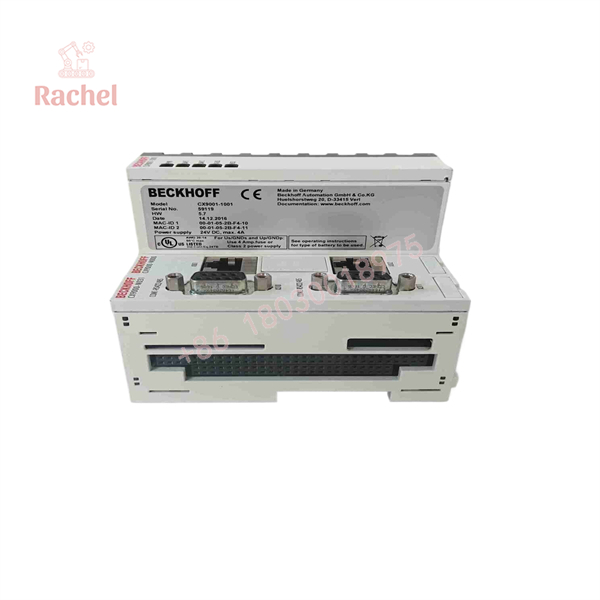

CX9001-1001

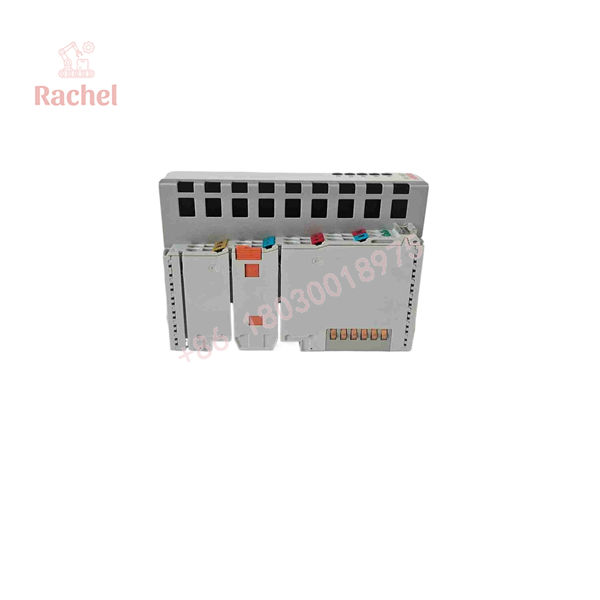

CX9001-1001
Transparency SOP: QA & Testing
1.Visual & Connector Inspection:10 min.
Examine the DIN-rail locking clips, RJ45 Ethernet ports, power screw terminals, and side E-bus pins under magnification for wear or damage.
2.Power Supply & Boot Test:30 min.
Energize the CPU on a test bench fixture to verify 24V DC regulation, BIOS initialization, and Windows CE cold-boot stability.
3.TwinCAT Runtime & Network Check:1 hr.
Test both onboard Ethernet interfaces and run a benchmark TwinCAT runtime cycle to verify processor memory and packet transmission integrity.
4.Thermal Burn-In Cycle:24 hrs.
Operate the module continuously in a thermal test chamber for 24 hours to screen out latent hardware defects prior to shipment.
The Veteran’s Tech Trap Guide (Crucial Value-Add)
⚠️ NETWORK IP CONFIGURATION HAZARD: When swapping a CX9001-1001 controller, never connect the replacement unit to a live plant network without verifying its static IP address or AMS Net ID first. Duplicate IP addresses on a TwinCAT network will cause cyclic communication dropouts across connected EtherCAT couplers and drives.
PRO TIP: Always keep a digital archive of your CX9001 registry settings, TwinCAT boot project, and network configurations. Restoring a replacement unit is remarkably fast if your backup package is pre-compiled and ready for deployment via TwinCAT System Manager.
Dynamic FAQ
- Q: Does the CX9001-1001 require a separate power supply module like the CX1100?
- A: No, unlike larger modular PC systems, the CX9001 features an integrated 24V DC power supply input directly on the base unit, simplifying single-cable cabinet wiring.
- Q: Can this controller connect directly to EtherCAT E-bus terminals?
- A: Yes, it features an integrated side bus interface that automatically detects and communicates with standard Beckhoff E-bus and K-bus terminals.
- Q: Are your replacement CX9001-1001 units brand new or surplus?
- A: Our stock consists of verified New Surplus and thoroughly reconditioned, fully bench-tested units ready for immediate deployment.
- Q: What warranty coverage comes with this controller?
- A: Every CX9001-1001 unit is backed by our comprehensive 12-month full replacement warranty covering all operational performance aspects.
