Beijer Electronics E1100 | 10.4-Inch TFT Keypad HMI Panel

Description

Core Product Summary

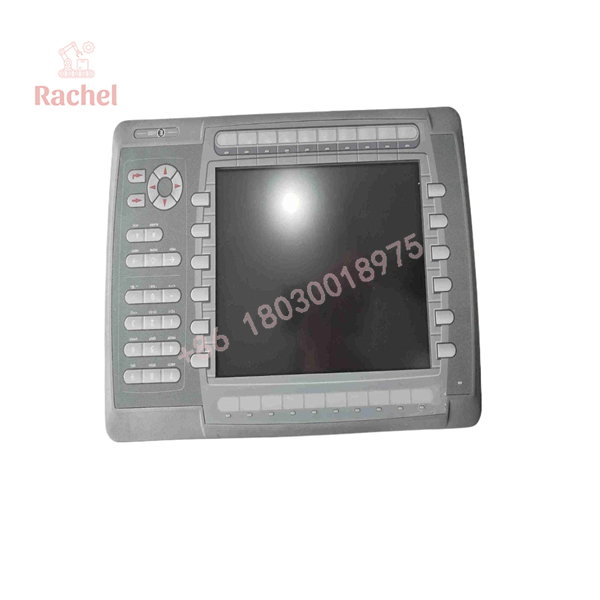

The Beijer Electronics E1100 is a high-performance 10.4-inch operator panel belonging to the E1000 series of industrial human-machine interfaces. Designed for comprehensive process visualization and machine control, the unit features an 800 x 600 pixel (SVGA) TFT-LCD screen combined with a tactile front keypad and function keys. Built with a powder-coated aluminium chassis, the E1100 offers reliable operation in demanding production and cabinet environments.

System integration is facilitated through a robust selection of built-in interfaces, including a 10/100 Base-T Ethernet port, RS-232, and RS-422/RS-485 serial connections. The panel operates on a standard 24 VDC supply, includes USB host/device connections along with a CompactFlash expansion slot, and provides IP66 protection across its front face when panel-mounted.

Key Technical Specifications

Engineering Selection Highlights

• High-Resolution Keypad HMI: Combines an 800 x 600 SVGA display with a 22-key physical membrane interface, suited for environments where touchscreens are impractical due to operator gloves or harsh surface contaminants.
• Versatile Networking: Features integrated 10/100 Ethernet along with independent RS-232 and RS-422/RS-485 serial ports for direct connection to PLCs, frequency drives, or plant network layers.
• Expandable Project & Data Storage: Includes 12 MB onboard flash memory supplemented by a Type I/II CompactFlash slot and USB host connectivity for recipe handling, logging, or project transfer.
• Robust Hardware Architecture: Built with a grey powder-coated aluminium front housing and IP66 sealing to withstand severe industrial panel environments.
• Regulated Power Input: Operates on a standard 24 VDC control circuit with a 20–30 VDC operating window and internal 3.15 A slow-blow fuse protection.

E1100

E1100

System Compatibility & Integration Requirements

Dimensions, Mounting & Connection Notes

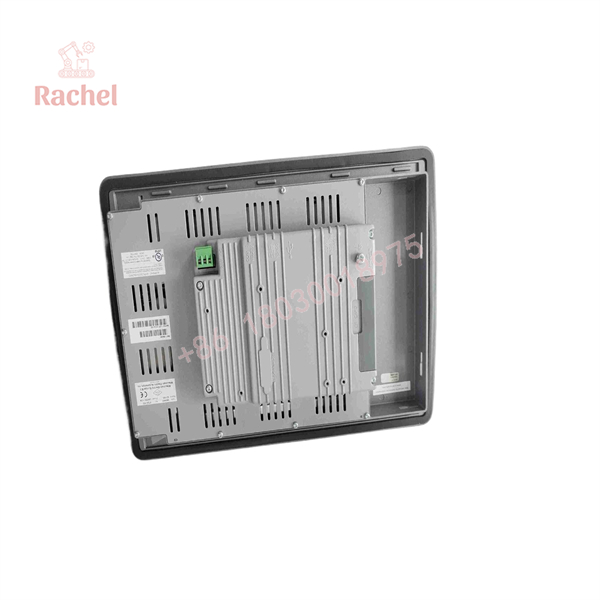

• External Dimensions: 382 mm (W) x 252 mm (H) x 64 mm (D).
• Panel Cut-out Dimensions: 343 mm (W) x 208 mm (H).
• Mounting Depth Requirements: 58 mm total rear penetration; allow 158 mm clearance depth for cable bend radii and ventilation clearance.
• Panel Thickness Compatibility: Fits cabinet doors or panel plates between 1.5 mm and 9.0 mm thickness.
• Weight: Approximately 2.5 kg.
• Connector Configuration:
  • Power: Phoenix/Anytek pluggable screw terminal block.
  • Serial 1 (RS-232): 9-pin D-sub male connector with 4-40 UNC locking screws.
  • Serial 2 (RS-422/485): 25-pin D-sub female connector with 4-40 UNC locking screws.
  • Ethernet: Shielded RJ45 socket.
  • USB: USB Type-A Host (500 mA output limit) and USB Type-B Device.

Detailed Product Overview

The Beijer Electronics E1100 is a full-featured 10.4-inch operator terminal engineered for medium-to-large machine control applications. Situated in the mid-to-upper performance band of the established E1000 product line, it combines a high-density 800 x 600 pixel TFT screen with a rugged physical keypad. The 64K color display provides high clarity for complex process graphics, while the dimmable CCFL backlight allows operators to adjust screen brightness to suit ambient lighting conditions.

Engineering flexibility relies heavily on the panel’s comprehensive physical interface suite. The onboard 10/100 Ethernet interface supports plant network communication, remote monitoring, and high-speed data exchanges with modern controllers. Concurrently, two independent serial communication ports (RS-232 and RS-422/RS-485) allow legacy controllers, drive controllers, or specialized instrumentation to connect directly without requiring additional protocol converters.

The terminal utilizes 12 MB of onboard project flash memory for screen layouts, alarm histories, and multi-language text tables. Additional data collection, recipe management, and project transfer functions are supported through an integrated CompactFlash slot and USB host interfaces. Protected by a grey powder-coated aluminium front plate meeting IP66 washdown requirements, the E1100 provides a reliable interface platform in demanding control applications.

Applications & System Role

The Beijer E1100 acts as a central operator interface terminal within machine control cabinets and industrial plant architectures. Positioned directly on the enclosure door or control console, it serves as the visual link between operator personnel and the underlying programmable logic controller (PLC) or distributed control system (DCS).

Through its multi-protocol driver support, the E1100 reads and writes controller memory locations to render real-time graphical process diagrams, trend logs, alarm handling screens, and parameter adjustment menus. Its keypad-driven layout makes it particularly suited for heavy machinery, water/wastewater skids, material handling systems, and processing lines where tactile feedback is preferred over touchscreen operation.

FAQ

What display size and resolution does the Beijer E1100 feature?

The E1100 has a 10.4-inch TFT-LCD display with an 800 x 600 pixel (SVGA) resolution supporting up to 64K colors.

Which software is required to configure the Beijer E1100?

The panel is programmed using the Beijer E-Designer software suite, which handles screen development, protocol selection, and project downloading.

What communication ports are built into the panel?

The E1100 includes one 10/100 Ethernet RJ45 port, one RS-232 DB9 male serial port, one RS-422/RS-485 DB25 female serial port, USB host and device ports, and a CompactFlash slot.

What power supply specifications are required?

The unit requires a nominal 24 VDC power supply (operating within a 20 to 30 VDC range) and draws a maximum power consumption of 12 W (1.0 A).

What are the panel cut-out dimensions for mounting?

The cabinet cut-out requirement is 343 mm in width by 208 mm in height.

Does the E1100 support touchscreen input?

No, the E1100 is a keypad-operated model featuring 22 physical keys and 20 integrated status LEDs.
