Product Introduction & Engineering Value
Many machinery protection problems originate at the field interface rather than the monitor itself. The BENTLY 3500/42M 135489-02 I/O module is designed to provide the correct signal path between field transducers and the 3500/42M monitor while incorporating internal intrinsic safety barriers for approved hazardous-area installations.
This module is intended for applications that require two Proximitor/Accelerometer inputs and two Velomitor inputs. Installed behind the front monitor, it maintains proper signal conditioning, wiring termination, and hazardous-area compliance when used as part of a compatible 3500 monitoring system.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | BENTLY Nevada |
| Part Number | 135489-02 |
| Compatible Monitor | 3500/42M Proximitor/Seismic Monitor |
| Module Type | Internal Barrier I/O Module |
| Termination Style | Internal Terminations |
| Barrier Type | Internal Intrinsic Safety Barriers |
| Channel Configuration | 2 × Proximitor/Accelerometer + 2 × Velomitor |
| Installation Location | Rear I/O position of 3500 rack |
| Hazardous Area Support | Designed for approved hazardous-area configurations |
| Rack Compatibility | BENTLY Nevada 3500 Series |
| Application | Machinery protection and vibration monitoring systems |
Field Application & The “Trench” Experience
A refinery scheduled a shutdown to replace aging vibration monitoring hardware on an induced draft fan located in a classified electrical area. The front monitor remained serviceable, but inspection revealed damaged field terminals on the existing I/O module. Replacing the rear interface with a verified 135489-02 restored stable sensor inputs while preserving the site’s intrinsic safety requirements. Startup verification showed consistent vibration readings on both Proximitor and Velomitor channels.
Typical applications include:
- API 670 centrifugal compressor protection systems
- Steam turbine bearing vibration monitoring in hazardous areas
- LNG compressor trains using mixed Proximitor and Velomitor transducers

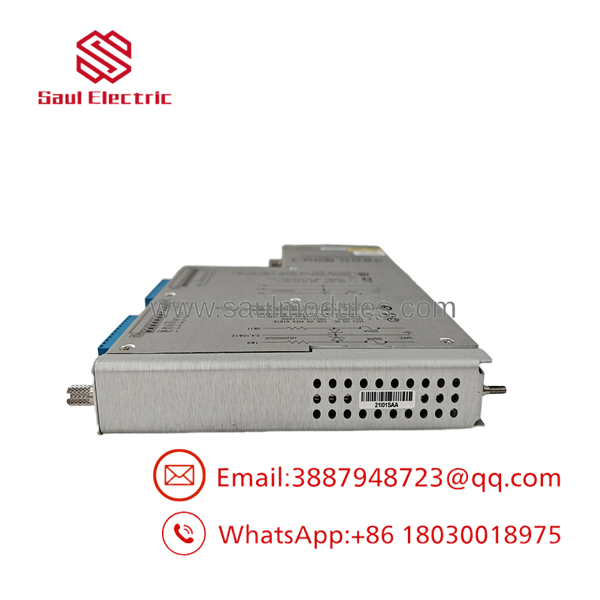

3500/42M 135489-02

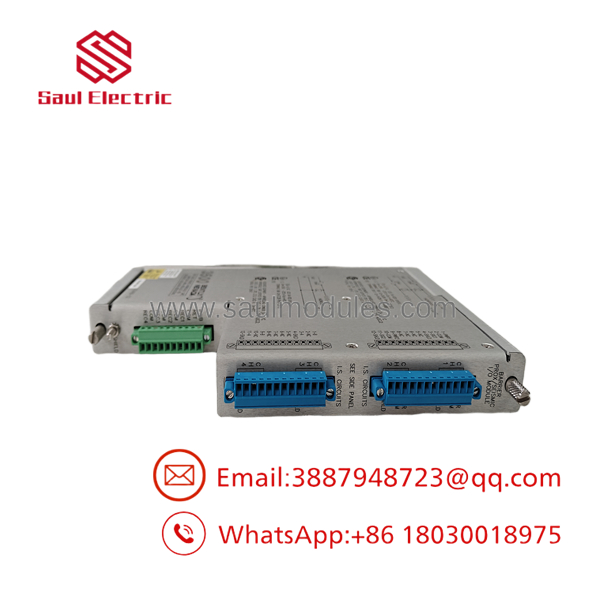

3500/42M 135489-02
Transparency SOP: QA & Testing
Before shipment, every New Surplus or refurbished module follows a documented inspection process:
- Part number and revision verification.
- PCB inspection for contamination, cracked solder joints, and connector damage.
- Terminal block continuity and insulation checks.
- Mechanical fit verification with a compatible 3500/42M monitor.
- Final anti-static packaging with traceable serial documentation.
The Veteran’s Tech Trap Guide
⚠️ Don’t order the I/O module by appearance alone. Several 3500/42M rear modules look nearly identical but support different transducer combinations.
⚠️ Verify the channel assignment before reconnecting field wiring. The 135489-02 is specifically designed for Channels 1-2 Proximitor/Accelerometer and Channels 3-4 Velomitor. Using the wrong rear module can result in incorrect sensor interfaces.
PRO TIP: If your installation does not require intrinsic safety barriers, confirm that this is the correct ordering option. Internal-barrier and standard I/O modules are not interchangeable for every installation.
Dynamic FAQ
Q1. What is the function of the 135489-02?
It is a rear I/O module for the 3500/42M Proximitor/Seismic Monitor, providing field wiring connections and integrated intrinsic safety barriers.
Q2. Which sensor combination does this module support?
The 135489-02 supports two Proximitor/Accelerometer channels and two Velomitor channels with internal terminations.
Q3. Can this module be used with every 3500/42M monitor?
It is compatible only when the monitor configuration and application require the corresponding I/O option. The rear module must match the monitor’s ordering configuration.
Q4. Is this a complete monitor?
No. 135489-02 is the rear I/O module only. It works together with a compatible 3500/42M Proximitor/Seismic Monitor installed in the front monitor slot.
Q5. How is New Surplus inventory verified?
Each module is inspected for authenticity, correct part number, connector condition, PCB integrity, and mechanical compatibility before shipment.
Q6. Is warranty available?
Yes. Warranty terms depend on inventory condition. Both New Surplus and professionally refurbished modules are typically supplied with a limited warranty covering defects in materials or workmanship.
