Description
Product Introduction & Engineering Value
Reciprocating compressors fail differently than turbines. Crosshead wear, piston rod runout, and rod drop can develop gradually while vibration remains within acceptable limits. The BENTLY 3500/72M (140734-08) is engineered specifically to detect these mechanical changes before they develop into expensive compressor failures.
The module integrates directly into the BENTLY Nevada 3500 platform and conditions proximity probe signals to calculate rod position, rod drop, and hyper-compressor measurements. Configurable alarm thresholds enable maintenance teams to identify abnormal wear while the machine remains in operation.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | BENTLY Nevada |
| Model | 3500/72M |
| Part Number | 140734-08 |
| Product Type | Recip Rod Position Monitor |
| Monitoring Channels | 4 |
| Sensor Input | Proximity Transducers |
| Primary Measurements | Rod Position, Rod Drop, Hyper-Compressor Position |
| Input Impedance | 10 kΩ |
| Peak-to-Peak Filter | Fixed, 1 Hz to 600 Hz |
| Gap Filter | -3 dB at 0.09 Hz |
| Typical Power Consumption | Approximately 7.7 W |
| Configuration Software | 3500 Rack Configuration Software |
Field Application & The “Trench” Experience
During a scheduled outage at a natural gas pipeline compressor station, technicians noticed increasing rod drop values on the first-stage cylinder even though vibration levels remained stable. Mechanical inspection confirmed early crosshead shoe wear, but the compressor had not yet reached a critical condition.
After installing a verified 3500/72M 140734-08 and restoring the original configuration, maintenance personnel tracked rod position trends over several operating cycles. The data confirmed progressive wear, allowing the overhaul to be scheduled during the next planned shutdown instead of responding to an unexpected trip.
Typical applications include:
- API 618 reciprocating compressor rod position monitoring
- Hyper-compressor piston position supervision in LDPE production
- Pipeline compressor crosshead wear monitoring
Transparency SOP: QA & Testing
Every New Surplus and professionally refurbished 140734-08 module completes a documented verification process before shipment.
- PCB inspection for contamination, corrosion, and damaged components
- Connector and backplane interface examination
- Installation verification in a compatible 3500 rack
- Four-channel signal simulation using calibrated proximity probe generators
- Alarm response, buffered outputs, and communication testing
- Burn-in observation to identify intermittent electronic faults
- Anti-static packaging with serialized inspection documentation

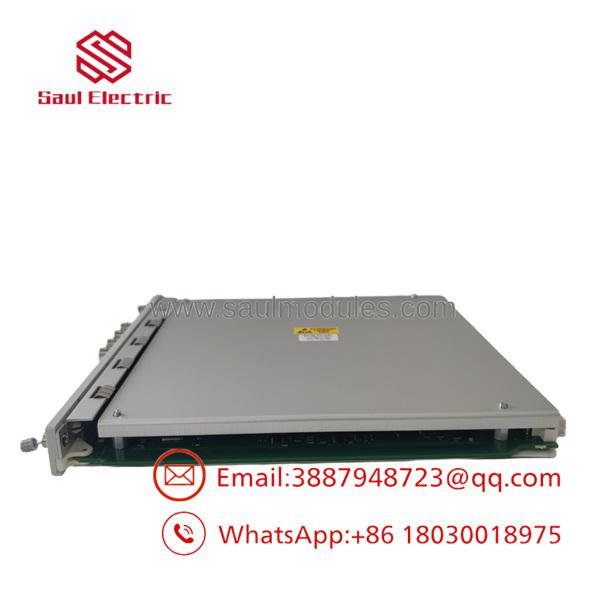

3500/72 140734-08

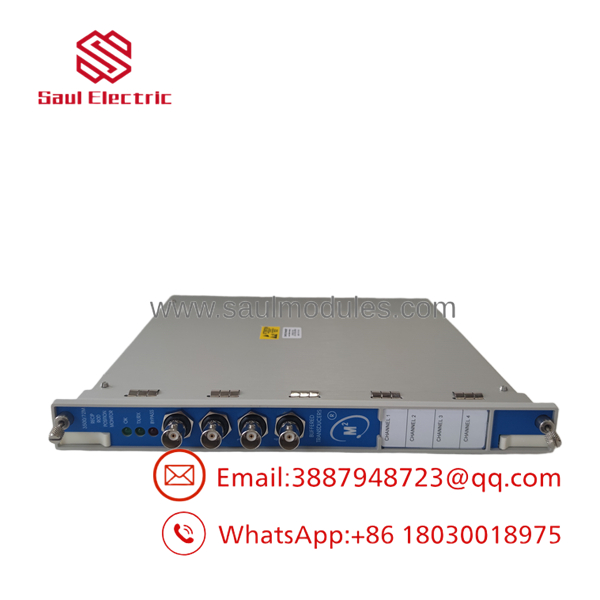

3500/72 140734-08
The Veteran’s Tech Trap Guide
⚠️ Don’t confuse rod position with shaft position. The 3500/72M is designed specifically for reciprocating compressors, not rotating shaft position measurements. Installing the wrong monitor can result in incorrect machinery diagnostics.
⚠️ Verify probe gap during commissioning. Even a correctly functioning monitor cannot compensate for improperly adjusted proximity probes. Incorrect probe gaps frequently produce unstable rod position and rod drop readings.
PRO TIP: Always archive the existing rack configuration before replacing the monitor. Rod position scaling, alarm thresholds, and cylinder assignments are often customized during compressor commissioning and should be restored after installation.
Dynamic FAQ
Q1. What is the primary function of the 3500/72M (140734-08)?
The module continuously measures rod position, rod drop, and hyper-compressor piston position on reciprocating compressors using proximity transducers.
Q2. How many channels does the monitor provide?
The 3500/72M includes four independent monitoring channels, allowing multiple cylinders or measurement points to be monitored simultaneously.
Q3. Which sensors are supported?
The monitor accepts inputs from compatible BENTLY Nevada proximity transducers used for reciprocating compressor rod position measurements.
Q4. Is the 3500/72M suitable for API 618 compressor applications?
Yes. The module is commonly deployed in API 618 reciprocating compressor protection systems where continuous rod position and rod drop monitoring are required.
Q5. How is New Surplus inventory verified?
Each module undergoes part number verification, connector inspection, rack power-up testing, calibrated signal simulation, alarm verification, and final visual inspection before shipment.
Q6. What should be checked before replacing the module?
Confirm the part number, monitor configuration, compatible rear I/O module, proximity probe calibration, rack firmware version, and saved configuration file before returning the compressor to service.
