Bently Nevada 125680-01 Internal Termination Module

Description

Product Introduction & Engineering Value

Bently Nevada 125680-01

Bently Nevada 125680-01

The Bently Nevada 125680-01 provides direct, reliable internal termination for 3500/40M Proximitor Monitors, processing crucial machinery safety data.

A failing I/O module in a machinery protection rack can blind your control room to destructive vibration harmonics, risking a catastrophic shaft failure. The Bently Nevada 125680-01 acts as the hardware bridge for the 3500/40M monitor, terminating incoming transducer field cables safely within the rack structure.

By eliminating the need for external marshalling panels, this module lowers system complexity and limits the points of failure between your proximity probes and the safety processor. It handles signals from standard proximity transducers and translates those inputs into static metrics like radial vibration, eccentricity, and thrust position.

Technical Specifications

• Module Channels: 4 independent input channels
• Termination Type: Internal terminations (terminal blocks on the I/O card)
• Recorder Output Signal: +4 to +20 mA DC proportional output
• Transducer Compatibility: Proximitor Transducer Systems (3300, 3300 XL)
• Measurement Support: Radial vibration, Thrust position, Eccentricity, REBAM, Differential expansion
• Input Signal Range: -24 Vdc nominal
• Dimensions: 2.5 cm x 24.1 cm x 11.4 cm (1.0″ x 9.5″ x 4.5″)
• Weight: 0.38 kg (0.83 lbs)
• Hazardous Area Approvals: Class I, Zone 2 / Division 2 rated

Field Application & The “Trench” Experience

During a planned shutdown at a baseload combined-cycle power plant, the engineering team noted anomalous, intermittent spiking on the turbine generator’s thrust position indicator. Believing it to be a failing proximity probe, they hot-swapped the sensor, but the anomalous readings persisted. A deeper look behind the 3500 rack revealed that high-temperature cycling had cracked the internal termination header on the original I/O board. We hot-swapped the faulty card with a surplus 125680-01 module. Within minutes, the static thrust values stabilized, verifying system integrity and allowing the plant to synchronize back to the grid on schedule.

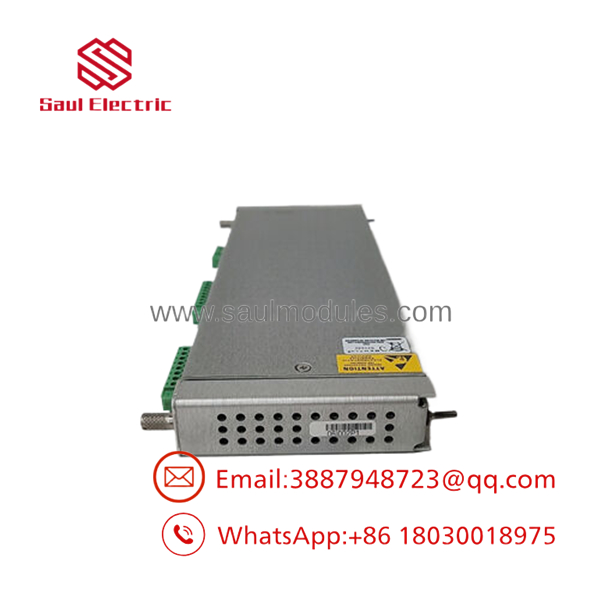

125680-01

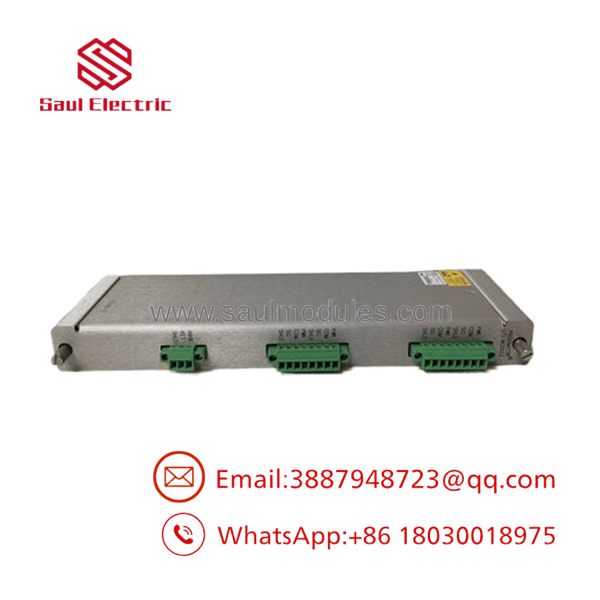

125680-01

Niche Application Scenarios

• Boiler Feed Pump Radial Vibration: Continuously measuring high-frequency shaft orbital paths to detect bearing wear and cavitation.
• Steam Turbine Thrust Monitoring: Tracking axial shaft displacement to trigger automatic mechanical trips before a rotor contacts the stator.
• Industrial Fan Eccentricity: Checking long-shaft bowing on large cooling tower fans during cold-start sequences.

Transparency SOP: QA & Testing

Because these modules act as the last line of defense for millions of dollars in rotating assets, our refurbishment and testing routine is rigorous:

1. Connector Pin Stress Analysis: We check the high-density backplane connector pins and the terminal blocks for micro-fractures, physical wear, and pin misalignment.
2. Multi-Channel Loop Simulation: The 125680-01 is placed in a live 3500 rack. We then feed simulated sensor inputs (-1 Vdc to -22 Vdc) from a precision signal generator into all 4 channels.
3. Loop Current Validation: We check that the +4 to +20 mA analog outputs accurately match the full-scale simulated inputs across the entire voltage curve.
4. Thermal Stability Chamber Testing: The card runs under full load in our testing chamber to ensure steady performance under standard operating temperatures.

The Veteran’s Tech Trap Guide (Crucial Value-Add)

⚠️ The Termination Mismatch Trap: The 125680-01 card is designed solely for Internal Terminations. If your current configuration uses an external termination block (Marshalling panel) connected via a cable to card model 126615-01, you cannot drop this 125680-01 module in as a direct plug-and-play replacement without completely re-routing your field wiring. Always verify your wiring topology before ordering.

PRO TIP on Configuration Uploads: When replacing this I/O module, the 3500/40M monitor card will occasionally retain a channel fault until you physically re-verify and download the configuration file via the 3500 Rack Configuration Software. Simply plugging the new I/O card in may not clear the system alert status.

Dynamic FAQ

• Q: Can I use this I/O module with any 3500 monitor?
  • A: No, the 125680-01 module is built specifically to pair with the 3500/40M Proximitor Monitor. It cannot be paired with other modules like the 3500/50 Tachometer or 3500/42M Seismic monitors.
• Q: Does this I/O card feature internal safety barriers?
  • A: No, the 125680-01 uses standard internal terminations. If your application requires intrinsically safe internal barriers, you will need part number 135489-04.
• Q: What is the difference between this and the 126615-01 module?
  • A: The 125680-01 uses onboard terminal blocks for direct field wiring. The 126615-01 is built for external terminations, utilizing a multi-pin cable to connect to an external termination panel.
• Q: Do your surplus modules ship with the Euro-style terminal plugs?
  • A: Yes, our surplus 125680-01 modules ship with all necessary terminal blocks included.
