Bently Nevada 125704-01 3300/35 Dual Radial Vibration I/O Module

Description

Product Introduction

The Bently Nevada 125704-01 is a rear-panel Input/Output (I/O) termination module designed specifically to partner with the 3300/35 Dual Radial Vibration Monitor inside the legacy 3300 Series Machinery Protection System. Installed directly behind the main 3300/35 monitor card in the rack, the 125704-01 provides the physical interface for field sensor wiring and system signal routing.

Featuring internal Euro-style screw terminals, the 125704-01 accepts signal inputs from two proximity transducer channels (such as 3300 XL 8mm Proximitors). It routes -24V DC transducer power to the field sensors, receives dynamic AC/DC vibration signals back into the 3300/35 processing card, and provides proportional 4–20 mA analog outputs and recorder connections for integration with plant DCS and PLC automation systems.

Key Technical Specifications

Application Scenarios & The “Trench” Experience

A critical motor-driven boiler feed pump at a combined-cycle power plant triggers a wiring fault on Channel 2 of its 3300/35 Dual Radial Vibration Monitor. Inspection behind the 3300 rack reveals that years of thermal cycling and wire tension led to a hairline fracture in the screw terminal header on the original rear card, causing intermittent signal loss and false vibration spikes. Replacing the damaged rear module with a fresh 125704-01 I/O card allows field technicians to re-terminate the proximity probe leads and 4–20 mA DCS output lines quickly, restoring clean, reliable dynamic vibration signals to the monitor and plant control system.

• Centrifugal Compressors & Blowers: Provides secure field wiring connection for dual-plane radial shaft vibration probes.
• Steam & Gas Turbines: Interfaces proximity probes and recorder outputs on primary generator shaft bearings.
• Large Industrial Motors & Pumps: Routes 4–20 mA overall vibration levels directly to plant DCS analog input cards.
• 3300 Rack Maintenance & Spares: Essential replacement rear card for keeping legacy Bently Nevada 3300 protection racks fully operational.

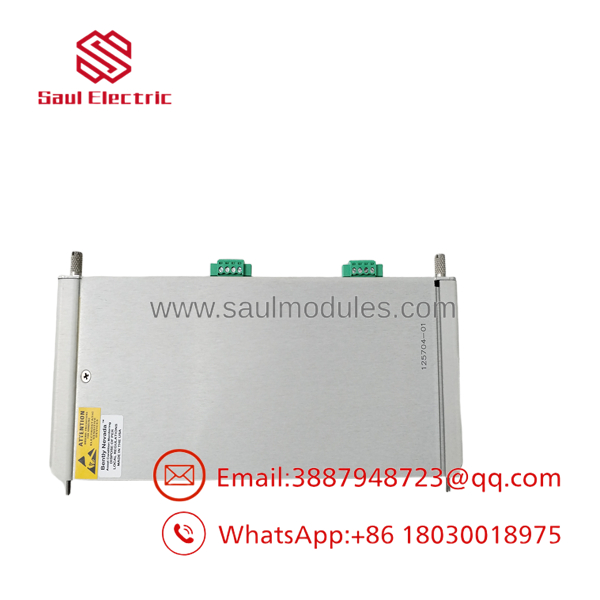

125704-01

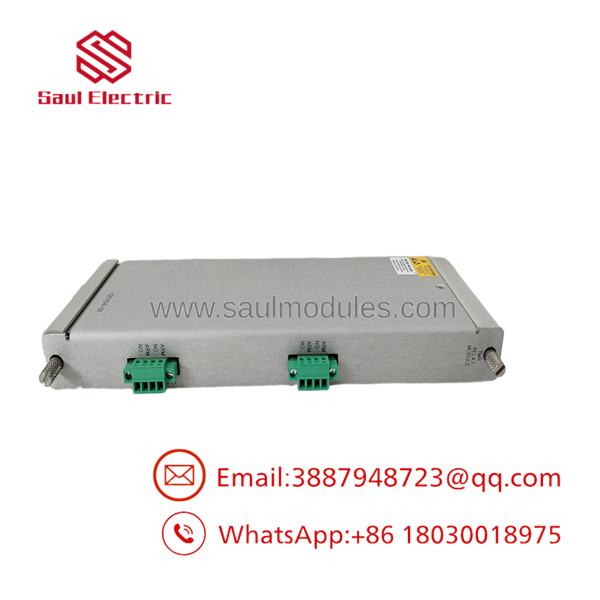

125704-01

Transparency SOP: Quality Assurance & Testing

1. Visual & Hardware Inspection: Terminal block screws, PCB traces, backplane pin connectors, and solder contacts are thoroughly inspected for corrosion, stripped threads, or thermal stress.
2. Backplane Interface & Continuity Test: Installed into the rear slot of a Bently Nevada 3300 test rack paired with a functional 3300/35 monitor card to verify backplane pin alignment and electrical connection.
3. Signal & Output Verification:
   • Transducer Power Pass-Through: Verified -24V DC field power output across terminals for both channels.
   • Dynamic Signal Routing: Tested using a function generator to simulate proximity probe signals (-2 to -18 VDC), confirming accurate signal pass-through to the front monitor card.
   • 4–20 mA Output Check: Proportional DC current loops are verified across simulated load resistors (0 to 500 \Omega).
4. Final ESD Packaging: Cleaned, fitted with protective contact covers, wrapped in static-shielding bags, and packaged in custom foam shipping boxes.

The Veteran’s Tech Trap Guide (Crucial Value-Add)

• ⚠️ Internal vs. External Termination Models: The 125704-01 is an Internal Termination module (wires connect directly to terminal strips on the card). It is not compatible with setups designed for External Termination (which use multi-pin cable headers running to external DIN-rail terminal blocks). Verify your rack’s wiring design before ordering.
• ❗ Pairing Constraint (3300/35 Only): Rear I/O modules in the 3300 series are specific to their main front monitor cards. The 125704-01 is built for the 3300/35 Dual Radial Vibration Monitor; installing it behind a 3300/16, 3300/20, or 3300/53 card can cause channel configuration errors or incorrect pin assignments.
• ⚠️ Shield Grounding Rules: Connect cable shields ONLY at the designated SHIELD terminals on the 125704-01 module (or as specified by your plant grounding layout). Float the shield at the field Proximitor housing to prevent ground loops that induce 60 Hz line noise into vibration readings.
• ❗ Terminal Screw Over-Tightening: Euro-style screw terminals on legacy cards can strip if over-torqued. Use a precision 3mm flathead screwdriver and torque terminals gently (max 0.5 Nm / 4.4 in-lbs) to avoid damaging the PCB solder pads.

Frequently Asked Questions (FAQ)

Q: What is the main function of the Bently Nevada 125704-01?

A: It is the rear I/O module for the 3300/35 Dual Radial Vibration Monitor, providing terminal connections for proximity probes, -24V DC transducer power, dynamic signal buffer outputs, and 4–20 mA DCS/PLC outputs.

Q: Can I hot-swap the 125704-01 rear module while the 3300 rack is powered?

A: No. While some front monitor cards support removal under power with proper precautions, replacing rear I/O cards requires disconnecting field wiring and powering down the 3300 rack slot to avoid accidental shorts across terminal pins.

Q: Is the 125704-01 still manufactured by Bently Nevada?

A: No. The 3300 Series has been retired by Bently Nevada. This card is available as New Surplus or fully tested/reconditioned stock to maintain legacy 3300 racks in active service.

Q: What is the difference between 125704-01 and other 3300 rear I/O cards?

A: Part numbers vary based on the specific front monitor card type (e.g., Thrust vs. Radial Vibration vs. Keyphasor) and whether the termination is internal (screw terminals on card) or external (cable to DIN rail block). The 125704-01 is specifically an internal termination card for the 3300/35 monitor.

Q: What warranty is provided on surplus or reconditioned 125704-01 cards?

A: All New Surplus and reconditioned 125704-01 modules include a full 12-month replacement warranty from the invoice date.
