Product Introduction & Engineering Value
Over my years commissioning 3500 racks, I have learned that clean power delivery is the foundation of reliable monitoring. The Bently Nevada 125840-01 High Voltage AC Power Input Module (PIM) is the quiet gatekeeper of that stability.
Sitting directly behind the 3500/15 power supply, this half-height module intercepts raw high-voltage AC utility lines before they reach internal rack electronics. It isolates your system from harsh grid transients, ensuring uninterrupted turbine protection.
Technical Specifications
- Module Identifier: Bently Nevada 125840-01 (component of 3500/15)
- Input Voltage Range: 175 to 250 Vac rms, single phase
- Input Frequency: 47 to 63 Hz
- Form Factor: Half-height rear-panel module
- Protection Mechanism: Internal overvoltage fuse protection
- Operating Temperature: -30°C to +65°C (-22°F to +149°F)
- Storage Temperature: -40°C to +85°C (-40°F to +185°F)
- Relative Humidity: 95% non-condensing maximum
- Weight: 0.34 kg (0.75 lbs)
Field Application & The “Trench” Experience
The “Trench” Story
During an electrical storm at an offshore gas platform, a massive voltage spike swept through the utility bus. The platform’s high-pressure export compressor rack lost its primary utility power source. Because the 3500 rack was configured with dual redundant power supplies, the lower primary supply went offline as its rear PIM (a 125840-01) sacrificed itself. The internal fuse opened immediately, absorbing the brunt of the surge.
The upper backup supply instantly assumed the full electrical load. The machinery protection system never dropped out, preventing an expensive emergency shutdown of the entire platform. Our field service engineer replaced the blown 125840-01 module on the hot backplane during the next shift without shutting down the compressor.
Niche Applications
- Offshore Platform Generator Main Power Feed: Protecting 3500 racks from the harsh, fluctuating voltage swings typical of isolated microgrids.
- Refinery Hydrogen Recycle Compressor Safety Systems: Serving as the direct high-voltage AC interface inside explosion-proof control rooms.
- Hydraulic Pump Station Remote Cabinets: Shielding monitoring electronics against utility grid sag and line dropouts.

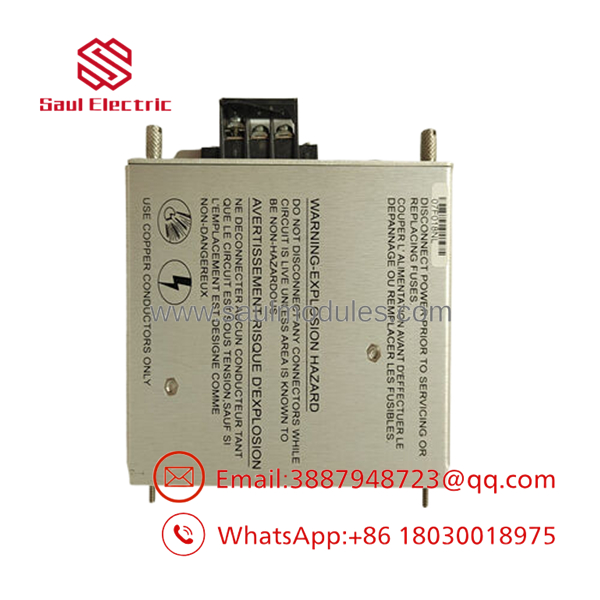

- 125840-01

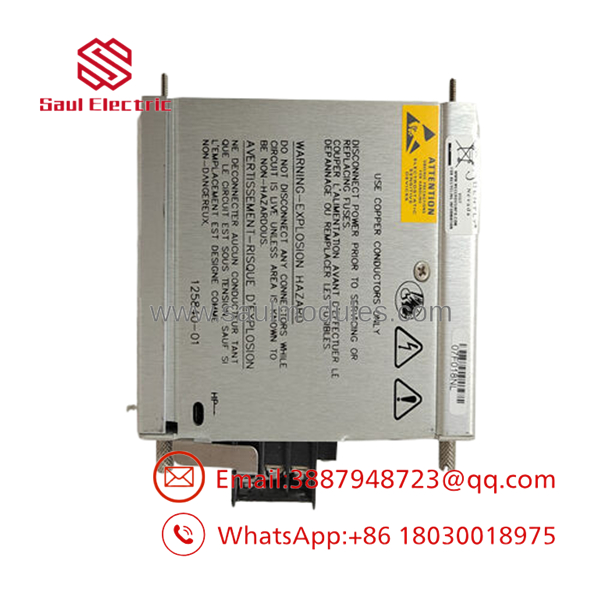

- 125840-01
Transparency SOP: QA & Testing
- [ ] Chassis Pin Continuity: Inspecting all backplane connection pins to ensure zero resistance or physical bending prior to installation.
- [ ] Dielectric Withstand Testing: Putting the input module through insulation testing to confirm the high-voltage pathways are fully isolated from the grounding plane.
- [ ] Full-Load Thermal Soak: Placing the PIM into a live 3500 test chassis under a continuous, simulated power supply load to verify thermal stability.
- [ ] Redundant Failover Audit: Artificially dropping input power to verify that the backup 3500/15 supply takes over the load with zero voltage drop.
The Veteran’s Tech Trap Guide
⚠️ THE FUSE TRAP: The 125840-01 has a built-in fuse designed to open during severe overvoltage events to save your rack. If your rack suddenly loses its power supply but the upstream breaker is closed, check this internal fuse first. Many field engineers replace the entire 3500/15 power supply module when only the rear PIM’s fuse has blown.
⚠️ REAR vs. FRONT COMPATIBILITY: The 125840-01 is a rear-facing Power Input Module (PIM). It must be paired with the correct front-facing 3500/15 High Voltage AC power supply module. Swapping this PIM with a low-voltage DC version while keeping the AC front supply will immediately cause a mismatch and prevent the rack from powering up.
PRO TIP: If you are running a redundant power supply setup, always wire the two 125840-01 modules to completely different utility sources (e.g., Line A and Line B). If both PIMs are tapped into the same bus, a localized electrical failure will take down both paths simultaneously, defeating the purpose of your redundant hardware.
Dynamic FAQ
- Q: Can I hot-swap the 125840-01 module while the 3500 rack is running?
- A: Yes, but only if your rack has a second, fully operational power supply module running as a backup. You can safely remove and replace the failed PIM without interrupting the monitoring of your rotating machinery.
- Q: What is the difference between 125840-01 and 125840-02?
- A: The 125840-01 is specifically designed for High Voltage AC inputs (175 to 250 Vac rms). The 125840-02 is the Low Voltage AC version designed to handle inputs from 85 to 132 Vac rms.
- Q: What happens to this module during an undervoltage or “brownout” condition?
- A: Undervoltage will not harm the 125840-01. It will simply stop delivering sufficient voltage to power the front 3500/15 module, forcing a failover to your redundant supply if installed.
- Q: Is the internal fuse on this module user-replaceable, or must I replace the whole unit?
- A: The fuse is user-replaceable. However, we highly recommend performing a full insulation and diagnostic test on the board after any event that causes the fuse to open to ensure other components weren’t damaged.
- Q: Does this product come with a warranty, and is it a genuine OEM Bently Nevada part?
- A: Yes, we guarantee that all of our New Surplus and Refurbished 125840-01 modules are 100% genuine OEM Bently Nevada parts. Each unit is fully tested and backed by our comprehensive 12-month warranty.
