Product Introduction & Engineering Value
A machinery protection rack can only protect rotating assets if its power infrastructure remains stable. The Bently Nevada 125840-02 Low Voltage AC Power Input Module supports the 3500/15 power supply architecture by accepting low-voltage AC input and supplying the rack power system used by monitoring modules.
For plants operating turbines, compressors, pumps, and other critical rotating equipment, maintaining spare power input modules helps avoid unnecessary downtime caused by aging rack power components. The 125840-02 is typically managed as a dedicated 3500 Series maintenance spare rather than a general-purpose power component.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Bently Nevada |
| Model Number | 125840-02 |
| Series | 3500 Machinery Protection System |
| Module Type | Low Voltage AC Power Input Module (PIM) |
| Compatible Assembly | 3500/15 Power Supply Module |
| Input Voltage | 110 Vac nominal |
| Input Voltage Range | 85–132 Vac rms |
| Peak Voltage Range | 120–188 Vac peak |
| Input Frequency | 47–63 Hz |
| Rack Position | Special half-height slot behind associated power supply |
| Operating Temperature | -30°C to +65°C |
| Storage Temperature | -40°C to +85°C |
| Humidity Rating | Up to 95% non-condensing |
| Weight | Approximately 0.34 kg |
Field Application & The “Trench” Experience
A power generation facility operating a Bently Nevada 3500 monitoring rack began receiving intermittent rack power alarms during turbine operation. The monitoring modules themselves showed no communication faults, but several channels temporarily dropped offline during startup sequences.
The maintenance team checked incoming plant power, rack wiring, and module seating. After confirming the external supply was stable, the engineers isolated the problem to the rack power input section. Replacing the aging 125840-02 Low Voltage AC Power Input Module restored stable power delivery to the 3500 rack.
The turbine monitoring system returned to normal operation without replacing the entire protection rack.
Typical application scenarios include:
- Steam turbine vibration monitoring systems
- Gas compressor machinery protection cabinets
- Pump condition monitoring panels
- Industrial rotating equipment diagnostic systems

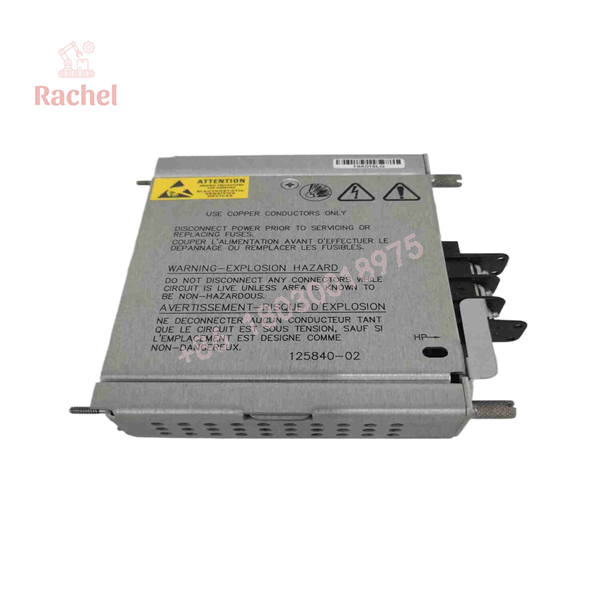

125840-02
125840-02
Transparency SOP: QA & Testing
Power input modules require inspection focused on electrical safety and rack compatibility.
QA procedure:
1. Visual inspection
- Confirm Bently Nevada identification label
- Inspect module housing condition
- Check connector pins and mounting structure
- Review signs of overheating or contamination
2. Electrical verification
- Confirm input voltage compatibility
- Check fuse and protection components
- Verify electrical continuity
- Inspect internal condition where applicable
3. Functional testing
- Install into a compatible 3500 rack test environment
- Verify power-up behavior
- Check rack communication and module recognition
- Record test results before shipment
A tested spare should be matched against the installed 3500/15 configuration before commissioning.
The Veteran’s Tech Trap Guide
⚠️ Do not confuse 125840-02 with 125840-01.
Both belong to the 3500 power input module family, but they are designed for different AC input ranges. The wrong selection can prevent proper rack operation.
⚠️ Check the complete 3500/15 configuration.
The power supply arrangement may include redundant supplies. Verify top-slot and bottom-slot configuration before replacement.
⚠️ Inspect the rear connection carefully.
The PIM is installed behind the associated power supply module. Poor seating or connector damage can create intermittent rack faults.
PRO TIP: Record the existing 3500/15 ordering code and power supply arrangement before removing the module. It avoids configuration mistakes during replacement.
Dynamic FAQ
Q1. What is the Bently Nevada 125840-02 used for?
The 125840-02 is a Low Voltage AC Power Input Module used with the Bently Nevada 3500/15 power supply system in 3500 machinery protection racks.
Q2. What input voltage does the 125840-02 support?
The module supports 110 Vac nominal input, with an operating range of approximately 85–132 Vac rms and 47–63 Hz frequency.
Q3. Is 125840-02 the same as the complete 3500/15 power supply?
No. The 125840-02 is the Power Input Module (PIM) used with the 3500/15 power supply assembly. It is not the complete power supply module.
Q4. Can 125840-02 replace 125840-01?
Not directly. The two modules support different AC input configurations. Confirm the installed rack power configuration before replacement.
Q5. Is Bently Nevada 125840-02 available as new surplus or refurbished stock?
Availability depends on supplier inventory. Units may be supplied as new surplus, tested used, or refurbished 3500 Series spare modules.
Q6. What testing should be performed before installing a refurbished 125840-02?
Recommended checks include visual inspection, electrical verification, rack compatibility testing, and confirmation that the 3500/15 power configuration matches the replacement module.
Q7. What warranty is normally provided for this module?
Warranty terms depend on supplier condition classification. New surplus and refurbished Bently Nevada modules generally have different warranty periods and inspection standards.
