Bently Nevada 125840-02 Power Input Module

Description

Product Introduction & Engineering Value

The Bently Nevada 125840-02 is the low-voltage AC power-input module used with the 3500/15 Power Supply in the 3500 Machinery Protection System. Its job is straightforward but critical: it accepts the incoming low-voltage AC supply and interfaces with the 3500/15 power-supply architecture that provides operating power to the rack.

This is a power-input component, not a vibration-monitoring channel. That distinction is important when troubleshooting a 3500 rack that has lost power or is showing power-supply-related diagnostics. The correct replacement must match the 3500/15 configuration and the required AC input range.

Technical Specifications

Bently Nevada’s published material also identifies 125840-01 as the high-voltage AC PIM and 125840-02 as the low-voltage AC PIM. This makes the suffix particularly important when ordering a replacement.

Field Application & the “Trench” Experience

A 3500 rack monitoring a critical steam turbine begins showing a power-related alarm. The monitoring channels themselves have not changed, but the rack supply is unstable.

The maintenance engineer checks the 3500/15 assembly rather than replacing individual monitor cards. The installed PIM is marked 125840-02, so the incoming supply is checked first. The plant’s AC source is within the specified low-voltage range, shifting attention to the PIM and associated power-supply hardware.

That is the right diagnostic direction. A failed power-input stage can make multiple otherwise healthy 3500 modules appear faulty.

Specific application scenarios

1. Steam turbine machinery protection — Supplying a 3500 rack used for bearing vibration, shaft position, and other rotating-equipment measurements.
2. Compressor monitoring — Maintaining rack power for continuous machinery-condition monitoring.
3. Generator train monitoring — Supporting a 3500 rack installed on critical rotating equipment.
4. Legacy turbine supervisory systems — Maintaining an existing 3500/15 installation without replacing the entire monitoring rack.

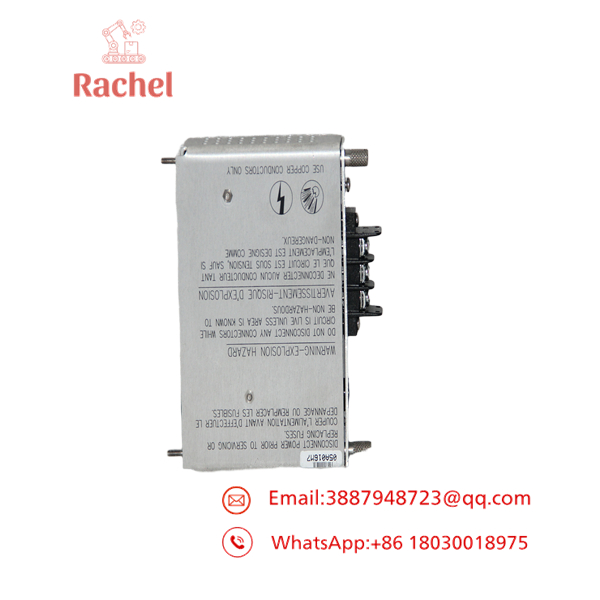

125840-02

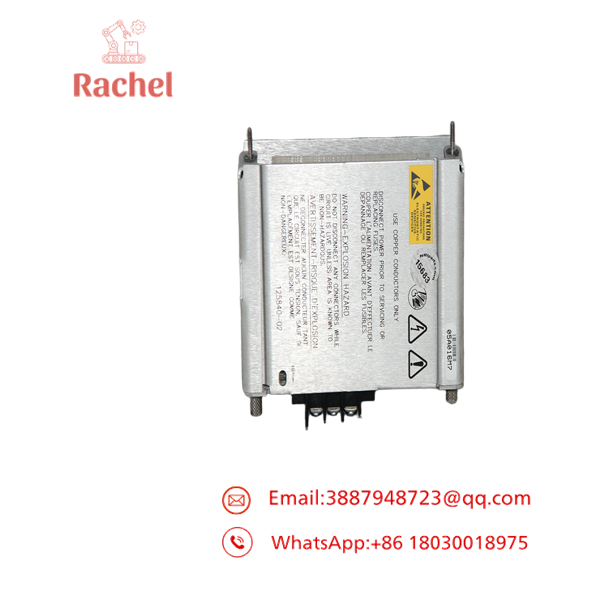

125840-02

Transparency SOP: QA & Testing

For new-surplus or refurbished 125840-02 inventory, the important test is controlled AC input operation within the specified range.

Inspection

• Confirm the exact 125840-02 marking.
• Check the connector and mechanical interface.
• Inspect the enclosure and PCB for corrosion, contamination, overheating, or previous repair.
• Record the manufacturing/revision information where available.

Electrical test

1. Perform preliminary continuity and insulation checks appropriate to the assembly.
2. Install the PIM in a compatible 3500/15 test configuration.
3. Apply a controlled AC input within the specified 85–132 VAC RMS range.
4. Verify correct interaction with the associated 3500/15 power-supply module.
5. Test at representative rack loading.
6. Monitor output stability and diagnostic behavior.
7. Record the test voltage, load condition, and observed results.

QA standard: “Power-on tested” is useful information, but a documented test under representative load provides much stronger evidence of condition.

The Veteran’s Tech Trap Guide

⚠️ Trap #1 — Ordering 125840-01 instead of 125840-02.

The two parts have similar descriptions but different AC input ranges. 125840-02 is the low-voltage AC PIM, specified for 85–132 VAC RMS.

PRO TIP: Photograph the original PIM label before ordering. Do not rely on memory or an old ERP description.

⚠️ Trap #2 — Confusing the PIM with the 3500/15 power-supply module.

The 125840-02 is the power input module. It is associated with the 3500/15 power-supply assembly and should not be treated as a standalone monitoring card.

⚠️ Trap #3 — Applying the wrong AC source.

Do not assume that every 3500/15 power arrangement accepts the same incoming voltage. Verify the exact PIM part number before energizing the rack.

⚠️ Trap #4 — Replacing monitoring cards first.

If several 3500 modules simultaneously report abnormal behavior, check rack power and the 3500/15 supply chain before condemning individual monitoring modules.

⚠️ Trap #5 — Buying a generic “125840-02” without inspecting the actual unit.

For legacy power hardware, ask for photographs of the actual PIM, including the identification label and connector area.

Dynamic FAQ

What is Bently Nevada 125840-02?

The 125840-02 is a Low Voltage AC Power Input Module (PIM) used with the Bently Nevada 3500/15 Power Supply.

What is the input voltage range?

The documented input range is 85–132 VAC RMS, with a nominal input of approximately 110 VAC. The specified frequency range is 47–63 Hz.

What is the maximum current draw?

The published specification gives a 4.5 A RMS maximum current draw for a full rack.

Is 125840-02 the same as 125840-01?

No. 125840-01 is the high-voltage AC PIM, while 125840-02 is the low-voltage AC PIM. Verify the incoming plant voltage before selecting the replacement.

What system uses 125840-02?

It is associated with the Bently Nevada 3500/15 Power Supply used in the 3500 Machinery Protection System.

Can refurbished 125840-02 units be used?

Yes, provided the unit is genuine, correctly identified, and electrically tested in an appropriate 3500/15 configuration. For critical machinery protection, test documentation is preferable to a simple visual inspection.

How should new-surplus authenticity be checked?

Request photographs of the actual 125840-02, including the Bently Nevada identification label, part number, serial/revision markings, and connector area. Confirm that the physical unit corresponds to the 3500/15 low-voltage AC PIM specification.

What warranty should I request?

Request written warranty coverage for functional failure. For refurbished units, ask whether testing included operation in a 3500/15 rack under representative load, rather than only a bench power-on check.
