Description
Product Introduction & Engineering Value
After years of supporting rotating equipment, I’ve learned that gas turbine protection systems are only as dependable as their signal interface hardware. The Bently Nevada 126599-01 is one of those components that quietly performs its job every second the machine is online.
Designed specifically for the 3500/44M Aeroderivative Gas Turbine Vibration Monitor, this Aero GT I/O Module transfers vibration signals from field sensors to the monitoring system while supporting multiple alarm configurations and machine operating modes.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Bently Nevada |
| Model | 126599-01 |
| Product Type | Aero GT I/O Module |
| Compatible System | Bently Nevada 3500/44M Aeroderivative GT Vibration Monitor |
| Monitoring Channels | Four vibration channels |
| Sensor Compatibility | Velomitor® sensors and accelerometers |
| Keyphasor Support | Two independent Keyphasor® inputs |
| Alarm Configuration | Multiple alert and danger setpoints per channel |
| Installation Location | Full-height rear I/O slot |
| Primary Application | Aeroderivative gas turbine vibration monitoring |
| Country of Origin | USA (varies by manufacturing documentation) |
Field Application & “The Trench” Experience
A maintenance crew at a peaking power station was troubleshooting nuisance vibration alarms on an aeroderivative gas turbine. The vibration probes checked out, wiring insulation tested within specification, and the monitor itself passed diagnostics. The investigation eventually identified an aging Aero GT I/O Module that intermittently lost signal integrity during rapid load transitions.
Replacing the 126599-01 restored stable communication between the field sensors and the 3500/44M monitor. Following a complete channel verification and Keyphasor synchronization check, the turbine returned to automatic operation without additional controller modifications.
Typical applications include:
- Aeroderivative gas turbine vibration protection
- Mechanical drive gas compressor monitoring
- Emergency standby power turbine condition monitoring

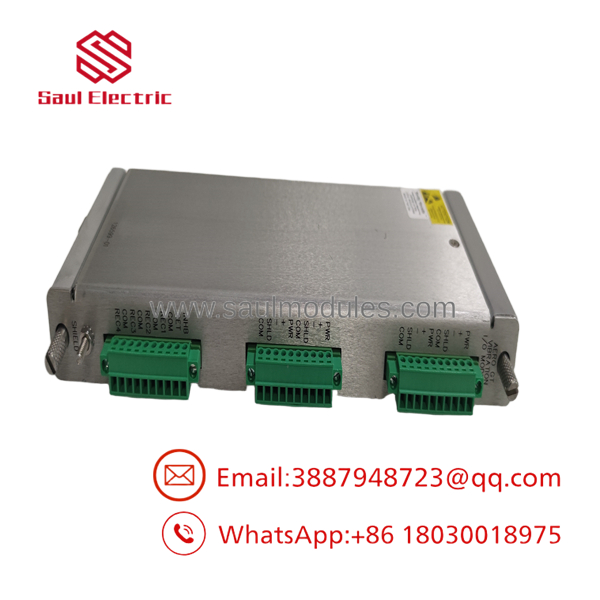

126599-01

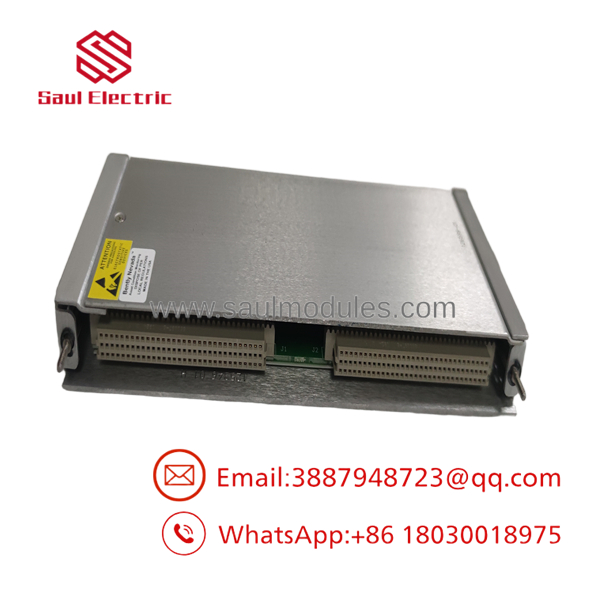

126599-01
Transparency SOP: QA & Testing
Every New Surplus or professionally refurbished module undergoes documented verification before shipment.
- ✔ Verify manufacturer label, part number, and hardware revision.
- ✔ Inspect PCB assemblies for contamination, corrosion, or mechanical damage.
- ✔ Examine connectors and terminal interfaces for bent or damaged contacts.
- ✔ Perform continuity and electrical integrity testing where applicable.
- ✔ Verify compatibility markings for the 3500/44M platform.
- ✔ Package using anti-static protection and industrial shock-resistant materials.
The Veteran’s Tech Trap Guide
⚠️ Don’t confuse the Monitor with the I/O Module.
The 126599-01 is an Aero GT I/O Module, not the vibration monitor itself. Ordering the wrong component can delay a scheduled outage.
⚠️ Verify Internal vs. External Termination Configuration.
Different 3500 series assemblies use different termination arrangements. Always compare the installed hardware before ordering replacement parts.
PRO TIP:
Before removing the existing module, export or record the monitor configuration. Although the configuration resides in the monitor, documenting channel assignments, Keyphasor routing, and alarm logic makes post-installation validation much faster.
Dynamic FAQ
Q1. Which monitoring system uses the 126599-01?
It is designed for the Bently Nevada 3500/44M Aeroderivative GT Vibration Monitor used on aeroderivative gas turbines.
Q2. Which sensors are supported?
The module interfaces with Velomitor® sensors and accelerometers used for vibration measurement in compatible 3500/44M systems.
Q3. Does the module support Keyphasor inputs?
Yes. It supports two independent Keyphasor® inputs, enabling advanced vibration tracking and machine diagnostics.
Q4. Is this module interchangeable with other 3500 Series I/O modules?
No. Although it belongs to the 3500 platform, the 126599-01 is engineered specifically for the 3500/44M Aeroderivative GT application. Always verify the exact part number and hardware configuration before replacement.
Q5. What is the difference between New Surplus and Refurbished inventory?
A New Surplus module has not been placed into industrial service but may originate from excess OEM inventory. A Refurbished module has previously been used and has been inspected, tested, and verified before resale.
Q6. Is warranty coverage available?
Yes. Warranty duration depends on inventory condition and supplier policy. Most industrial suppliers provide warranty coverage for both New Surplus and professionally refurbished units after inspection and functional verification.
