Bently Nevada 133434-01 Enhanced Keyphasor I/O Module

Description

Product Introduction

The Bently Nevada 133434-01 is a half-height rear Input/Output (I/O) interface module designed specifically for use with the 3500/25 Enhanced Keyphasor Module inside the 3500 Machinery Protection System. Installed in the upper or lower half of the rear slot directly corresponding to the front 3500/25 main card, the 133434-01 provides the physical wiring termination points for 1-Event-Per-Revolution phase reference sensors.

Featuring internal Euro-style screw terminals, the 133434-01 accepts input signals from up to two Keyphasor transducers (such as proximity probes or magnetic pickups). It distributes regulated power to field sensors and routes incoming speed and timing pulses into the 3500/25 main card. These phase reference signals are crucial across the entire 3500 rack for calculating shaft rotational speed, tracking 1X/2X vibration vectors, and driving diagnostic tools like orbit and Bode plots.

Key Technical Specifications

Application Scenarios & The “Trench” Experience

During a critical steam turbine startup, the plant control room notices that all vibration channels across the 3500 rack are displaying amplitude data, but speed tracking and 1X phase vectors are failing to update. Diagnostic logs point to a missing Keyphasor signal on Channel 1. Inspection inside the rear cabinet reveals that field wire overtightening stripped a terminal screw block on the original rear Keyphasor card, causing intermittent signal disconnects as the cabinet vibrated. Swapping the damaged module with a replacement 133434-01 rear card allows maintenance to re-terminate the Proximitor leads securely. Once reconnected, the 3500 system instantly locks back onto the shaft phase mark, restoring phase-angle vector filtering and speed telemetry before critical machine roll.

• Power Generation Turbines: Delivers phase reference timing pulses for synchronous vector filtering during startup and coast-down rolls.
• High-Speed Gas Compressors: Interfaces dual Keyphasor probes (primary and backup) on high-speed shaft keyways.
• Large Motor & Gearbox Skids: Routes speed/phase signals used by 3500/42M monitors for tracking order-based vibration harmonics.
• 3500 System Maintenance & Spares: Essential replacement rear card for plants using internal screw terminal connections for Keyphasor channels.

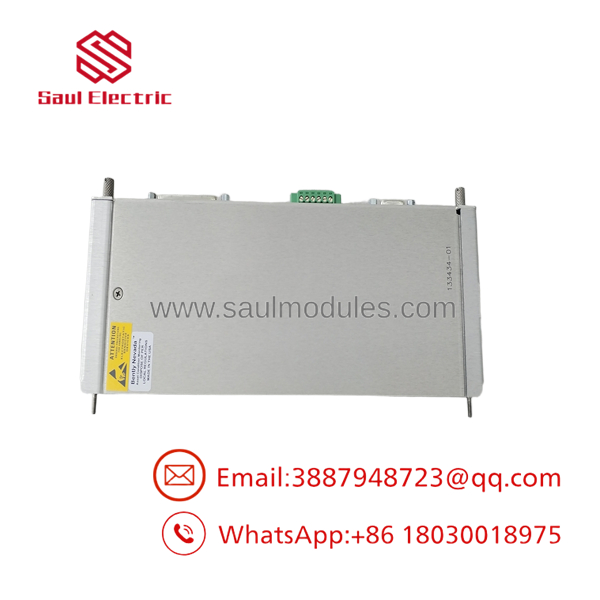

133434-01

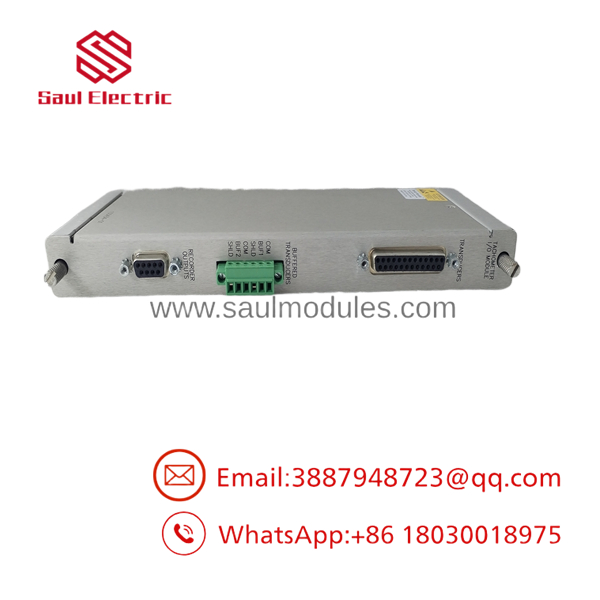

133434-01

Transparency SOP: Quality Assurance & Testing

1. Visual & Structural Inspection: Terminal block screws, PCB trace continuity, connector pins, and housing clips are inspected for stripped threads, corrosion, or mechanical damage.
2. Backplane & Form-Factor Fit Test: Inserted into a half-height rear slot of a Bently Nevada 3500 test chassis paired with a 3500/25 main monitor to verify exact mechanical seating and backplane pin engagement.
3. Signal & Power Routing Test:
   • Transducer Power Pass-Through: Verified supply voltage pass-through (-24V DC) across field terminals.
   • Pulse Continuity Audit: Injected simulated Keyphasor pulses from a signal generator across both channels, confirming clean, distortion-free signal pass-through to the front 3500/25 card.
4. Final ESD Packaging: Cleaned, fitted with protective edge covers, sealed in anti-static shielding bags, and packed in heavy-duty foam casing.

The Veteran’s Tech Trap Guide (Crucial Value-Add)

• ⚠️ Half-Height Slot Positioning: The 133434-01 is a half-height card. When installing it behind a 3500/25 module, ensure it is installed in the correct upper or lower half-slot as configured in the 3500 Rack Configuration Software. Inserting the card into the wrong half-slot will prevent the main 3500/25 module from detecting the I/O card.
• ❗ Internal vs. External Termination Models: The 133434-01 features internal Euro-style screw terminals directly on the card. If your cabinet uses multi-pin cables running to external DIN-rail terminal blocks, you require an External Termination rear card (such as the 125800-01) instead.
• ⚠️ Shield Grounding Rules: Always land cable shields at the designated SHIELD terminals on the 133434-01 card and leave them ungrounded/floating at the field sensor housing. Improper shield grounding can induce 50/60 Hz noise onto the Keyphasor line, causing double-triggering or false speed readings.
• ❗ Magnetic Pickup Threshold Adjustments: If using passive magnetic pickups instead of active Proximitors, ensure the trigger threshold jumpers/software settings on the front 3500/25 module match the voltage output of your pickup type. The 133434-01 acts as a pass-through interface and does not alter input threshold voltages.

Frequently Asked Questions (FAQ)

Q: What is the main function of the Bently Nevada 133434-01?

A: It is the internal termination rear I/O card for the 3500/25 Enhanced Keyphasor Module, providing direct screw terminal connections for two Keyphasor sensor inputs and transducer power.

Q: Can I use the 133434-01 with a standard 3500/42M vibration monitor card?

A: No. The 133434-01 is specifically engineered to pair with the 3500/25 Enhanced Keyphasor Module. Vibration monitors like the 3500/42M use their own full-height rear I/O cards (e.g., 128240-01 or 128229-01).

Q: What transducer types can be wired to the 133434-01 rear card?

A: It supports eddy-current Proximitor systems (such as 3300 XL 8mm probes), optical pickup sensors, and passive or active magnetic pickups.

Q: Is it safe to replace the 133434-01 while the 3500 rack is powered on?

A: It is strongly recommended to power down the specific rack slot or disconnect field sensor power before removing rear I/O cards to avoid accidental short circuits across backplane pins.

Q: What warranty is provided on surplus or reconditioned 133434-01 cards?

A: All New Surplus and fully reconditioned Bently Nevada 133434-01 modules include a full 12-month replacement warranty from the invoice date.
