Bently Nevada 135031-01 3500/20 Rack Interface I/O Module

Description

Product Introduction

The Bently Nevada 135031-01 is the Rear I/O Module used with the 3500/20 Rack Interface Module (RIM) in the 3500 Machinery Protection System. Installed at the rear of the rack, it provides the physical communication interface between the RIM and external diagnostic or supervisory systems. It supports serial communications through the RIM and enables configuration, diagnostics, and data transfer for legacy 3500 installations.

To be honest, many engineers mistakenly order this part when they actually need the front 3500/20 RIM. The 135031-01 is only the rear interface assembly. It cannot operate by itself and must always be paired with a compatible 3500/20 front module. Verify the complete assembly before placing a replacement order.

Key Technical Specifications

Application Scenarios & The “Trench” Experience

The vibration monitors were healthy.

The protection logic never stopped.

Yet the maintenance laptop couldn’t connect to the rack.

Everyone blamed the communication cable.

The cable wasn’t the problem.

The 135031-01 Rear I/O Module had a damaged communication interface after years of repeated cable insertions. Once the rear module was replaced, communication returned immediately without replacing the much more expensive Rack Interface Module.

Typical Applications

Power Generation – Turbine Protection Systems –
Provides the communication path between the 3500 rack and engineering workstations for configuration and diagnostics.

Oil & Gas – Compressor Monitoring –
Supports data exchange between machinery protection racks and supervisory monitoring systems.

Petrochemical Plants – API 670 Installations –
Enables maintenance personnel to configure monitor modules and retrieve event information.

Pipeline Stations – Legacy Monitoring Networks –
Maintains communication between remote machinery protection racks and central maintenance stations.

Industrial Manufacturing – Rotating Equipment Diagnostics –
Provides reliable rack communication during commissioning, maintenance, and troubleshooting.

Field Replacement Example

A gas compression station lost communication with a 3500 rack after a nearby electrical storm.

The 3500/20 RIM powered normally.

Every monitor module continued protecting the compressor.

Inspection revealed damaged communication circuitry on the 135031-01 rear I/O module. Replacing only the rear assembly restored rack communications within minutes, avoiding unnecessary replacement of the front RIM.

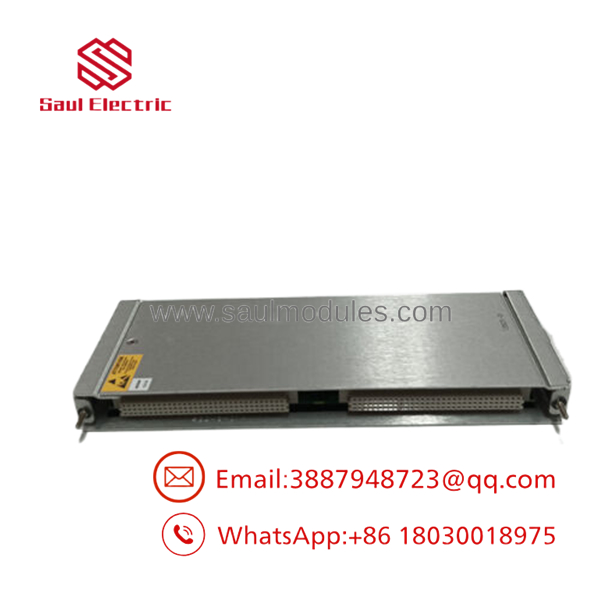

135031-01

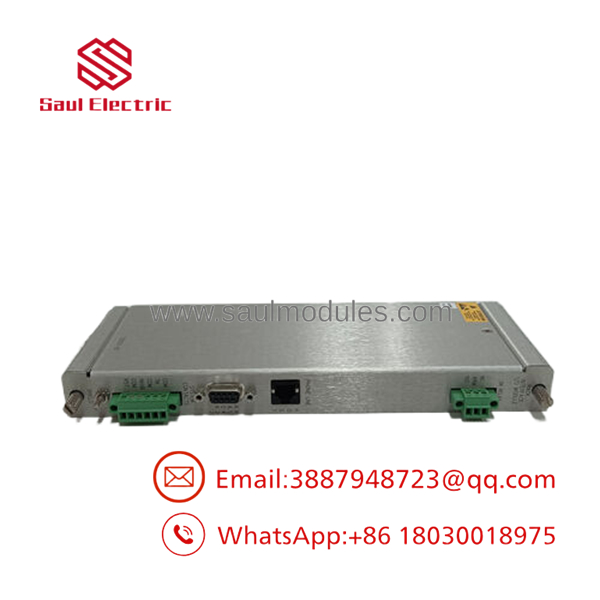

135031-01

Transparency SOP: Quality Assurance & Testing

We don’t just ship boxes; we test them on actual Bently Nevada 3500 racks.

1. Inbound Inspection

• Verify OEM labels, serial numbers, and hardware revision.
• Inspect communication connectors for wear and bent contacts.
• Check PCB condition for overheating or unauthorized repair.

2. Live Rig Testing

• Install with a compatible 3500/20 Rack Interface Module.
• Verify successful rack startup.
• Confirm communication with engineering software.
• Test external communication through the rear interface.

3. Electrical Parameter Checks

• Verify communication signal integrity.
• Confirm connector continuity.
• Test stable operation under continuous communication.

4. Hardware Verification

• Verify compatibility with the installed 3500/20 RIM.
• Record hardware revision before shipment.

5. Final QC & Anti-Static Packaging

• Complete functional communication testing.
• Package in ESD-safe materials.
• Protect connectors during transportation.
• Maintain complete inspection records.

The Veteran’s Tech Trap Guide

⚠️ Don’t confuse the rear I/O module with the Rack Interface Module itself.
The 135031-01 contains the external interface only. It cannot communicate without the front 3500/20 RIM installed.

❗ Inspect the rear connector before replacing electronics.
Years of maintenance can loosen or damage the connector. We’ve solved plenty of “communication failures” by replacing the rear I/O instead of the entire RIM.

⚠️ Install it in the correct rack position.
The rear I/O must align with the 3500/20 Rack Interface Module in Slot 1. Installing it behind another monitor will prevent proper operation.

❗ Back up the rack configuration first. Trust me.
Even though the rear I/O stores no configuration, any maintenance involving the rack interface should begin with a saved rack configuration. It can save hours if additional hardware issues are discovered.

Frequently Asked Questions (FAQ)

Q1: What is the function of the 135031-01?

A: It is the rear communication I/O module for the 3500/20 Rack Interface Module, providing the external communication interface used for rack configuration and diagnostics.

Q2: Can the 135031-01 operate by itself?

A: No. It must always be installed together with a compatible 3500/20 Rack Interface Module. The rear I/O provides the physical interface, while the front RIM performs communication processing.

Q3: Which communication processors are supported?

A: The module supports communication through the 3500/20 RIM with external processors such as TDXnet, TDIX, and DDIX used in legacy Bently Nevada monitoring systems.

Q4: Is the 135031-01 interchangeable with 3500/22M TDI I/O modules?

A: No. The 135031-01 is designed specifically for the 3500/20 Rack Interface Module. It is not interchangeable with the Ethernet or fiber-optic rear I/O modules used by the 3500/22M Transient Data Interface.

Q5: Is the module hot-swappable?

A: No. Replacement should be performed during a planned maintenance outage. Removing the rear I/O while the rack is operating interrupts communication and may require the rack interface to reinitialize after installation.

Q6: Why are surplus modules less expensive than buying directly from the OEM?

A: Most surplus inventory comes from plant modernization projects, unused maintenance inventory, or decommissioned facilities. Price alone is not a measure of quality. Ask for rack communication test results, hardware revision records, and serial-number traceability before purchasing.

Q7: What warranty is typically available?

A: Most reputable industrial automation suppliers offer a 12-month warranty on professionally tested surplus or refurbished Bently Nevada 135031-01 modules. Before purchasing, request documentation showing communication testing, hardware revision verification, and complete inspection records.
