Product Introduction

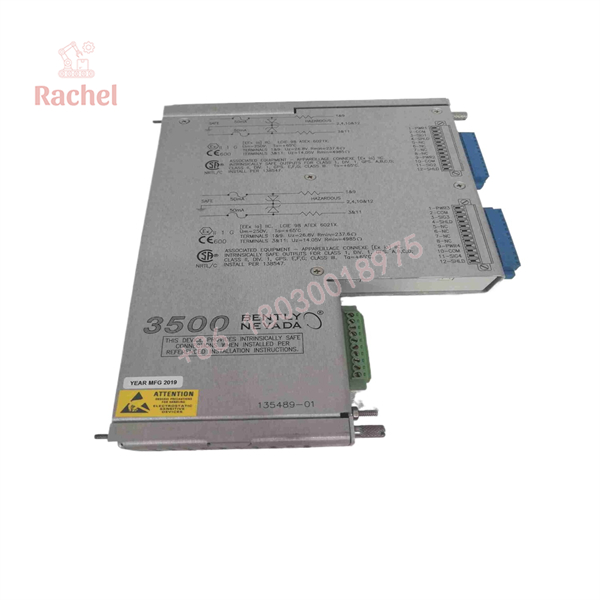

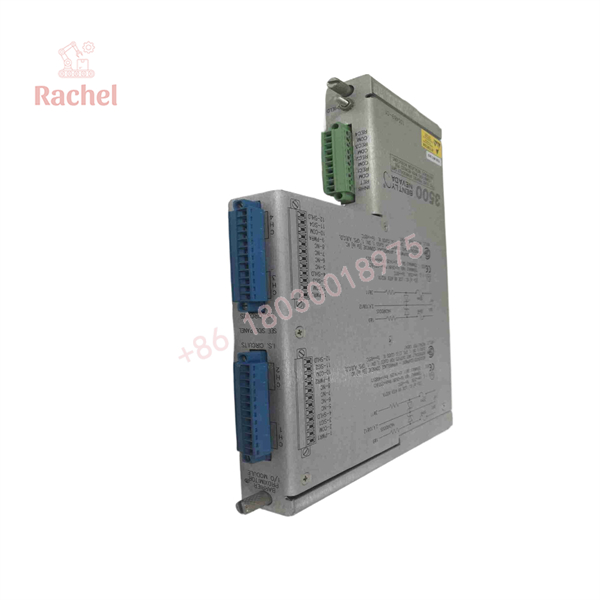

The Bently Nevada 135489-01 is a 4-channel Proximitor / Seismic I/O module designed for rear-slot installation in a 3500 machinery protection rack. Positioned directly behind the 3500/42M Proximitor Seismic Monitor main module, this card serves as the physical landed interface for field-installed proximity probes, Velomitors, and piezo-velocity accelerometers.
Unlike external termination setups requiring multi-conductor cable harnesses running out to remote DIN-rail terminal blocks, the 135489-01 features integrated internal terminal strips right on the module faceplate. Direct wire landing reduces intermediate connections, eliminating noise injection and potential contact resistance in sensitive, low-level sensor loops. Installing an authentic 135489-01 maintains API 670 signal accuracy and guarantees seamless backplane communication for critical machinery vibration monitoring setups.
Key Technical Specifications
| Parameter | Value / Specification |
|---|---|
| Manufacturer | Bently Nevada (Baker Hughes) |
| Part Number | 135489-01 |
| Associated Main Module | 3500/42M Proximitor Seismic Monitor |
| Channels Supported | 4 Programmable Vibration / Position Channels |
| Termination Type | Internal Terminations (Direct-landing screw-terminal blocks) |
| Transducer Inputs | Proximitor Probes, Velomitors, Accelerometers, Seismoprobes |
| Form Factor | Full-Height Rear Chassis Card |
| Transducer Power Output | -24 VDC output per channel (short-circuit protected) |
| Operating Temperature | -30°C to +65°C (-22°F to +149°F) |
| Hazardous Area Approvals | CSA, ATEX, IECEx Zone 2 / Class I, Div 2 |
Application Scenarios & The “Trench” Experience
To be honest, few things stress a reliability engineer like a false machinery trip caused by a loose wiring terminal. Picture a forced outage on a main boiler feed pump at 3 AM. The DCS flags a “Transducer Fault” on channel 2 of the 3500 rack. You pull the cabinet rear door only to find an old, corroded external cable connector vibrating loose inside a harsh, humid environment. Replacing a failed harness and external block takes hours of tedious tracing. Swapping in a clean 135489-01 rear module lets you land the field wiring straight to the rack, eliminating intermediate interconnect points and getting stable vibration telemetry back to the control room before startup deadlines slip.
Key Industrial Scenarios
- Refining & Petrochemical: Land 3300 XL proximity probe field wiring for radial vibration and axial thrust monitoring on critical un-spared gas compressors.
- Power Generation: Route pedestal accelerometer and casing Velomitor signals directly into 3500 protection racks with minimal cabinet clutter.
- LNG Production: Provide reliable, direct-wired transducer connections in high-vibration, high-humidity offshore and coastal rack cabinets.
135489-01
135489-01
Transparency SOP: Quality Assurance & Testing
We don’t just ship boxes; we test them on actual Bently Nevada 3500 racks.
- Inbound Inspection: Multi-point visual audit for PCB warping, terminal block solder integrity, and OEM serial verification under magnification.
- Terminal Block Mechanical Inspection: Individual screw torque testing to ensure threads are intact and wire cages hold securely.
- Power Rail Verification: Check for clean -24 VDC excitation power across all 4 transducer terminals under load.
- Full Signal Loop Handshake: Seat the 135489-01 behind a live 3500/42M main module; inject dynamic AC vibration signals and DC gap voltages across all channels to verify zero signal loss across the backplane edge connectors.
- Final QC & Anti-Static Packaging: Isopropyl cleaning of contacts, installation of protective terminal covers, and sealing in a heavy-duty ESD moisture-barrier bag with fresh desiccant.
The Veteran’s Tech Trap Guide
- ⚠️ Mismatched Rack Software Settings: Double-check your 3500 Rack Configuration Software! The 3500/42M card must be explicitly set to “Internal Termination.” If the software is left configured for “External Termination” while running a 135489-01 card, your channels will trigger software configuration fault alarms and freeze live monitoring data.
- ❗ Shield Landing Discipline: Always keep field cable shields insulated until they reach the dedicated shield terminals on the 135489-01 faceplate. Never ground the shield at both the field sensor junction box and the 135489-01 module. Dual-grounding creates a ground loop that masks actual shaft vibration with heavy 60 Hz electrical noise.
- ⚠️ Bypassing Trips Before Pulling Rear Cards: While the 3500 rack backplane allows hot swaps, pulling a 135489-01 card instantly cuts -24 VDC power to all 4 connected field sensors. If any of those channels belong to an active 2-out-of-2 voting trip matrix, always place the 3500/42M front module into “Bypass” mode before touching a screwdriver to the rear card.
- ❗ Conductor Wire Gauge Limits: The screw terminals on the 135489-01 card comfortably accept 18 to 24 AWG stranded wire. Trying to force heavy 14 AWG field wiring into these compact terminals will twist the terminal block and snap the internal PCB solder pads right off the trace.
Frequently Asked Questions (FAQ)
Q: What is the primary difference between internal termination (135489-01) and external termination modules? A: The 135489-01 uses terminal blocks directly mounted on the rear module faceplate for direct field wire landing. External termination modules (like the 128229-02) use multi-pin cable connectors that run out to a remote, DIN-rail-mounted external termination block (ETB) elsewhere in the cabinet.
Q: Can I use the 135489-01 module with standard 3300 XL Proximitor probes? A: Yes. The 135489-01 provides the required -24 VDC excitation power and handles raw gap voltage signals (-2V DC to -18V DC) from Bently Nevada 3300, 3300 XL, and 7200 series proximity transducer systems.
Q: Do I need to recalibrate my vibration channels after replacing a damaged 135489-01 card? A: No. The 135489-01 is a passive signal routing and conditioning interface card. All transducer scale factors (e.g., 200 mV/mil or 100 mV/g) and alarm logic setpoints are stored and processed on the 3500/42M main front card.
Q: Why choose New Surplus stock over ordering direct from the OEM? A: Factory lead times for 3500 series replacement cards from OEM distribution channels frequently stretch from 8 to 16 weeks. Purchasing our tested New Surplus stock guarantees delivery in days, allowing you to clear rack fault alarms immediately without paying inflated emergency expedite fees.
Q: What warranty coverage applies to this module? A: Every 135489-01 module ships with our full 12-month advance replacement warranty. If the board exhibits channel signal failure or terminal defects within one year, we swap it out immediately from our ready stock.
