Bently Nevada 135489-01 3500/42M Internal Barrier I/O Module

Description

Product Introduction

The Bently Nevada 135489-01 is a 4-channel Internal Barrier Rear I/O Module used in the 3500 Machinery Protection System. It is designed for installations requiring intrinsic safety and provides internal signal barriers for four Proximitor® or accelerometer channels. The module is commonly paired with the 3500/42M, 3500/70, and 3500/72 monitor families in hazardous industrial environments.

In our field experience, this part is frequently mistaken for the monitor itself. It isn’t. The 135489-01 is strictly the rear I/O module. The front monitor performs the signal processing; this module provides the field interface and intrinsic safety barriers. Verify both part numbers before ordering.

Key Technical Specifications

Application Scenarios & The “Trench” Experience

Everything looked healthy.

The probes passed calibration.

The monitor never reported a hardware fault.

Yet one vibration channel kept dropping offline every few hours.

The problem wasn’t the monitor.

It was a damaged 135489-01 rear I/O module that had suffered years of vibration and repeated field wiring maintenance. After replacing only the rear I/O module, all four channels returned to stable operation without touching the monitor.

Typical Applications

Oil & Gas – Compressor Trains –
Provides intrinsically safe field connections for proximity probes installed in classified hazardous locations.

Power Generation – Gas and Steam Turbines –
Interfaces vibration probes used for continuous rotor monitoring while maintaining hazardous-area compliance.

Petrochemical Plants – API 670 Machinery Protection –
Supports vibration monitoring of pumps, compressors, and process turbines installed in hazardous process units.

Refineries – Critical Rotating Equipment –
Allows four Proximitor® or accelerometer inputs to be connected through certified internal safety barriers.

Chemical Processing – High-Risk Process Areas –
Provides safe signal isolation between hazardous-area sensors and the 3500 monitoring rack.

Field Replacement Example

During a refinery turnaround, technicians experienced intermittent loss of two vibration channels after reconnecting field wiring.

Sensor resistance measured within specification.

The front 3500/42M monitor completed diagnostics without errors.

Inspection identified damaged terminals inside the 135489-01 rear I/O module. Replacement restored stable measurements immediately, eliminating repeated nuisance alarms during startup.

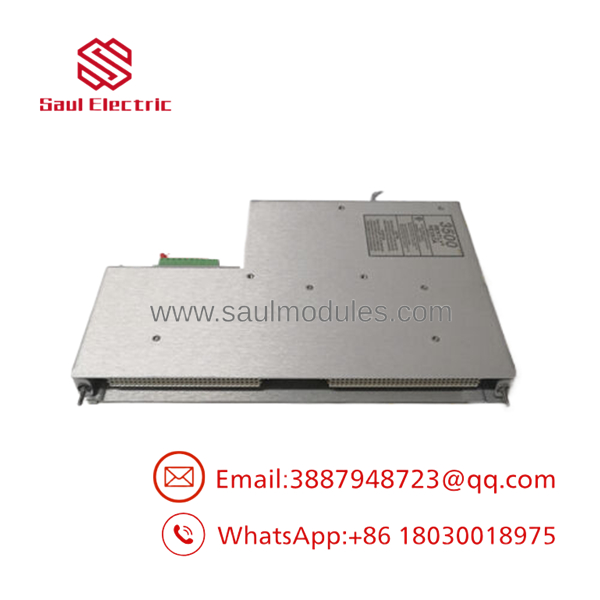

135489-01

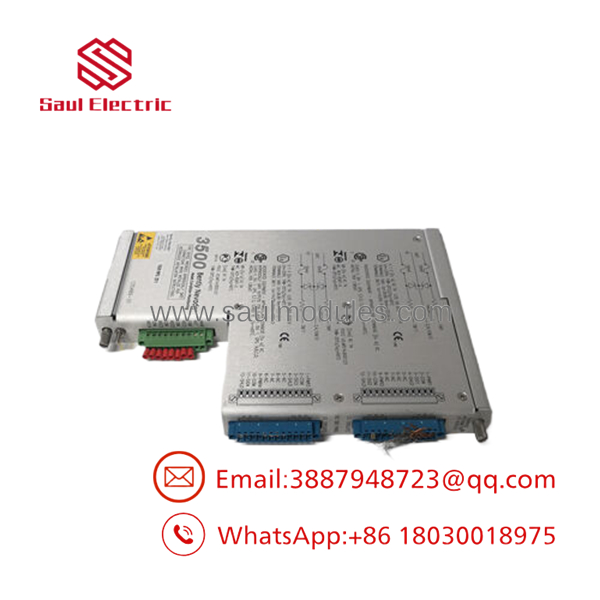

135489-01

Transparency SOP: Quality Assurance & Testing

We don’t just ship boxes; we test them on actual Bently Nevada 3500 racks.

1. Inbound Inspection

• Verify OEM identification labels and serial numbers.
• Inspect intrinsic safety barrier components.
• Examine connectors and terminal blocks for wear or corrosion.

2. Live Rig Testing

• Install with a compatible 3500 monitor.
• Simulate four proximity probe or accelerometer inputs.
• Verify channel recognition and communication.

3. Electrical Parameter Checks

• Verify channel isolation.
• Check connector continuity.
• Confirm signal integrity through all four channels.
• Inspect barrier circuitry for correct operation.

4. Hardware Verification

• Record hardware revision.
• Verify compatibility with the intended monitor family.
• Document all functional test results.

5. Final QC & Anti-Static Packaging

• Complete full operational testing.
• Package in ESD-safe materials.
• Protect terminals and connectors from shipping damage.
• Maintain complete traceability records.

The Veteran’s Tech Trap Guide

⚠️ Don’t confuse 135489-01 with other 135489 variants.
The 135489-01 supports four Proximitor®/accelerometer channels. Variants such as 135489-02 and 135489-03 support different sensor combinations. Installing the wrong version will create immediate wiring incompatibilities.

❗ An internal barrier module requires an earthing module.
When using internal barrier I/O modules, Bently Nevada specifies installing the appropriate Earthing Module in the rack. Skipping this requirement can compromise intrinsic safety compliance.

⚠️ Label every field cable before removal. Trust me.
Four nearly identical probe cables can easily be swapped during maintenance. Incorrect channel assignments often appear as machine faults when the real issue is wiring.

❗ Verify hazardous-area approvals before installation.
Intrinsic safety certification depends on the complete system configuration—not just the I/O module. Confirm the rack, monitor, wiring, and field devices match the required certification before commissioning.

Frequently Asked Questions (FAQ)

Q1: What is the function of the Bently Nevada 135489-01?

A: It is a 4-channel Internal Barrier Rear I/O Module that provides intrinsically safe field wiring connections for compatible Bently Nevada 3500 monitor modules.

Q2: Which monitor modules are compatible?

A: The 135489-01 is designed for compatible configurations of the 3500/42M, 3500/70, and 3500/72 monitor families. Always verify the exact monitor configuration before replacement.

Q3: What sensors does this version support?

A: The 135489-01 supports four Proximitor® or accelerometer channels. Other variants in the 135489 series support mixed Proximitor®/Velomitor® or all-Velomitor® configurations.

Q4: Can the module operate by itself?

A: No. It is only the rear I/O assembly. It must be installed together with the appropriate front monitor module to perform signal processing and machinery protection.

Q5: Is the module hot-swappable?

A: No. Replacement should be completed during a scheduled maintenance outage. Removing the rear I/O module while the monitor is operating interrupts all associated measurement channels and may affect machinery protection.

Q6: Why are surplus modules less expensive than buying directly from the OEM?

A: Most surplus inventory comes from plant expansions, modernization projects, or unused maintenance stock. Price reflects inventory sourcing rather than performance. Ask for functional test reports, hardware revision records, and serial-number traceability before purchasing.

Q7: What warranty is typically available?

A: Most reputable industrial automation suppliers provide a 12-month warranty on professionally tested surplus or refurbished Bently Nevada 135489-01 modules. Before purchasing, request documented channel verification, insulation testing, and hardware revision records.
