Product Introduction & Engineering Value
Hazardous area installations demand extra care with sensor wiring. The Bently Nevada 135489-02 gives you built-in intrinsic safety barriers and clean terminations in one compact rear module. It pairs specifically with the 3500/42M monitor to safely interface two proximity or acceleration channels and two Velomitor sensors.
This configuration reduces cabinet clutter and potential failure points while maintaining full signal integrity for vibration and position monitoring. Plants in classified areas rely on these barrier I/O modules to stay compliant without separate zener barriers.
Technical Specifications
Channel Configuration
- Channels 1-2: Prox/Accel (proximity probes or accelerometers)
- Channels 3-4: Velomitor piezoelectric velocity sensors
Barrier & Termination
- Internal barriers for hazardous locations
- Internal terminations for simplified field wiring
Environmental
- Operating Temperature: -30°C to +65°C
- Storage Temperature: -40°C to +85°C
Physical
- Dimensions (H x W x D): 241.3 mm x 24.4 mm x 99.1 mm approx.
- Weight: Approximately 0.46 kg
Field Application & The “Trench” Experience
A chemical plant in Louisiana had repeated issues with their compressor monitoring system after a barrier failure caused a channel to go Not OK during a turnaround. The 135489-02 swap restored all four channels with proper isolation. The reliability team regained confidence in their proximity and velocity readings, allowing them to extend the run length on that critical asset.
Niche Applications
- API 670 compliant monitoring in Class I Div 2 compressor skids
- Mixed sensor setups on large horizontal pumps with both shaft and casing measurements
- Velocity transducer monitoring on gearboxes in petrochemical facilities

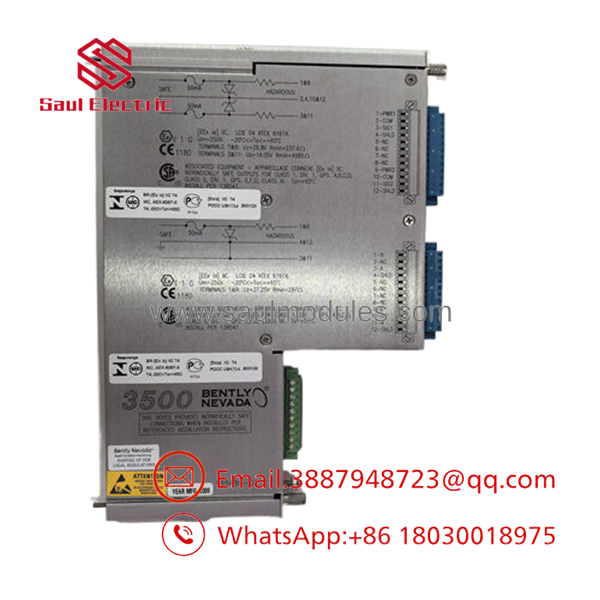

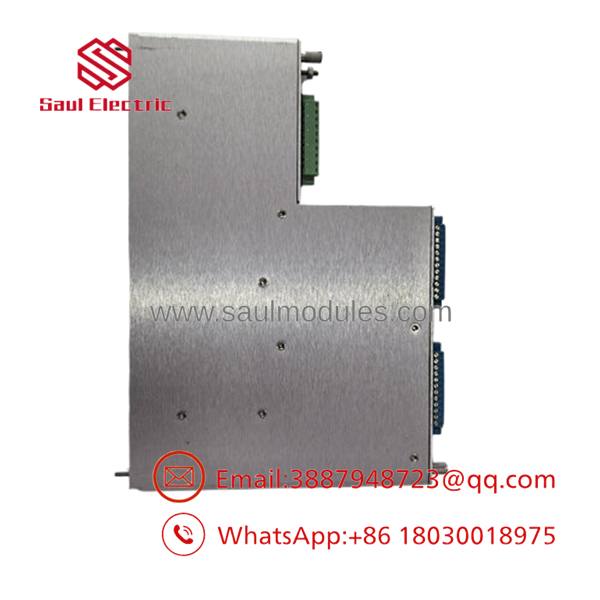

- 135489-02
- 135489-02
Transparency SOP: QA & Testing
Testing starts with visual inspection of barrier components and terminations. Each 135489-02 is installed in a 3500 rack with a 3500/42M monitor and representative transducers. We verify intrinsic safety parameters, accurate signal conditioning for both Prox and Velomitor types, and proper isolation. Functional tests include alarm simulation and Not OK detection before final approval.
The Veteran’s Tech Trap Guide
⚠️ Channel Mapping — This specific -02 version has fixed channel types. Assigning a Velomitor to a Prox channel (or vice versa) will produce garbage data or constant faults.
PRO TIP: Always match the I/O part number exactly to your monitor configuration ordering code.
⚠️ Barrier Integrity — Never bypass or jumper barrier circuits. Doing so voids the hazardous area certification and creates real safety risks.
Dynamic FAQ
Q: What sensors does the 135489-02 specifically support? A: Two Prox/Accel channels and two Velomitor channels.
Q: Is this I/O suitable for hazardous areas? A: Yes, the internal barriers provide intrinsic safety protection for appropriate installations.
Q: Can I use this module with non-barrier monitor configurations? A: It is designed for applications requiring barriers. Standard non-barrier I/O modules exist for non-hazardous setups.
Q: What warranty comes with New Surplus 135489-02 units? A: One-year warranty covering defects and performance issues.
Q: How do I confirm correct operation after installation? A: Monitor the 3500/42M front panel for OK status and use configuration software to check gap voltages and dynamic signals on all channels.
Q: Does this replace older I/O modules directly? A: Yes, provided the monitor firmware and configuration match the mixed Prox/Velomitor setup.
