Bently Nevada 136188-01 Ethernet Modbus I/O Module

Description

Product Introduction & Engineering Value

When a machinery protection system needs to exchange data with a DCS or SCADA platform, the communication gateway becomes just as important as the monitoring hardware itself. The Bently Nevada 136188-01 is the Ethernet/RS232 Modbus I/O Module used with the 3500/92 Communication Gateway, allowing monitored values, alarms, and equipment status to be shared with higher-level control systems.

Rather than hardwiring individual signals, this module enables centralized communication over industrial networks, simplifying integration with PLCs, asset management software, and plant-wide monitoring applications while preserving the integrity of the 3500 protection system.

Technical Specifications

Field Application & The “Trench” Experience

A combined-cycle power plant upgraded its distributed control system but retained the existing Bently Nevada 3500 machinery protection racks. During commissioning, operators found that vibration alarms appeared correctly on the local rack display but were missing from the DCS historian.

After troubleshooting the network infrastructure, engineers identified a failed 136188-01 Ethernet/RS232 Modbus I/O Module. Once the replacement module was installed and Modbus registers were revalidated, live vibration values, alarm status, and diagnostic information became available to the plant control network without modifying the protection logic.

Typical applications include:

• Steam turbine vibration data integration with plant DCS
• LNG compressor condition monitoring through Modbus TCP
• Centralized machinery health reporting to asset management software

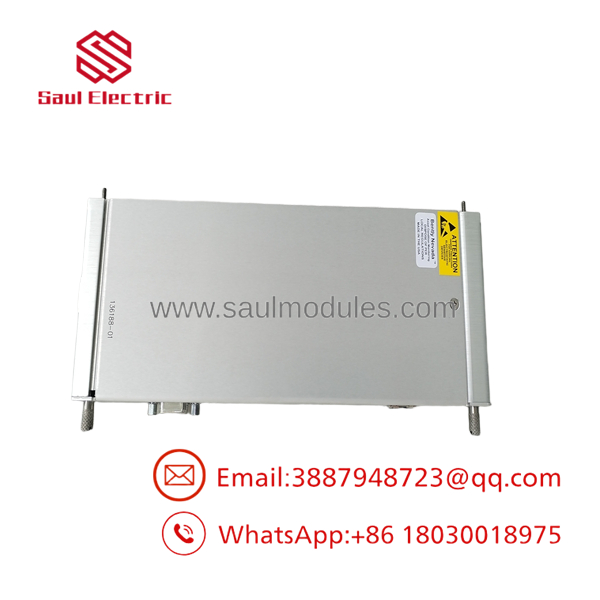

136188-01

136188-01

Transparency SOP: QA & Testing

Every New Surplus or professionally refurbished 136188-01 undergoes a documented inspection process before shipment.

1. Verify manufacturer markings, part number, and hardware revision.
2. Inspect the PCB, Ethernet connector, and serial communication ports.
3. Check connector integrity and solder joints for mechanical damage.
4. Perform communication verification using a compatible 3500/92 gateway where available.
5. Confirm Ethernet link activity and Modbus communication functionality.
6. Package the module in anti-static protection with industrial-grade cushioning for transportation.

The Veteran’s Tech Trap Guide

⚠️ This is not the complete gateway.

The 136188-01 is the Ethernet/RS232 Modbus I/O Module used with the 3500/92 Communication Gateway. It cannot function as a standalone communication module.

⚠️ Don’t assume every Modbus register is identical.

Different rack configurations expose different monitored variables. Always verify the configured Modbus register map after replacing the module, especially if the DCS relies on custom register assignments.

PRO TIP:

Before replacing the module, save the current communication configuration from the 3500 Rack Configuration Software. Restoring a verified configuration is considerably faster than rebuilding network parameters from scratch.

Dynamic FAQ

Q1. What is the primary purpose of the 136188-01?

It provides the Ethernet and serial communication interface for the 3500/92 Communication Gateway, enabling monitored machinery data to be exchanged with DCS, PLC, SCADA, and asset management systems.

Q2. Which communication protocols are supported?

The module supports Modbus TCP/IP over Ethernet and Modbus RTU over serial communication. It also supports Ethernet TCP/IP and serial interfaces including RS232, RS422, and RS485.

Q3. Can this module communicate directly with a PLC?

Yes. When properly configured, it allows compatible PLCs and DCS platforms to access vibration measurements, alarm status, and other rack data through supported Modbus communication protocols.

Q4. Does replacing the module affect the machinery protection logic?

No. The module serves as a communication interface. Protection functions continue to reside within the monitoring modules and rack configuration, although communication parameters should be verified after installation.

Q5. What is the difference between New Surplus and Refurbished inventory?

A New Surplus unit has not been placed into industrial service but may originate from excess OEM inventory. A Refurbished unit has been previously installed, then cleaned, inspected, functionally tested, and verified before resale.

Q6. Is warranty coverage available?

Yes. Warranty terms vary by supplier and inventory condition. Most qualified automation suppliers provide warranty coverage for both New Surplus and professionally refurbished modules after documented inspection and communication testing.
