Bently Nevada 136294-01 Position Monitor Rear I/O Module

Description

Product Introduction

The Bently Nevada 136294-01 is a four-channel rear Input/Output (I/O) interface module designed specifically to partner with the 3500/45 Position Monitor inside the 3500 Machinery Protection System. Installed in the full-height rear slot directly behind the main 3500/45 card, the 136294-01 serves as the primary field wiring connection point for critical axial position and thermal expansion monitoring.

Engineered for Internal Termination configurations, the 136294-01 features integrated Euro-style screw terminals mounted directly on the circuit board. It distributes regulated power to field transducers while routing DC position signals—such as Axial Thrust, Differential Expansion, Eccentricity, Case Expansion, and Valve Position—into the 3500/45 monitor for real-time position tracking and machine trip protection.

Key Technical Specifications

Application Scenarios & The “Trench” Experience

During a thermal ramp-up on a large steam turbine set, instrument technicians notice intermittent position spikes on the Differential Expansion channel of a 3500/45 monitor card. Physical inspection of the rear cabinet reveals that years of thermal cycling caused micro-cracking in the terminal block header on the original rear card, resulting in loose lead contact under plant vibration. Replacing the damaged module with a fresh 136294-01 internal termination card enables technicians to re-land the LVDT and Proximitor field wires onto secure Euro-style screw terminals. Once installed, stable DC voltage feedback is restored to the monitor, ensuring accurate rotor-to-casing growth measurement during startup.

• Steam & Gas Turbines: Routes dual-redundant axial thrust position probe wires and case expansion LVDT signals.
• Large Industrial Compressors: Provides secure field wiring connection for rotor position probes monitoring thrust collar wear.
• Hydroelectric Generators: Interfaces guide bearing positioning transducers and governor valve position feedback devices.
• 3500 Rack Upgrades & Maintenance: Essential spare part for cabinets using direct internal wiring for 3500/45 Position Monitor channels.

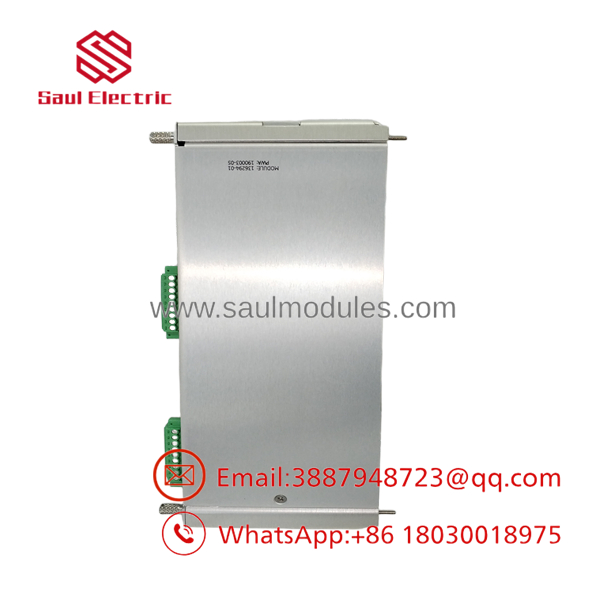

136294-01

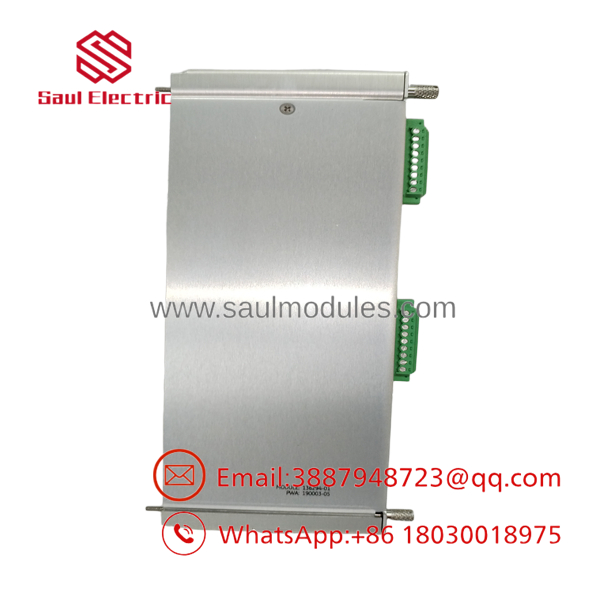

136294-01

Transparency SOP: Quality Assurance & Testing

1. Visual & Structural Inspection: Screw terminals, PCB traces, edge connector contacts, and mounting brackets are inspected for physical damage, corrosion, or thermal degradation.
2. Backplane & Card Alignment Test: Installed into the rear slot of a Bently Nevada 3500 test chassis behind a functional 3500/45 position monitor card to verify slot recognition and mechanical alignment.
3. Signal Pass-Through & Power Audit:
   • Power Distribution Verification: Confirmed stable supply power pass-through to field sensor terminals across all 4 channels.
   • DC Signal Continuity Test: Injected precise DC calibration voltages (simulating full probe sweep ranges) across all 4 input channels to confirm linear transmission to the front processing card.
4. Final ESD Packaging: Cleaned, fitted with protective contact caps, sealed in anti-static shielding bags, and packed in heavy-duty foam casing.

The Veteran’s Tech Trap Guide (Crucial Value-Add)

• ⚠️ Internal vs. External Termination Differences: The 136294-01 is an Internal Termination card (wires connect directly to screw terminals on the card). If your system utilizes multi-pin cable harnesses connecting to DIN-rail mounted terminal blocks outside the rack, you require an External Termination module (such as the 125840-02 or 128240 series depending on monitor configuration) instead.
• ❗ Pairing Constraint (3300/3500 System Differences): Ensure this module is paired strictly with a 3500/45 Position Monitor. Attempting to pair the 136294-01 with a standard 3500/42M vibration monitor card or a 3500/25 Keyphasor card will result in a slot configuration error on the 3500/22M Rack Interface Module (RIM).
• ⚠️ Zero/Span Calibration Integrity: When replacing a rear I/O module on a position monitoring channel, always verify the DC voltage zero and span settings using 3500 Rack Configuration Software. Slight resistance differences between old and new terminal blocks can introduce a minor DC offset on high-precision LVDT or proximity thrust channels.
• ❗ Shield Wire Isolation: Always land transducer cable shields at the designated SHIELD terminals on the 136294-01 card. Keep the shield ungrounded/floating at the field junction box to prevent ground loops that induce DC baseline drift in position readings.

Frequently Asked Questions (FAQ)

Q: What is the main function of the Bently Nevada 136294-01?

A: It is the internal termination rear I/O card for the 3500/45 Position Monitor, providing direct screw terminal connections for up to 4 position transducer channels (Thrust, Differential Expansion, LVDTs, etc.).

Q: Can I use the 136294-01 for standard radial shaft vibration monitoring?

A: No. Radial vibration monitors (3500/42M) require their own dedicated rear I/O modules (such as the 135489-01 or 128240-01). The 136294-01 is designed specifically for position transducers connected to a 3500/45 main card.

Q: What transducer types can be wired to the 136294-01 module?

A: It supports Proximitor proximity probes (for thrust and differential expansion), Linear Variable Differential Transformers (LVDTs), Rotary Variable Differential Transformers (RVDTs), and rotary potentiometers.

Q: Is it safe to replace the 136294-01 while the 3500 rack is powered?

A: Powering down the specific rack slot or isolating transducer power prior to removing rear I/O cards is strongly recommended to prevent accidental short circuits across backplane terminal pins.

Q: What warranty is provided on surplus or reconditioned 136294-01 modules?

A: All New Surplus and fully reconditioned Bently Nevada 136294-01 modules include a full 12-month replacement warranty from the invoice date.
