Bently Nevada 149992-01 Vibration Monitoring I/O Module

Product Introduction & Engineering Value

A vibration monitoring system must do more than detect movement — it must distinguish normal operating changes from conditions that threaten equipment reliability. The Bently Nevada 149992-01 3500/42M monitor module provides signal processing and alarm handling for critical rotating machinery applications.

Installed in a Bently Nevada 3500 rack, this module supports engineers monitoring shaft vibration, casing vibration, and other machine dynamic conditions. It allows plants to continue using established protection architectures without replacing complete monitoring systems.

Technical Specifications

Field Application & The “Trench” Experience

A refinery compressor train began generating inconsistent vibration alarms after years of continuous operation. Operators reported occasional high vibration indications, but field inspection showed no corresponding mechanical changes.

The instrumentation team reviewed probe condition, cable integrity, and monitor settings. After confirming the sensors were operating correctly, attention moved to the vibration monitor channel hardware. The existing Bently Nevada 3500/42M module was replaced with a tested 149992-01 spare.

After installation, engineers completed channel verification, alarm testing, and baseline comparison against historical vibration data. The compressor protection system returned to normal monitoring operation.

Typical application scenarios include:

• Centrifugal compressor radial vibration monitoring
• Steam turbine shaft vibration protection
• Hydro turbine condition monitoring systems
• Industrial rotating equipment diagnostic panels

Transparency SOP: QA & Testing

Vibration monitoring modules require signal-level testing, not only visual inspection.

Testing workflow:

1. Hardware inspection

• Verify Bently Nevada identification label
• Inspect front panel and connectors
• Check module housing condition
• Review storage condition

2. Electrical verification

• Confirm rack power response
• Check module diagnostics
• Verify I/O interface condition

3. Signal testing

• Apply simulated vibration inputs when available
• Verify channel response
• Check alarm functions
• Confirm rack communication

Testing records should accompany the spare module to support maintenance traceability.

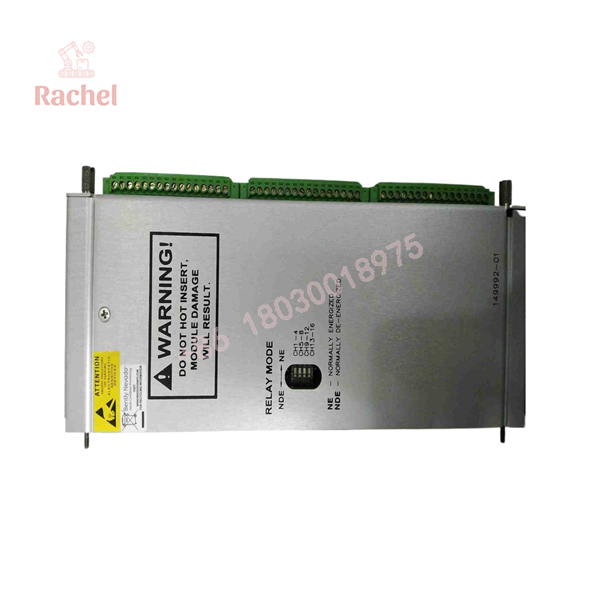

149992-01

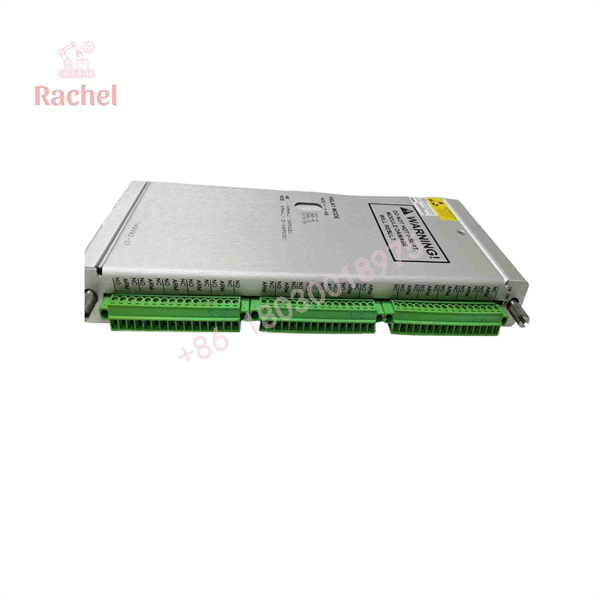

149992-01

The Veteran’s Tech Trap Guide

⚠️ Do not replace vibration modules without checking probe compatibility.

A healthy monitor with an incorrect probe type, gap voltage, or wiring arrangement can produce misleading readings.

⚠️ Review configuration files before swapping hardware.

Alarm setpoints, channel scaling, and measurement parameters may need to be restored after replacement.

⚠️ Check the complete module pair.

Bently Nevada 3500 systems use front monitor modules together with corresponding rear I/O modules. Verify both hardware references during replacement planning.

PRO TIP: Save the existing 3500 configuration file before removing the module. It is often the fastest way to restore alarm settings after installation.

Dynamic FAQ

Q1. What is the Bently Nevada 149992-01 used for?

The 149992-01 is a 3500/42M Proximitor Seismic Monitor module used for vibration signal processing and machinery protection applications within Bently Nevada 3500 systems.

Q2. How many vibration channels does the 149992-01 support?

The 3500/42M monitor family is designed as a four-channel vibration monitoring module.

Q3. What type of sensors work with the 149992-01?

The module supports vibration inputs from compatible proximity probes and seismic transducers depending on configuration.

Q4. Can the 149992-01 directly replace another 3500/42M module?

Replacement depends on firmware revision, channel configuration, rear I/O compatibility, and existing rack setup.

Q5. Is Bently Nevada 149992-01 available as new surplus?

Availability depends on supplier inventory. Units may be offered as new surplus, tested used, or refurbished Bently Nevada 3500 Series modules.

Q6. What checks should be completed after installation?

Verify module recognition, channel readings, probe signals, alarm settings, and comparison against historical machinery vibration data before returning the equipment to normal service.

Q7. What warranty is normally provided for a refurbished 149992-01?

Warranty terms depend on supplier testing standards and condition classification. New surplus and refurbished modules usually have different warranty coverage.
