Description
Product Introduction & Engineering Value
When vibration or position readings cross critical thresholds, you need fast, reliable action. The Bently Nevada 149992-01 16-Channel Relay Output Module turns monitor alarms into hard-wired control signals for shutdown systems, annunciators, or PLCs. Each of the 16 relays can be programmed with complex logic combining multiple channels, Not OK statuses, and voting schemes.
This high-density design packs serious control capability into a single rack slot, reducing wiring and panel space while giving engineers the flexibility to match exact plant shutdown philosophy.
Technical Specifications
Relay Outputs
- 16 independent SPDT (Form C) relays
- Contact Rating: 5A at 24 VDC / 120 VAC resistive
- Isolation: 1500 Vrms coil-to-contact
Logic
- Programmable AND/OR voting per relay
- Assignable to any monitor channel alarms, Not OK, or combinations
- Time delays and latching options available
Environmental
- Operating Temperature: -30°C to +65°C
- Storage Temperature: -40°C to +85°C
Physical
- Full-height, single-slot module
- Hot-swappable design
Field Application & The “Trench” Experience
During a hydrocracker unit startup, a loose probe caused multiple false alarms. The existing relay logic tripped the wrong equipment. After reconfiguring the 149992-01 with tighter 2oo3 voting on the critical channels, nuisance trips disappeared while keeping full protection. The unit came online smoothly and stayed there.
Niche Applications
- Custom ESD logic for FCC unit feed pumps
- Grouped alarm annunciation for steam turbine auxiliary systems
- Voting-based trips on multi-machine trains in gas processing plants

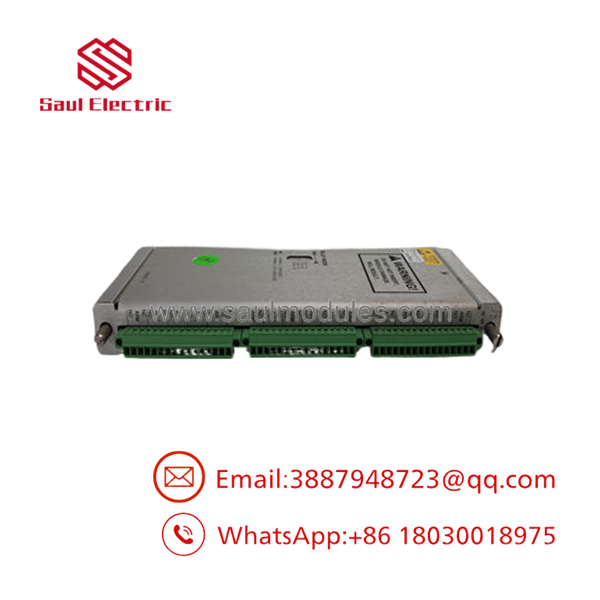

- 149992-01

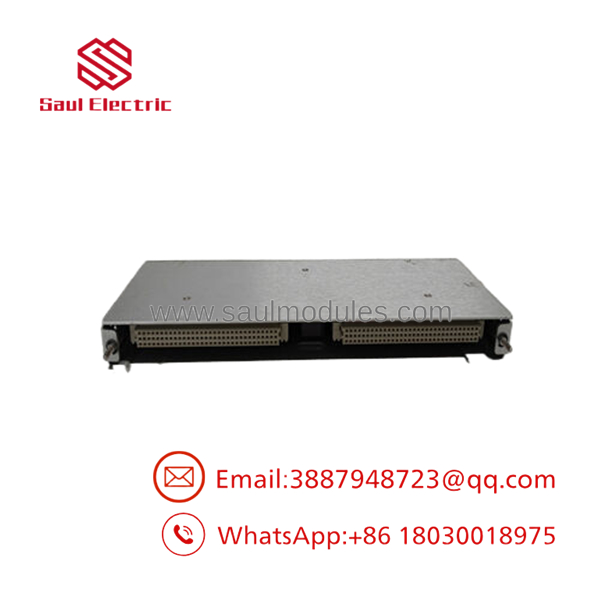

- 149992-01
Transparency SOP: QA & Testing
Every 149992-01 gets bench tested in a live 3500 rack. We program sample logic, cycle each relay under load, and verify isolation and contact resistance. Thermal and vibration stress tests follow before final acceptance. Full configuration and test reports ship with New Surplus units.
The Veteran’s Tech Trap Guide
⚠️ Logic Programming — Default settings are usually not what you want. Always verify and document the relay logic in the rack configuration software after replacement.
PRO TIP: Use the software simulation mode to test complex voting before downloading to a live rack.
⚠️ Contact Rating — Do not exceed 5A resistive. Inductive loads need proper suppression or interposing relays to prevent welded contacts.
Dynamic FAQ
Q: How many relays does the 149992-01 provide? A: Sixteen independent SPDT relays in a single module.
Q: Can each relay have different logic? A: Yes. The 3500 Rack Configuration Software lets you define unique logic for every relay.
Q: Is this module hot-swappable? A: Yes, it supports replacement while the rack remains powered.
Q: What warranty do New Surplus units carry? A: One full year against defects.
Q: Does it work in TMR racks? A: Yes, the 3500/33 integrates well with TMR configurations for enhanced reliability.
Q: How do I monitor relay status? A: Front panel LEDs plus software diagnostics show coil status and configuration details for each channel.
