Product Introduction
The Bently Nevada 3500/05 is the central structural chassis for the entire 3500 Machinery Protection System. Available in standard 19-inch rack-mount, panel-mount, or bulkhead configurations, this enclosure hosts the system power supplies, keyphasor cards, main CPU/TDI modules, and individual machinery monitoring cards across its backplane architecture. It creates the physical and electrical backbone for critical plant asset protection.
Unlike basic card cages, the 3500/05 backplane integrates high-speed digital buses alongside redundant power rails. It allows modules to talk to one another for voting logic (like 2-out-of-3 trip configurations) without needing a maze of external wire jumpers. The chassis design ensures proper airflow distribution and shield integrity, preventing high-frequency noise from corrupting delicate analog vibration signals in tough industrial spaces.
Key Technical Specifications
| Parameter | Value |
| Part Number | 3500/05 |
| Manufacturer | Bently Nevada (Baker Hughes) |
| Rack Sizes / Slot Capacity | Full-Size (14 Monitor Slots) or Half-Size (7 Monitor Slots) |
| Mounting Options | 19-Inch EIA Rack Mount, Panel Mount, Bulkhead Mount |
| Power Supply Slots | Dual slots (Position 1 & 2) for full N+1 power redundancy |
| Backplane Bus Type | Proprietary high-speed internal digital & analog signal bus |
| Operating Temperature | -30°C to +65°C (-22°F to +149°F) |
| Storage Temperature | -40°C to +85°C (-40°F to +185°F) |
| Humidity Limits | 95% non-condensing |
| Construction | Heavy-gauge aluminum and passivated steel construction |
| Dimensions (Full 19″ Rack) | 482.6 mm x 266.7 mm x 248.9 mm (19.0 in x 10.5 in x 9.8 in) |
| Weight (Empty Rack) | 6.8 kg (15.0 lbs) approx. |
Application Scenarios & The “Trench” Experience
When an old chassis goes down, your whole safety net vanishes. During a turnaround at a Gulf Coast ethylene plant, contractors accidentally bent the backplane pin assembly on an old 3500/05 frame while jamming a module in sideways. The whole rack threw system-wide hardware faults, dropping communications to the DCS and holding up startup. We scrambled a pre-tested 3500/05 frame to the site, swapped the power supplies and monitor cards over, landed the rear connector blocks, and had the rack fully healthy in under two hours.
- Power Generation Plants – Main Steam Turbine-Generator Sets – Forms the core hardware chassis for continuous shaft vibration, thrust, and phase reference monitoring.
- Petrochemical Refineries – Wet Gas Compressor Trains – Houses redundant power supplies and voting monitor cards for high-reliability machinery shutdown schemes.
- Pipeline Pumping Stations – Multi-Stage Crude Oil Transfer Pumps – Compact panel-mount or bulkhead 3500/05 frames protect remote pump stations with local relay outputs.
- Marine & Offshore Platforms – Main Propulsion Gas Turbines – Delivers structurally rugged, vibration-tested housing for monitoring cards in high-sea environments.

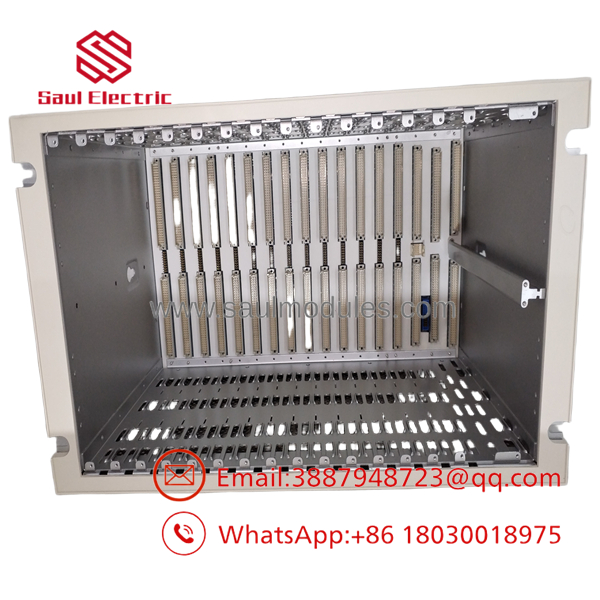

3500/05

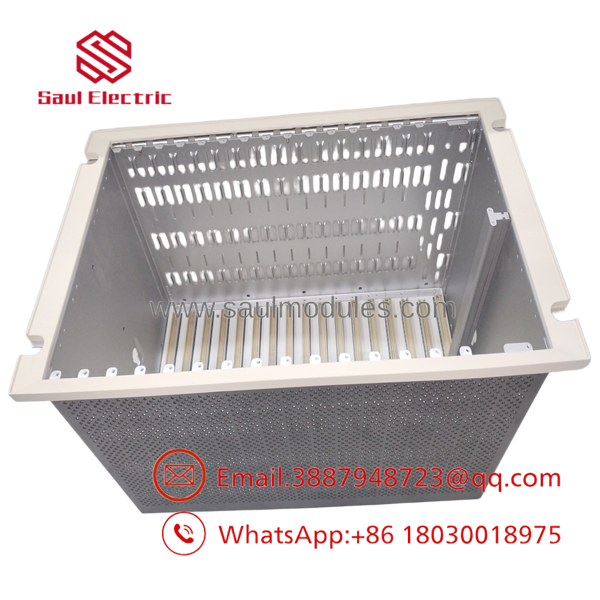

3500/05
Transparency SOP: Quality Assurance & Testing
We don’t just ship empty metal frames; every 3500/05 backplane is electrically stressed and validated before it leaves our shop:
- Physical & Backplane Pin Audit: Inspect the entire card cage structure, guide rails, alignment pins, and rear connector blocks. Every single gold-plated backplane pin is inspected under magnification for bends, corrosion, or trace damage.
- Power Bus Resistance & Continuity: Megger-test power rails and verify ground bus isolation to prevent short circuits before high current is ever applied.
- Live Load Backplane Stress Test: Populate all slots with live 3500 cards (Power Supplies, 3500/22M, 3500/42M). Power up the rack to full load for 24 hours to check for thermal breakdown or voltage drop on backplane trace paths.
- Communication & Address Bus Check: Run Bently Nevada Rack Configuration Software across the entire chassis to ensure slot addressing is 100% accurate across all 14 card positions.
- Protective Packaging: Ship in heavy-duty, custom foam-cushioned enclosures to guarantee the chassis doesn’t warp or flex during transit.
The Veteran’s Tech Trap Guide (Crucial Value-Add)
- ⚠️ Backplane Pin Realignment: NEVER force a card into a 3500/05 slot if you feel resistance. The card edge pins on the backplane can bend easily. If a pin bends and shorts against an adjacent pin, you can burn out the 24V DC internal power rail for the whole rack.
- ❗ Panel Cutout vs. 19-Inch Mount: Pay attention to your ordering option numbers! A standard 19-inch rack-mount chassis (Option 01) will not fit straight into a cutout designed for a panel-mount chassis (Option 02) without adapter plates. Double-check your cabinet dimensions beforehand.
- ⚠️ Grounding Terminal Lug: Do NOT rely solely on the cabinet rack screws to ground the 3500/05 frame. Always run a dedicated heavy-gauge copper grounding strap (minimum 10 AWG) from the ground lug on the back of the 3500/05 directly to your plant’s main instrument ground bus bar.
- ❗ Rear Connector Fasteners: When landing field I/O modules on the back of the 3500/05 rack, tighten the retaining screws evenly. Uneven torque on rear connector blocks can flex the backplane PCB slightly, leading to intermittent signal drops on adjacent monitor channels.
Frequently Asked Questions (FAQ for Conversion)
Q: Does the 3500/05 chassis come with power supplies and monitor cards included?
A: No. The 3500/05 is the structural rack and backplane assembly. Power supplies, TDI cards, monitor modules, and rear I/O connectors are purchased separately based on your specific machine monitoring needs.
Q: What is the difference between a Full-Size and Half-Size 3500/05 rack?
A: A full-size rack offers 14 available slots for monitoring modules (plus power supply and TDI slots). A half-size rack is narrower, offering 7 available monitor slots for smaller machinery setups with space constraints.
Q: Can I convert a 19-inch rack-mount 3500/05 to a panel-mount configuration?
A: Yes, but you will need the specific OEM mounting bracket kit. To be honest, it is usually much easier and cleaner to buy the chassis pre-configured with the exact mounting option your cabinet calls for.
Q: What condition are these surplus 3500/05 chassis in?
A: We stock both New Surplus (factory sealed/unused in original box) and fully re-certified pre-owned racks. Every rack undergoes 100% physical pin inspections and backplane power testing before shipment.
Q: How long is the warranty on a 3500/05 rack?
A: We back every 3500/05 chassis with a full 12-month replacement warranty from the date of delivery.
Q: Why buy a 3500/05 rack from surplus instead of directly from the OEM?
A: Lead times for factory-new Bently Nevada hardware can stretch for months during supply chain bottlenecks. We ship pre-tested stock within 24 to 48 hours, keeping your plant expansion or emergency shutdown repair right on schedule.
