After years of maintaining turbine protection systems, one lesson becomes obvious: monitoring modules rarely fail before the rack power does. The Bently Nevada 3500/15-05-05-00 (106M1081-01) was developed for installations where a single power supply is considered an unnecessary operational risk.
This configuration installs two Universal AC power supplies in the dedicated power slots of the 3500 rack. If one supply is lost, the remaining unit continues powering the rack without interrupting machinery monitoring, making it suitable for applications where continuous protection is mandatory.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Bently Nevada |
| Model | 3500/15-05-05-00 |
| Ordering Number | 106M1081-01 |
| Product Type | Redundant Power Supply Module |
| System Series | 3500 Machinery Protection System |
| Upper Power Supply | Universal AC (85–264 Vac RMS) |
| Lower Power Supply | Universal AC (85–264 Vac RMS) |
| Input Frequency | 47–63 Hz |
| Installation Location | Left-side dual power supply slots |
| Redundancy | Automatic power supply redundancy |
| Hot Replacement | One supply may be replaced while the second remains operational (when redundancy is maintained) |
| Typical Operating Temperature | -30°C to +65°C |

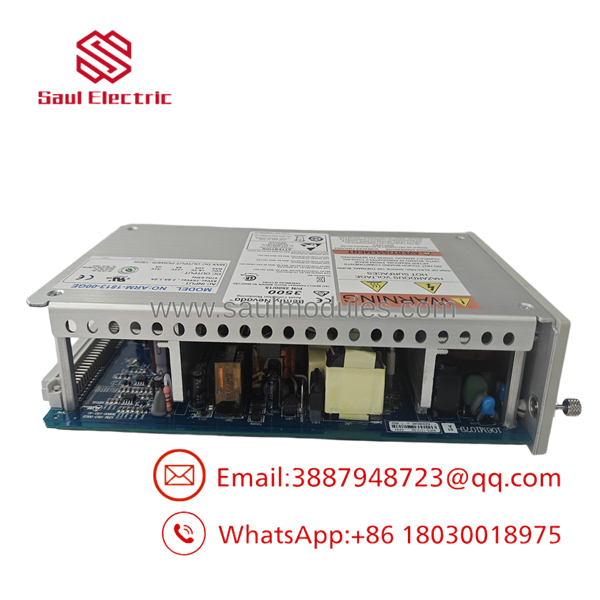

3500/15-05-05-00 106M1081-01

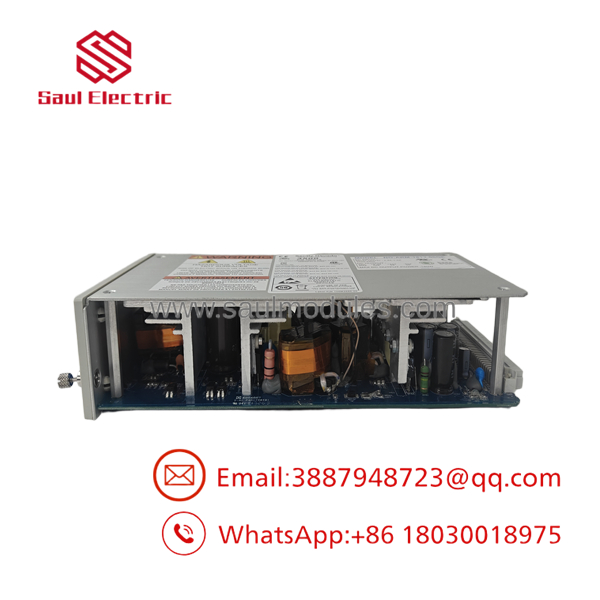

3500/15-05-05-00 106M1081-01
Field Application & The “Trench” Experience
A refinery scheduled a turbine shutdown to investigate sporadic rack power alarms that appeared only during utility voltage fluctuations. Diagnostics showed that one of the redundant supplies had silently failed months earlier, leaving the rack operating on a single supply.
Installing a replacement 3500/15-05-05-00 (106M1081-01) restored full redundancy. During post-maintenance testing, engineers intentionally disconnected one AC source. The rack continued operating normally, confirming that redundancy had been re-established before production resumed.
Typical applications include:
- Steam turbine overspeed protection systems
- Ethylene compressor vibration monitoring
- LNG refrigeration train machinery protection
Transparency SOP: QA & Testing
Every New Surplus or Refurbished unit completes a documented inspection process before shipment.
- Verify complete ordering code and hardware revision.
- Inspect connectors, PCB assemblies, heat-generating components, and enclosure integrity.
- Apply Universal AC input voltage across the specified operating range.
- Measure regulated output voltage under simulated rack load.
- Verify redundant operation by alternating between power supplies.
- Perform thermal stability testing before final packaging in ESD-safe materials.
The Veteran’s Tech Trap Guide
⚠️ Don’t Order by “3500/15” Alone
The option code 05-05-00 identifies a dual Universal AC redundant configuration. Ordering the wrong suffix can result in receiving a single power supply instead of a redundant assembly.
⚠️ Verify Both Supply Positions
A rack may appear healthy even when only one power supply is functioning. Always inspect the rack diagnostics to confirm both supplies are active.
PRO TIP:
The 106M1081-01 hardware is associated with the upgraded Universal AC power supply design. When servicing older systems, verify compatibility with the installed front and rear module revisions before mixing hardware generations.
Dynamic FAQ
Q1. What does the 05-05-00 configuration indicate?
It specifies Universal AC power supplies in both the upper and lower power supply slots, providing a redundant power configuration for the 3500 rack.
Q2. What is 106M1081-01?
It is the ordering number associated with the upgraded Universal AC power input module used with the 3500/15 power supply assembly.
Q3. Can one power supply be replaced while the system remains online?
Yes. When the rack is equipped with two functioning redundant power supplies, one module can typically be removed and replaced without interrupting rack operation. Plant maintenance procedures should always be followed.
Q4. Is this module compatible with every Bently Nevada 3500 rack?
It is designed for the 3500 Series machinery protection system. Compatibility should be confirmed by verifying the complete ordering code, hardware revision, and rack configuration before installation.
Q5. How are refurbished modules tested?
Each refurbished unit undergoes visual inspection, electrical verification, redundant failover testing, load testing, and operational burn-in before shipment.
Q6. Are New Surplus units genuine OEM products?
Yes. New Surplus units are unused original inventory that has never been placed into service. The product condition and inspection results are documented and identified before shipment.
