Description
Product Introduction
The Bently Nevada 3500/15-05-05-00 is a dual-supply AC power module kit designed for installation in the primary slots of a 3500 system rack chassis. This specific configuration (-05-05-00) packs two High-Voltage AC Power Supplies (175 VAC to 264 VAC input range) alongside standard rear PIM (Power Input Module) hardware. It drops straight into Position 1 and Position 2 on the 3500/05 chassis backplane to deliver continuous, conditioned DC power across the entire rack rail system.
Operating in a full N+1 redundant configuration, the dual-supply setup ensures that if one AC supply or supply line drops out, the second supply instantly assumes the total load without causing a reboot or glitch in critical machinery protection channels. The 3500/15 architecture shields sensitive monitoring electronics from plant electrical transients, severe line spikes, and brownout conditions commonly found in heavy industrial distribution networks.
Key Technical Specifications
| Parameter | Value |
| Full Part Number | 3500/15-05-05-00 |
| Manufacturer | Bently Nevada (Baker Hughes) |
| Option Breakdown | -05 (Top: High Voltage AC) / -05 (Bottom: High Voltage AC) / -00 (Agency Approval: Standard/None) |
| Input Voltage Range | 175 to 264 VAC RMS (Universal High-Voltage AC Line) |
| Input Frequency | 47 to 63 Hz |
| Maximum Peak Inrush Current | 40 A per supply at 220 VAC input |
| Output Capabilities | Supplies regulated internal DC power voltages to 3500 backplane rails |
| Power Consumption | Up to 300 Watts output capacity depending on rack load |
| Redundancy Type | Dual-redundant, load-sharing configuration across Positions 1 & 2 |
| Operating Temperature | -30°C to +65°C (-22°F to +149°F) |
| Storage Temperature | -40°C to +85°C (-40°F to +185°F) |
| Dimensions (H x W x D) | 120.7 mm x 50.8 mm x 251.5 mm (4.75 in x 2.0 in x 9.9 in) per module |
Application Scenarios & The “Trench” Experience
When an instrument power supply fails on a critical turbomachinery train, your entire protection system goes dark—leaving your machine running blind. We once handled a emergency call at a paper mill where a lightning surge blew the primary AC supply on an un-redundant 3500 rack. The whole vibration monitoring system dropped offline, forcing the plant manager to make an agonizing call: risk running an unmonitored $3M boiler feed pump or shut down the entire line. By upgrading them on the spot to a redundant 3500/15-05-05-00 dual AC setup fed from separate UPS feeds, we ensured a single line fault would never hold their production hostage again.
- Petrochemical Plants – Ethylene Cracker Turbines – Provides fully redundant N+1 power to prevent catastrophic trips on critical turbomachinery during power fluctuations.
- Power Generation Facilities – Combined-Cycle Steam/Gas Turbines – Regulates line voltage spikes and sags on utility AC feeds before they can affect delicate proximitor and thrust monitoring channels.
- LNG Import/Export Terminals – Boil-Off Gas Compressors – Delivers clean, isolated backplane power for continuous machinery protection in harsh coastal marine conditions.
- Steel Mills & Heavy Manufacturing – Drive Motor Bearing Monitoring – Prevents spurious trips caused by high-voltage electrical noise generated by adjacent massive VFD drives.

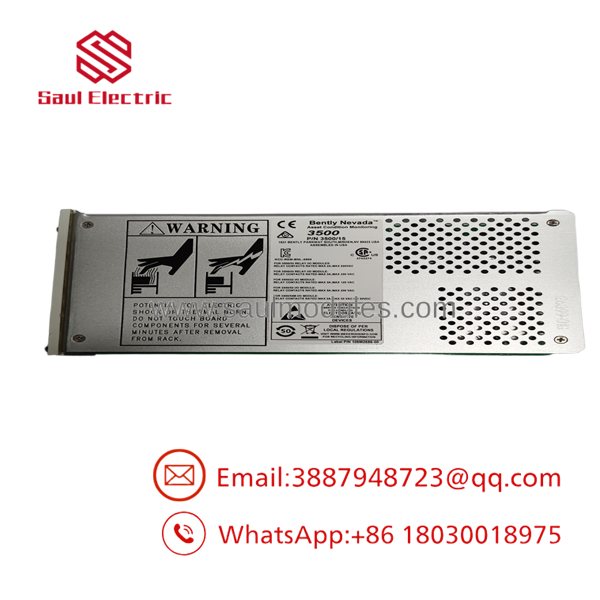

3500/15-05-05-00

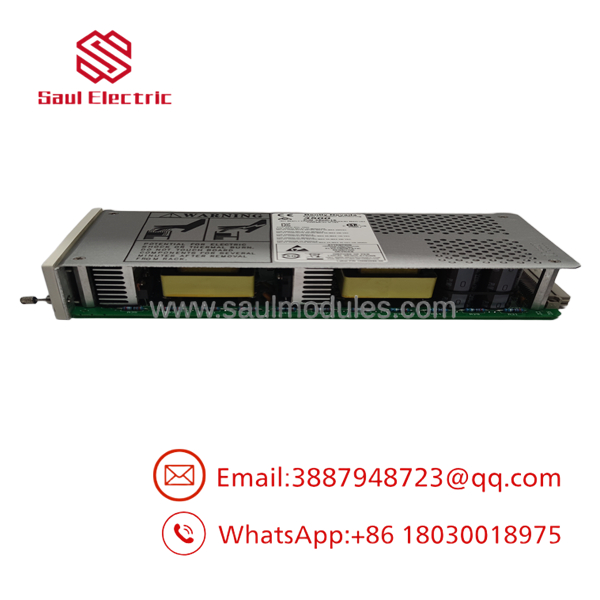

3500/15-05-05-00
Transparency SOP: Quality Assurance & Testing
Power supplies take the brunt of plant electrical stress. We don’t just check for a power light—we stress-test every 3500/15 supply on a dedicated load bench before it ships:
- Inbound Component & Thermal Inspection: Open housing to check for bulging electrolytic capacitors, heat-stressed transformer windings, burned trace pads, or degraded output chokes.
- High-Voltage Insulation Testing: Perform dielectric withstand (Hi-Pot) checks between AC line inputs, chassis earth, and output DC grounds to confirm primary-to-secondary isolation.
- Full-Load Thermal Burn-In: Seat the module into a dedicated test chassis and draw maximum rated wattage (up to 300W load) for 12 straight hours while monitoring output ripple with an oscilloscope.
- Seamless Redundancy Failover Check: Run two supplies together in a live 3500 chassis; violently pull the AC line cord on Supply 1 under full load to confirm zero drop in output rail voltage or TDI heartbeat.
- ESD Packaging & Heavy-Duty Crating: Seal each supply in thick anti-static shielding bags and pack in custom high-density foam cells engineered to absorb drop impacts during transit.
The Veteran’s Tech Trap Guide (Crucial Value-Add)
- ⚠️ Voltage Option Mismatch: Pay close attention to the option digits! The
-05-05designation means BOTH supplies are High-Voltage AC (175–264 VAC). If your plant supply panel provides 110/120 VAC, this module will not start up. For 110 VAC inputs, you need the Low-Voltage AC options (-03or-04). - ❗ Never Run Mixed Voltage Inputs Unchecked: If you are running redundant feeds, ensure both AC source lines match the supply specs. Trying to feed 120 VAC into a
-05High-Voltage AC supply will result in a dead supply fault light on the front panel. - ⚠️ Rear Power Input Module (PIM) Alignment: The 3500/15 supply requires a matching rear PIM module installed on the back side of the rack. Never force a front supply card in if it doesn’t mate cleanly with the rear PIM connectors—you can break the internal terminal pins.
- ❗ Hot-Swapping Power Cards: Yes, you can hot-swap ONE failed 3500/15 supply while the other supply is healthy and running. BUT—take a look at the status LEDs first! If the active supply shows any fault light, pulling the failed card could drop the remaining power rail and trip the whole rack.
Frequently Asked Questions (FAQ for Conversion)
Q: What does the exact part number breakdown “3500/15-05-05-00” signify?
A: “3500/15” is the AC/DC Power Supply series. The first “-05” means the Top Supply position is High-Voltage AC (175–264 VAC). The second “-05” means the Bottom Supply position is also High-Voltage AC. The “-00” indicates standard agency approvals (e.g., CSA/NRTL/CE).
Q: Can I run this supply on a standard 120V AC wall outlet?
A: No. The -05 high-voltage options are designed strictly for 175 to 264 VAC inputs (typically 220V/230V/240V utility or UPS circuits). Connecting 120 VAC will not damage it, but it will not supply sufficient DC voltage to power up the rack.
Q: Do I have to install both power supply cards for the rack to work?
A: No, a 3500 rack can run on a single 3500/15 supply card. However, installing both cards provides true N+1 redundant power supply, meaning if one card fails or loses its AC supply line, the other takes over seamlessly without losing vibration protection.
Q: Are these power supply units factory new or reconditioned?
A: We stock both New Surplus (factory-sealed unused OEM stock) and fully bench-tested re-certified units. Every unit passes full load burn-in testing prior to dispatch.
Q: What warranty is included with the 3500/15-05-05-00?
A: We provide a full 12-month replacement warranty on every 3500/15 power supply module kit from the day it arrives at your facility.
Q: Why buy Bently Nevada power supplies through surplus channels?
A: OEM lead times for 3500 series power supplies often exceed several months. We maintain physical stock in our warehouse ready for immediate dispatch, saving you from prolonged machinery downtime or delayed turnarounds.
