Product Introduction

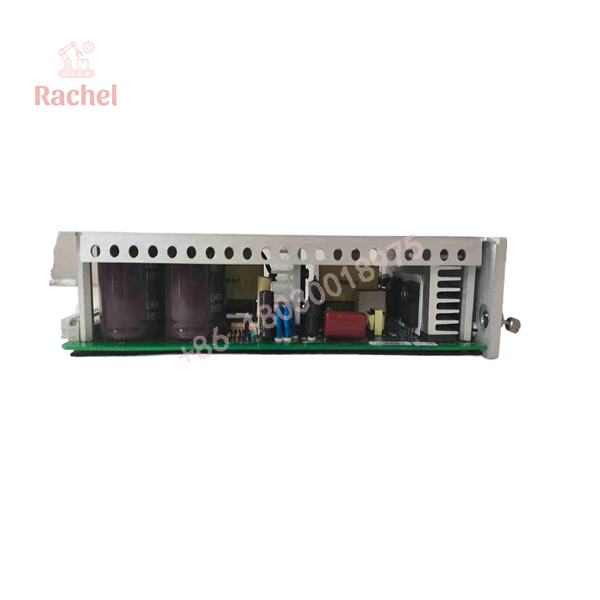

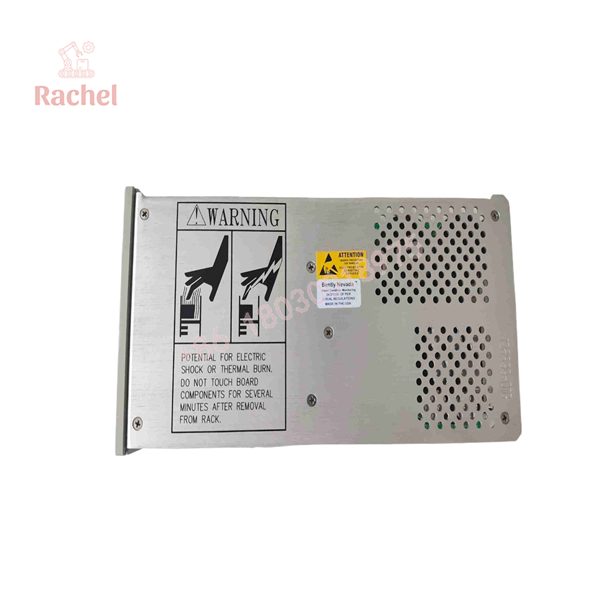

The Bently Nevada 3500/15 assembly featuring the 127610-01 Power Input Module (PIM) is the High Voltage AC/DC power supply combination for the 3500 Machinery Protection System. The 3500/15 system is a two-part hardware set: the main 3500/15 power supply module inserts into the front of the rack, while the 127610-01 PIM installs directly behind it on the rear chassis backplane to terminate incoming plant line power.
Designed to handle 85–264 VAC or 88–300 VDC, the 127610-01 High Voltage PIM conditions incoming line power with built-in transient suppression, fusing, and noise filtering before passing it to the front supply module. Installing dual 3500/15 supplies with 127610-01 PIMs creates a fully redundant, hot-swappable power architecture where either supply can carry 100% of the rack load without dropping protection.
Key Technical Specifications
| Parameter | Options / Configuration Value |
| Front Supply Compatibility | Bently Nevada 3500/15 High Voltage Power Supply Module |
| Rear PIM Part Number | 127610-01 (High Voltage AC/DC Power Input Module) |
| AC Input Range | 85 VAC to 264 VAC (47 Hz to 63 Hz nominal) |
| DC Input Range | 88 VDC to 300 VDC |
| Peak Power Consumption | 175 Watts maximum input |
| Backplane Power Delivery | Supplies up to 135 Watts continuous to internal 3500 rack bus |
| Form Factor | Half-height module (occupies 1 of 2 left power slots) |
| Operating Temperature | -30°C to +65°C (-22°F to +150°F) |
| Agency Approvals | CSA, ATEX, IECEx, CE, Class I Div 2 / Zone 2 compliant |
Application Scenarios & The “Trench” Experience
Picture this: A main sub-station breaker trips at a LNG liquefaction terminal during severe summer weather. The primary 120 VAC utility line feeding the main refrigeration turbine protection rack drops dead instantly. Because the 3500 rack was outfitted with dual 3500/15 supplies using 127610-01 PIMs—one wired to 120 VAC plant utility and the second to the station’s 125 VDC emergency battery bank—the rack draws battery power seamlessly. Not a single vibration channel drops, and zero false machinery shutdown trips are generated.
- Critical Machinery Protection Racks – Power Station Turbines & Generators – Provides reliable high-voltage AC utility powering with seamless backup to 125 VDC station battery rails.
- Refinery & Petrochemical Plants – Ethylene Compressor Skids – Accepts standard 110V/220V AC feeds to drive 3500/22M, 3500/42M, and 3500/32 relay cards.
- Offshore Facilities – Main Export Pumps – Operates across wide AC voltage fluctuations (85–264 VAC) without dropping output voltage to sensitive vibration monitors.
Transparency SOP: Quality Assurance & Testing
We test every power supply and PIM pair on live 3500 rack chassis prior to shipment:
- Physical & Terminal Inspection: Check terminal block screws, housing guide rails, and rear multi-pin connectors on the 127610-01 PIM for bent pins or corrosion.
- High Voltage Power-On Line Sweep: Apply 85 VAC, 120 VAC, 240 VAC, and 125 VDC inputs across the 127610-01 terminal block; verify nominal regulated output voltages on internal backplane rails (+5 VDC, +15 VDC, -15 VDC, -24 VDC).
- Full-Load Burn-In Test: Run supply under 80%+ power load inside a fully populated test chassis to verify thermal stability and fan cooling efficiency.
- Hot-Swap Redundancy Verification: Test seamless failover switching when paired with a secondary supply card under live load conditions.
- Final Anti-Static Packaging: Enclose in static-shielding bags and ship inside custom foam-lined cartons.
3500/15 127610-01
3500/15 127610-01
The Veteran’s Tech Trap Guide
- ⚠️ Matching PIM Part Numbers to Front Supplies: The 127610-01 is specifically the High Voltage AC/DC PIM. You MUST pair it with a High Voltage front supply card. Connecting a Low Voltage 3500/15 front card (18–36 VDC) to a 127610-01 High Voltage PIM receiving 120 VAC will destroy the front supply module immediately!
- ❗ Wiring Terminal Security: The 127610-01 PIM uses heavy-duty screw terminals for incoming utility wiring. Ensure wire ferrules are properly crimped and terminal screws are torqued down snugly. Loose AC neutral or line wires can cause arcing and power dropouts under heavy skid vibration.
- ⚠️ Combining AC and DC Inputs: You can safely run one 3500/15 supply on 120 VAC and the second redundant 3500/15 supply on 125 VDC or 24 VDC (using its respective PIM). This provides the highest level of system reliability against plant-wide power outages.
- ❗ Half-Height Slot Cover: If your rack uses only a single 3500/15 supply, you MUST install a half-height blanking plate over the empty power slot to maintain correct cooling airflow across the chassis monitors.
Frequently Asked Questions (FAQ)
Q: What is the difference between part number 3500/15 and 127610-01?
A: 3500/15 is the overall model designation for the power supply system (and refers to the front card), while 127610-01 is the specific hardware part number for the rear High Voltage Power Input Module (PIM) where line power cables land.
Q: Can the 127610-01 PIM accept both AC and DC voltages?
A: Yes. The 127610-01 is a universal High Voltage PIM rated for 85–264 VAC (47–63 Hz) or 88–300 VDC.
Q: Is the 3500/15 127610-01 module hot-swappable?
A: Yes. If the 3500 rack contains dual redundant power supplies and one remains healthy, you can hot-swap the faulty supply or PIM without disrupting live machine monitoring.
Q: What fuse rating is used on the 127610-01 PIM?
A: The 127610-01 PIM contains internal line fuses rated specifically for high-voltage protection. Always replace blown fuses with factory-specified fast-acting high-interrupting rating fuses.
