Bently Nevada 3500/20 125744-02 Rack Interface Module

Description

Product Introduction

The Bently Nevada 3500/20 125744-02 is the main processor board for the standard 3500 Rack Interface Module (RIM). Positioned directly adjacent to the rack power supplies in Slot 1 (next to the TDI/RIM slot positions), this card serves as the central brain for system configuration, rack event logging, and serial communication. It drives the internal rack bus, enabling 3500 Rack Configuration Software to configure individual monitor channels, set alarm thresholds, and pull diagnostic logs.

While individual monitor cards handle local machine protection independently, the 125744-02 RIM card collects system-wide state data, manages system resets, and distributes keyphasor/timing information across the chassis backplane. The -02 hardware revision features upgraded processing chips and refined serial driver protection compared to earlier releases, delivering rock-solid serial Modbus communication to host DCS and SCADA networks without bogging down rack processing speeds.

Key Technical Specifications

Application Scenarios & The “Trench” Experience

When a 3500 RIM card freezes or fails, you won’t necessarily trip the machine—because 3500 monitor cards execute protection logic independently. But you will lose all remote visibility, alarm event logging, and software access. During a turnaround at a offshore platform, the automation team lost connection to a critical 3500 rack on a main export compressor. They couldn’t load new configuration files or verify vibration baselines. They suspected a blown serial chip on an old 125744-01 card. We dispatched a tested 125744-02 main card, swapped the board into the front slot, uploaded the saved rack file via serial port, and restored full DCS communications in 20 minutes.

• Oil Refineries & Petrochemical Works – Centralized Turbomachinery Monitoring – Transmits aggregate rack alarm status and vibration overall values to host DCS/PLC networks via Modbus.
• Power Generation Facilities – Combined-Cycle Turbine Control – Enables remote configuration of channel trip limits and 2-out-of-3 voting parameters from safe control rooms.
• Gas Compression & Pipeline Stations – Remote Compressor Monitoring – Feeds diagnostic event logs and system health status to telemetry units across long-distance networks.
• Marine & Offshore Platforms – Main Drive Turbines – Manages central rack resetting and OK-relay drive outputs in heavy marine environments.

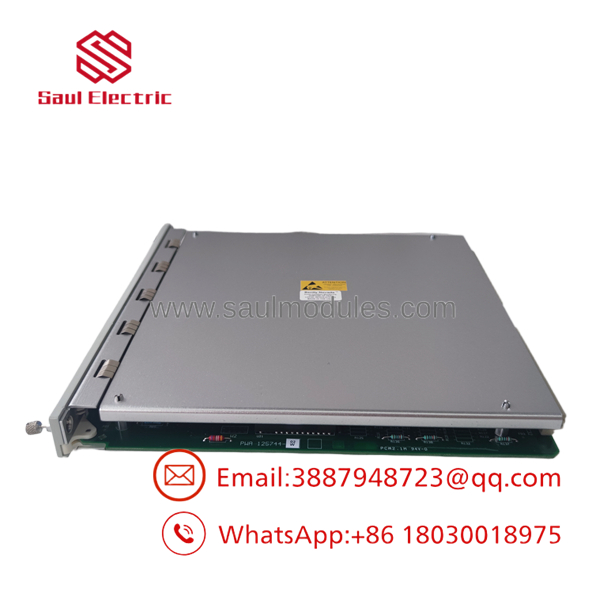

3500/20 125744-02

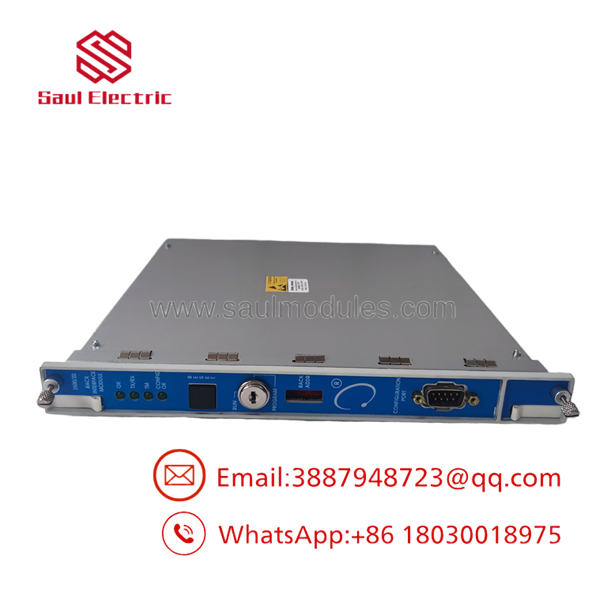

3500/20 125744-02

Transparency SOP: Quality Assurance & Testing

We don’t just ship circuit boards; we bench-test every 125744-02 module inside an active 3500 chassis before it leaves our facility:

1. Physical & Component Audit: Inspect the multi-layer PCB for hair-line trace cracks, damaged edge connectors, swollen capacitors, or heat stress on serial driver ICs.
2. Backplane Bus Insertion: Seat the 125744-02 into a live Bently Nevada 3500/05 test rack equipped with dual power supplies and multiple 3500/42M monitor cards.
3. Firmware & Configuration Handshake: Connect via 3500 Rack Configuration Software over serial/front-panel interface. Download, modify, and verify a complete 14-slot rack configuration file to validate EEPROM integrity.
4. Serial Modbus Communication Stress Test: Run a continuous Modbus RTU query stream across the serial channels at maximum baud rate for 8 hours, verifying 0% packet loss or checksum errors.
5. ESD Protection & Packaging: Vacuum-seal the card in static-shielding metallic bags with fresh desiccant prior to packing in custom foam cells.

The Veteran’s Tech Trap Guide (Crucial Value-Add)

• ⚠️ 3500/20 RIM vs. 3500/22M TDI Confusion: Do NOT confuse the 3500/20 RIM with the newer 3500/22M Transient Data Interface (TDI). While both occupy the same physical slot area, they use different rear I/O modules and different rack firmware structures. A 3500/20 125744-02 cannot be dropped into a rack configured for a 3500/22M TDI without altering the software configuration and rear hardware!
• ❗ Backplane Pin Alignment: The RIM card uses high-density backplane pin arrays. Slide the card gently along the guide rails. If you meet resistance halfway in, stop. Forcing it will bend the backplane pins, requiring a full rack disassembly to fix.
• ⚠️ Firmware Revision Mismatch: When replacing a 125744-02, double-check your rack configuration software version. If the new card carries a vastly different firmware version than your original board, your software may report a “Hardware/Firmware Mismatch” error until you update the rack file or match firmware revisions.
• ❗ Configuration Backup is Essential: Always make sure you have a saved .3500 rack configuration file on your laptop before pulling an old RIM card. While monitor cards keep their basic parameters, the RIM card stores key rack-level communication setups and system configuration tables.

Frequently Asked Questions (FAQ for Conversion)

Q: What is the difference between part number 3500/20 and board number 125744-02?

A: “3500/20” is the complete system designation for the Rack Interface Module. “125744-02” is the exact printed circuit board assembly (P/N) of the main front processor card itself.

Q: Can I hot-swap the 3500/20 125744-02 card while the machine is running?

A: Yes, the 3500/20 card can be hot-swapped without interrupting the trip-protection functions performed by the individual 3500 monitor cards (like 3500/42M or 3500/40M). However, remote Modbus communications and software visibility will drop temporarily while the card is out.

Q: Is the 125744-02 backward-compatible with older 125744-01 cards?

A: Yes. The -02 hardware revision is a direct, backward-compatible replacement for the older -01 revision board, featuring improved component stability and updated line-driver circuitry.

Q: Do I need a specific rear I/O module to work with the 125744-02 card?

A: Yes. The 3500/20 main card requires a matching 3500/20 rear Rack Interface I/O module (such as 125760-01 or 125768-01 for RS232/RS422/RS485 interface options).

Q: What warranty do you offer on this card?

A: We back every 3500/20 125744-02 module with a full 12-month replacement warranty from the date of shipment.

Q: Why buy this surplus card instead of waiting for factory ordering?

A: Bently Nevada 3500 legacy components often carry extended factory lead times. We hold physical, bench-tested stock ready for immediate dispatch, getting your monitoring system fully operational without long downtime delays.
