Description
Product Introduction & Engineering Value
The difference between a normal vibration alarm and a useful diagnostic event is often the data captured during the seconds before failure. The Bently Nevada 3500/22-01-01-00 Transient Data Interface Module provides that missing record by collecting steady-state and transient machinery information from the 3500 rack.
Installed beside the rack power supplies, the TDI acts as the communication gateway between the 3500 monitoring system and external software platforms such as System 1. It combines rack interface functions with data collection capability, allowing engineers to review startup, shutdown, and trip-related machine behavior.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Bently Nevada |
| Model | 3500/22 |
| Part Number | 350022-01-01-00 |
| Module Type | Transient Data Interface (TDI) |
| System Platform | 3500 Machinery Protection System |
| Installation Position | Slot adjacent to rack power supplies |
| Transient Data Interface Type | 01 – Standard monitoring application |
| I/O Module Type | 01 – 10Base-T / 100Base-TX Ethernet |
| Agency Approval | 00 – No agency approval option |
| Communication Interface | Ethernet + local service interface |
| Compatible Software | System 1 Machinery Management Software |
| Compatible Monitor Modules | 3500 M-Series monitor modules |
| Typical Application | Turbine, compressor, pump machinery condition monitoring |
Field Application & The “Trench” Experience
A power plant maintenance team noticed that turbine vibration alarms were correctly appearing on the local 3500 rack, but historical waveform information was missing from the diagnostic workstation. The protection system was still functioning, but engineers had lost access to detailed event records needed for root-cause analysis.
Inspection showed that the aging 3500/22-01-01-00 TDI module was no longer communicating properly with the plant monitoring network. After replacement and configuration verification, transient captures from turbine startup and load changes became available again.
Common application scenarios:
- Steam turbine startup and coast-down vibration analysis
- Centrifugal compressor surge investigation
- Generator bearing fault waveform collection

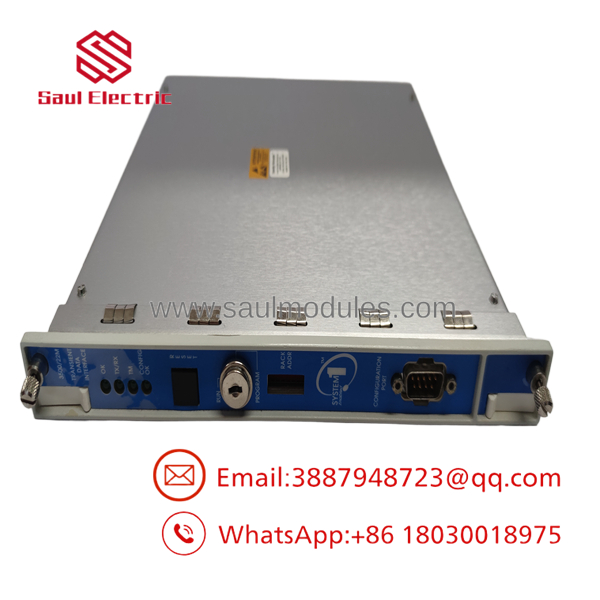

3500/22-01-01-00

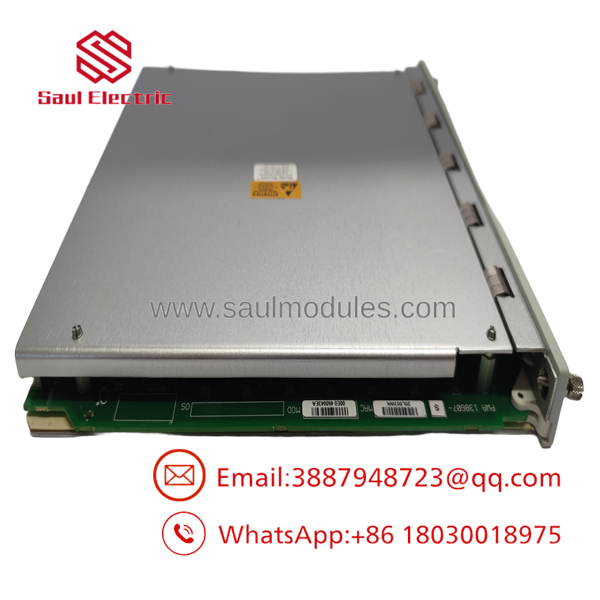

3500/22-01-01-00
Transparency SOP: QA & Testing
Before shipment, New Surplus and Refurbished units are processed through the following verification steps:
- Confirm the complete ordering code: 3500/22-01-01-00.
- Inspect front panel indicators, Ethernet connector, and rack edge contacts.
- Install the module in a compatible 3500 rack environment.
- Verify rack recognition and communication status.
- Test Ethernet communication and configuration access.
- Record inspection results and package using ESD protection.
The Veteran’s Tech Trap Guide
⚠️ Do Not Confuse the TDI With the Older RIM
The 3500/22 TDI replaced earlier rack interface approaches, but it is not always a direct drop-in replacement for every older configuration. Check firmware, rack revision, and software compatibility before installation.
⚠️ A Communication Failure May Not Be a TDI Failure
Before replacing the module, check Ethernet switches, network addressing, cables, and System 1 communication settings.
PRO TIP:
Save the existing rack configuration before removing the TDI. Communication modules often require fewer hardware changes than expected, but configuration recovery becomes much easier when the original settings are available.
Dynamic FAQ
Q1. What is the purpose of the Bently Nevada 3500/22-01-01-00?
The module collects steady-state and transient machinery data from a 3500 rack and transfers this information through Ethernet communication to monitoring and diagnostic software.
Q2. Is the 3500/22-01-01-00 a protection module?
No. The TDI supports data collection and communication functions. The primary machinery protection function remains with the installed 3500 monitor modules.
Q3. What Ethernet interface does this version use?
The 01 I/O option provides 10Base-T / 100Base-TX Ethernet communication.
Q4. Can this module replace a 3500/20 Rack Interface Module?
The 3500/22 was designed as an updated interface solution with additional transient data capabilities, but replacement depends on the existing rack hardware, firmware, and software configuration.
Q5. Are refurbished 3500/22-01-01-00 modules tested?
Yes. Refurbished units should undergo visual inspection, rack communication testing, Ethernet verification, and operational checks before shipment.
Q6. Are New Surplus units genuine OEM inventory?
New Surplus units are unused inventory originally manufactured for industrial applications. Product condition, testing status, and warranty coverage should be confirmed with the supplier before purchase.
