Description
Product Introduction & Engineering Value
A machinery protection system generates valuable operating data, but that information must reach diagnostic software before reliability teams can analyze equipment behavior. The Bently Nevada 3500/22M Transient Data Interface provides the communication path between the 3500 rack and host monitoring platforms.
The 138607-01 module is widely maintained in installed 3500 systems because it supports data collection, configuration access, and integration with Bently Nevada System 1 condition monitoring software. It allows plants to continue using existing protection architectures while maintaining modern diagnostic workflows.
Technical Specifications
| Specification | Details |
|---|---|
| Manufacturer | Bently Nevada |
| Model Number | 3500/22M |
| Part Number | 138607-01 |
| Product Type | Transient Data Interface Module |
| System Platform | Bently Nevada 3500 Machinery Protection System |
| Communication Interface | Ethernet communication |
| Primary Function | Rack data collection and external communication |
| Software Compatibility | Bently Nevada System 1 platform |
| Rack Position | Dedicated 3500 rack interface slot |
| Data Function | Static and transient machinery data transfer |
| Installation | 3500 rack-mounted module |
| Application | Machinery diagnostics and condition monitoring |
Field Application & The “Trench” Experience
A power generation plant operating multiple steam turbines relied on a Bently Nevada 3500 monitoring network for protection and predictive maintenance. During a reliability review, engineers noticed that vibration data from one turbine rack was no longer updating correctly in the plant diagnostic workstation.
The protection modules continued operating, but communication between the rack and monitoring software had become unreliable. The maintenance team identified the Transient Data Interface module as the failure point.
After installing a tested Bently Nevada 3500/22M 138607-01, technicians verified Ethernet communication, confirmed rack data availability, and restored access to historical and real-time machinery information.
Typical application scenarios include:
Steam turbine monitoring systems
- System 1 data collection
- Vibration trend analysis
- Transient event recording
Gas compressor stations
- Remote machinery diagnostics
- Condition monitoring networks
- Rack communication restoration
Industrial reliability programs
- 3500 cabinet upgrades
- Spare TDI inventory management
- Existing system communication maintenance
Transparency SOP: QA & Testing
Communication modules require more than a basic power test because data transfer reliability is critical.
Verification process:
1. Hardware inspection
- Confirm model and part number
- Inspect Ethernet and rack connectors
- Check front panel indicators
2. Electrical testing
- Verify rack power startup
- Confirm module recognition
- Check status LEDs
3. Communication validation
- Test Ethernet communication
- Verify rack data acquisition
- Confirm software connectivity
4. Final inspection
- Record test results
- Classify stock condition
- Package with ESD protection

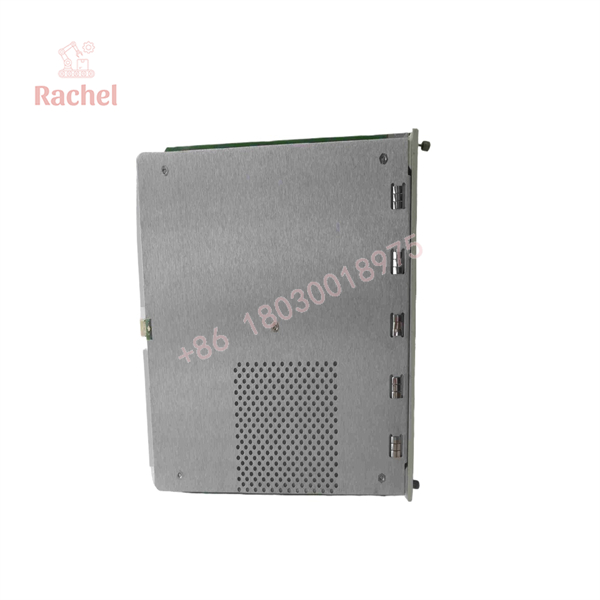

3500/22M 138607-01

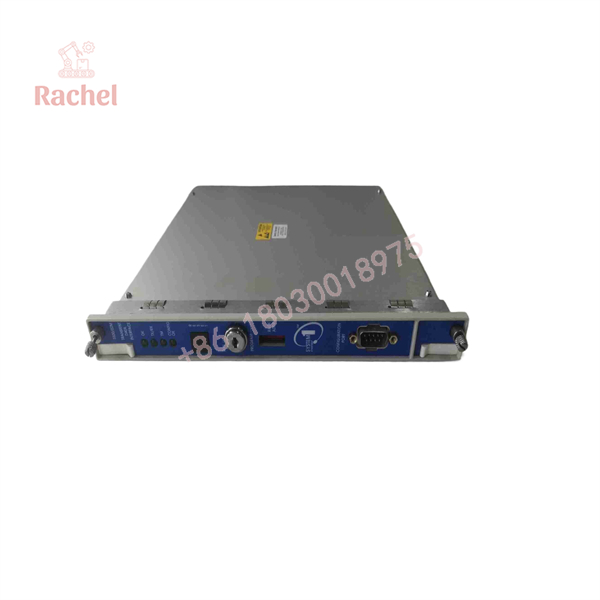

3500/22M 138607-01
The Veteran’s Tech Trap Guide
⚠️ PRO TIP: Do not replace the TDI before checking network settings.
Communication failures may come from IP configuration, network switches, or cable issues rather than the module itself.
⚠️ Check firmware compatibility.
3500/22M modules may require compatible firmware versions when integrated with existing 3500 racks and System 1 environments.
⚠️ Back up configuration data before replacement.
Replacing a communication module can require reviewing rack configuration, network parameters, and software connection settings.
Dynamic FAQ
Q1: What is the Bently Nevada 3500/22M 138607-01 used for?
The 3500/22M 138607-01 is a Transient Data Interface module that provides communication between a Bently Nevada 3500 rack and external monitoring software such as System 1.
Q2: Is the 3500/22M a vibration monitoring module?
No. It does not directly measure vibration. It collects and transfers data from installed 3500 monitoring modules for diagnostics and analysis.
Q3: What software is commonly used with the 3500/22M?
The module is commonly integrated with Bently Nevada System 1 condition monitoring software for machinery data analysis and trending.
Q4: What should be checked before replacing a 3500/22M 138607-01?
Verify:
- Complete part number
- Firmware compatibility
- Rack configuration
- Ethernet settings
- System 1 communication parameters
Q5: Are refurbished Bently Nevada 3500/22M 138607-01 modules tested?
Qualified automation suppliers typically perform visual inspection, electrical testing, rack recognition checks, and communication verification before shipment.
Q6: What warranty is available for this module?
Warranty terms depend on supplier policy, stock condition, and testing scope. Buyers should confirm warranty duration and inspection records before purchase.
Q7: Why do plants still use 3500/22M modules?
Many facilities operate long-term Bently Nevada 3500 machinery protection systems on critical assets. Maintaining spare TDI modules helps preserve communication between installed protection hardware and diagnostic software.
