Bently Nevada 3500/22M Transient Data Interface

Description

Product Introduction

The Bently Nevada 3500/22M is the core Transient Data Interface (TDI) module designed for the 3500 Machinery Protection System chassis. Occupying the dedicated RIM/TDI slot directly adjacent to the power supplies, this module acts as the primary communications and data aggregation bridge. It collects static operating values, time-stamped alarm event logs, and high-speed dynamic transient waveforms across the entire rack backplane.

Engineered to replace older 3500/20 Rack Interface Modules (RIM), the 3500/22M integrates direct Ethernet connectivity with processing power. It streams high-resolution startup, coast-down, and steady-state waveform data straight to Bently Nevada System 1 software while simultaneously feeding continuous overall vibration values to host DCS or SCADA platforms via Modbus. This dual-path architecture ensures your predictive condition monitoring never interferes with real-time safety protection logic.

Key Technical Specifications

Application Scenarios & The “Trench” Experience

When a critical gas turbine trips during startup, plant management needs immediate rotordynamic answers. During a commissioning run at a midwest power plant, an export compressor tripped on high radial vibration as it passed through critical speed. The maintenance team suspected an unbalance issue, but without high-speed transient data, they were guessing. By connecting to the site’s 3500/22M TDI card over Ethernet, we extracted full Bode and polar plots for the ramp-up phase. The data clearly showed thermal shaft bowing rather than permanent rotor unbalance, allowing them to adjust warm-up sequences and avoid a multi-million-dollar rotor teardown.

• Power Generation Plants – Heavy-Duty Gas & Steam Turbines – Streams high-speed startup and coast-down transient waveforms to System 1 for thermal expansion and resonance analysis.
• Petrochemical Refineries – Ethylene Cracker Compressors – Manages central 3500 rack configuration files while feeding real-time Modbus vibration data to the main control room DCS.
• LNG Import/Export Terminals – Boil-Off Gas Refrigeration Units – Maintains continuous, time-stamped alarm event logs across all monitoring slots for root-cause analysis after trips.
• Offshore Oil & Gas Platforms – Main Water Injection Pumps – Enables remote network management and diagnostic monitoring for un-staffed platform machinery skids.

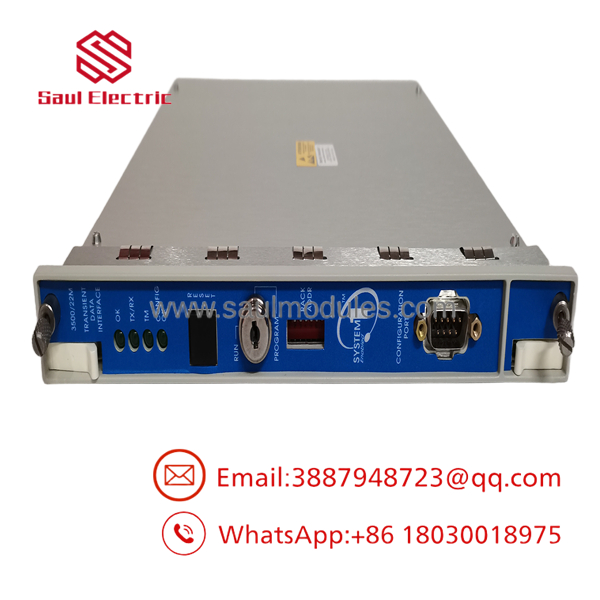

3500/22M

Transparency SOP: Quality Assurance & Testing

We do not just ship circuit cards; every 3500/22M module undergoes physical and electrical validation on actual 3500 chassis before leaving our warehouse:

1. Board Level & Edge Inspection: Inspect PCB traces, solder joints, gold backplane connector pins, and onboard capacitors for signs of thermal stress or mechanical wear.
2. Backplane Handshake & Boot Check: Seat the 3500/22M into an active 3500/05 test chassis. Power up the rack to verify self-test execution and OK LED activation.
3. Network & Configuration Test: Link via 10/100Base-T Ethernet using 3500 Rack Configuration Software. Perform full configuration uploads, downloads, and IP address programming.
4. Data Streaming Validation: Connect the test rack to a System 1 node. Inject simulated dynamic AC/DC signals into adjacent monitor cards and verify 100% packet integrity on live waveform streams.
5. ESD Shielding & Secure Packaging: Encapsulate the module in static-shielding metallic packaging with fresh desiccant prior to packing in custom foam-lined cartons.

The Veteran’s Tech Trap Guide (Crucial Value-Add)

• ⚠️ 3500/20 RIM to 3500/22M TDI Upgrade Caution: You cannot simply pull an old 3500/20 RIM card and jam a 3500/22M TDI card into the same slot. The 3500/22M requires its specific rear I/O card (such as 138620-01 or 146031-01). Plugging a 3500/22M card into an old RIM rear module will bend backplane connector pins.
• ❗ Ethernet Speed & Duplex Alignment: Configure your control network Ethernet switch ports to 100Mbps Full Duplex or auto-negotiate to match the 3500/22M PHY layer. Mismatched switch settings cause packet dropouts during dynamic transient data transfers to System 1.
• ⚠️ Firmware Version Matching: Verify that the installed firmware on the replacement 3500/22M card is compatible with your version of 3500 Rack Configuration Software. A major firmware mismatch will result in a connection fault until software or card firmware is aligned.
• ❗ Hot-Swapping Operations: The 3500/22M card can be hot-swapped while the machine is running without affecting the safety trip protection executed by individual monitor cards (e.g., 3500/42M). However, all Ethernet diagnostic streams and Modbus DCS communications will go offline while the card is removed.

Frequently Asked Questions (FAQ for Conversion)

Q: What is the primary difference between a 3500/20 RIM and a 3500/22M TDI? A: The older 3500/20 RIM provides serial communications (Modbus) and basic rack configuration. The 3500/22M TDI adds high-speed 10/100Base-T Ethernet capabilities, allowing direct streaming of continuous, raw dynamic transient waveforms to System 1 diagnostic software.

Q: Can I use the 3500/22M module without Bently Nevada System 1 software? A: Yes. The 3500/22M handles basic rack configuration, system resets, and serial/Ethernet Modbus RTU communications to host DCS networks completely independently of System 1.

Q: Does replacing a 3500/22M card erase the configuration of adjacent monitor cards? A: No. Primary channel settings are stored across non-volatile memory in the rack. However, we strongly recommend backing up your .3500 rack configuration file using the configuration software before swapping any processor card.

Q: Are these 3500/22M modules factory new or reconditioned? A: We stock both New Surplus (factory-sealed, unused OEM units) and fully bench-tested re-certified cards. Every card passes strict load testing before dispatch.

Q: What warranty comes with the 3500/22M module? A: We back every 3500/22M module with a comprehensive 12-month replacement warranty starting on the date of delivery.

Q: Why purchase Bently Nevada components through surplus channels? A: OEM factory lead times for 3500 series core processors can stretch for months. We hold pre-tested, physical inventory in stock for immediate shipment, helping you eliminate project delays and keep critical machinery protected.
