Description
Product Introduction & Engineering Value
The Bently Nevada 3500/25 Enhanced Keyphasor Module provides the timing reference used by the 3500 machinery protection system for rotating-equipment measurements. Keyphasor information is fundamental to phase-related measurements, speed calculations, and several vibration-monitoring functions. The module accepts Keyphasor signals and distributes them to the appropriate 3500 monitor modules.
The 3500/25 is therefore not simply another input card. Its timing signal can influence how the monitoring system interprets rotating-machine behavior. When replacing one, verify the module version, input/output configuration, transducer arrangement, rack position, and system configuration rather than substituting a generic speed-monitoring device.
Technical Specifications
| Parameter | Specification |
|---|---|
| Catalog Number | 3500/25 |
| Manufacturer | Bently Nevada |
| Product Family | 3500 Series |
| Module Type | Enhanced Keyphasor Module |
| Keyphasor Inputs | 2 |
| Buffered Outputs | 4 |
| Rack | 3500/05 |
| Signal Function | Rotational speed/phase reference |
| Primary Application | Machinery protection and vibration monitoring |
| System Integration | Interfaces with 3500 monitor modules |
| Configuration | 3500 System Configuration Software |
| Power | Supplied through the 3500 rack |
| Mounting | 3500 rack slot |
Bently Nevada documentation describes the 3500/25 as a half-height, two-channel module that replaces the earlier 3500/25 Keyphasor Module and provides four buffered Keyphasor outputs for use by monitor modules.
Field Application & the “Trench” Experience
A large steam turbine has two Keyphasor probes feeding a 3500 rack. Vibration amplitudes look reasonable, but the phase data suddenly becomes inconsistent after maintenance work.
The technician initially checks the vibration monitors.
The better starting point is the timing reference.
If the 3500/25 is not receiving or distributing the expected Keyphasor signal, downstream monitoring functions that depend on rotational reference can become unreliable. The fix may be as simple as restoring the Keyphasor module or its input wiring, but the diagnostic process has to recognize that speed/phase reference and vibration amplitude are related but different measurement paths.
Specific application scenarios
- Steam turbine shaft monitoring — Providing rotational reference for phase and vibration measurements.
- Centrifugal compressor protection — Supporting speed and phase-related monitoring of compressor rotor behavior.
- Generator monitoring — Providing Keyphasor reference for shaft vibration and machine-condition measurements.
- Pump train analysis — Establishing a reliable once-per-revolution reference for diagnostic monitoring.

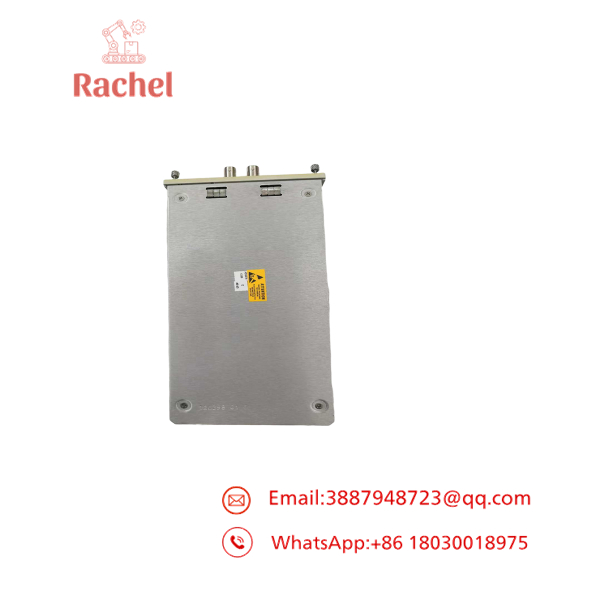

3500/25
Transparency SOP: QA & Testing
For a new-surplus or refurbished 3500/25, functional testing should reproduce the Keyphasor signal path.
- Identification — Verify the complete 3500/25 catalog number and hardware revision.
- Visual inspection — Check the module housing, front-panel indicators, connector, and rack contacts.
- Rack recognition — Install the module in a compatible 3500/05 rack.
- Input simulation — Apply an appropriate simulated Keyphasor signal to the input channels.
- Signal verification — Confirm that the module recognizes the expected rotational reference.
- Output verification — Check the buffered Keyphasor outputs.
- Monitor integration — Verify that connected 3500 monitor modules receive the Keyphasor reference correctly.
- Extended operation — Run the module long enough to identify intermittent signal or communication problems.
- Documentation — Record the tested inputs/outputs, hardware revision, and test conditions.
QA warning: A 3500/25 that powers up is not necessarily a functional Keyphasor module. The input and buffered-output signal path should be tested.
The Veteran’s Tech Trap Guide
⚠️ Trap #1 — Confusing Keyphasor with a normal tachometer signal.
The Keyphasor signal provides a rotational reference used by the machinery monitoring system. It is not merely a display of RPM.
PRO TIP: Document which Keyphasor probe feeds each input before removing the original module.
⚠️ Trap #2 — Ignoring the buffered outputs.
The 3500/25 distributes Keyphasor information to multiple monitor modules. A problem may therefore appear downstream even though the affected component is the Keyphasor signal path.
⚠️ Trap #3 — Replacing the module without checking the probe.
A failed Keyphasor indication does not automatically mean the 3500/25 has failed. Check the probe, wiring, connector, power/signal conditions, and input configuration before condemning the module.
⚠️ Trap #4 — Losing the original configuration.
Record the existing rack slot and configuration before replacement. The 3500 system should be returned to the same intended measurement architecture after the hardware swap.
Dynamic FAQ
What is Bently Nevada 3500/25?
The 3500/25 Enhanced Keyphasor Module is a two-channel Keyphasor interface used within the Bently Nevada 3500 machinery protection system. It provides buffered Keyphasor outputs to other 3500 monitor modules.
How many Keyphasor inputs does the 3500/25 have?
The module provides two Keyphasor input channels and four buffered Keyphasor outputs.
What does Keyphasor do in a Bently Nevada system?
Keyphasor provides a once-per-revolution reference used for rotational speed and phase-related machinery measurements. It is particularly important when analyzing shaft vibration in relation to rotor position.
Can I replace 3500/25 with another 3500 module?
No. The 3500/25 performs a specialized Keyphasor interface function. The replacement should be another compatible 3500/25 configuration unless Bently Nevada documentation specifies an approved alternative.
How should a refurbished 3500/25 be tested?
The preferred test is installation in a compatible 3500 rack with a suitable simulated Keyphasor signal. Verify both input recognition and the buffered outputs, then confirm that downstream monitor modules receive the signal correctly.
What should I verify before purchasing new-surplus stock?
Confirm the 3500/25 identification, hardware revision, actual photographs, condition, input/output configuration, and functional test results. If the application is critical, request evidence that the Keyphasor signal path was tested rather than merely confirming that the module powers up.
What warranty should I expect?
Warranty depends on the supplier. For refurbished machinery-protection hardware, obtain written coverage for functional failure and confirm the supplier’s return procedure before installation.
