Bently Nevada 3500/32 Relay Module 4-Channel Relay Output Module

Description

Product Introduction & Engineering Value

A machinery protection system must not only detect abnormal conditions but also communicate those conditions to operators and control systems. The Bently Nevada 3500/32 Relay Module provides the physical relay interface needed to transfer protection events into plant alarm and shutdown logic.

Installed in a 3500 rack, the 350032 allows maintenance teams to expand or restore relay output functionality without modifying the entire machinery protection cabinet. It is commonly maintained as a spare in turbine, compressor, and rotating equipment applications.

Technical Specifications

Field Application & The “Trench” Experience

A refinery compressor protection system generated correct vibration alarms inside the Bently Nevada 3500 rack, but operators in the control room did not receive the expected shutdown indication during testing.

The instrumentation team traced the issue through the alarm chain and found that the relay output module was no longer switching reliably. After replacing the failed Bently Nevada 350032 Relay Module, technicians verified relay operation, checked alarm mapping, and confirmed the control system received the correct signals.

The compressor protection cabinet returned to normal operation without replacing the vibration monitoring modules.

Typical application scenarios include:

Compressor shutdown systems

• Alarm relay transfer
• Emergency trip signaling
• Control room annunciation

Turbine protection cabinets

• Overspeed event indication
• Bearing alarm output
• Protection system status signals

Industrial machinery monitoring

• 3500 rack relay expansion
• External PLC interface
• Legacy protection system maintenance

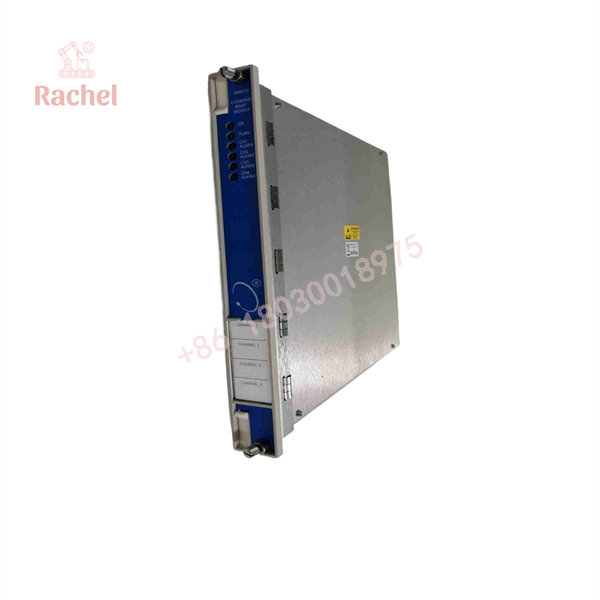

3500/32

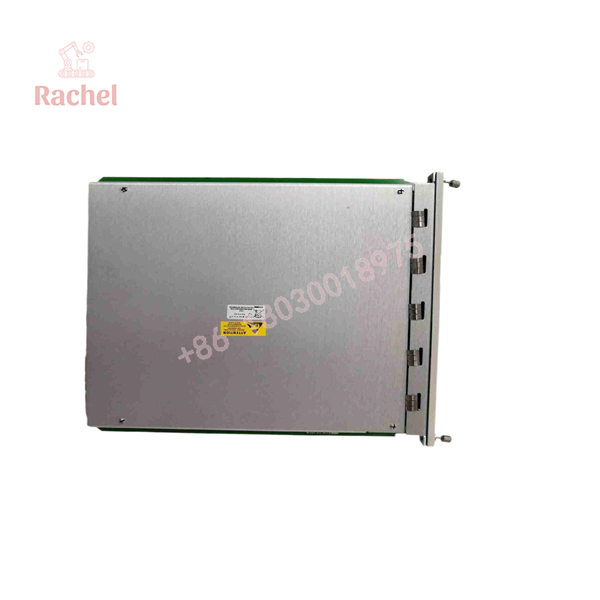

3500/32

Transparency SOP: QA & Testing

Relay modules require contact verification because mechanical relay performance can degrade over time.

Testing procedure:

1. Physical inspection
   • Confirm module identification
   • Inspect relay terminals
   • Check rack connector condition
2. Electrical verification
   • Confirm rack power operation
   • Verify relay coil response
   • Check contact switching behavior
3. Functional testing
   • Apply simulated alarm conditions
   • Verify relay activation
   • Confirm output stability
4. Final quality review
   • Document test results
   • Classify inventory condition
   • Package for industrial shipment

The Veteran’s Tech Trap Guide

⚠️ PRO TIP: A relay module failure may actually be a logic configuration problem.
Before replacement, confirm alarm mapping and whether the upstream monitoring module is sending the expected status signal.

⚠️ Do not ignore relay contact condition.
A relay may energize correctly but still have worn or unreliable contacts after long service.

⚠️ Verify normally open/normally closed requirements.
Incorrect contact configuration can cause unexpected behavior in shutdown and alarm circuits.

Dynamic FAQ

Q1: What is the Bently Nevada 350032 used for?

The 350032 is a Bently Nevada 3500/32 Relay Module used to provide relay outputs from the 3500 machinery protection rack for alarms, shutdown signals, and system status indications.

Q2: Does the 3500/32 measure vibration?

No. The module does not perform measurement. It receives event information from other 3500 monitoring modules and provides relay outputs.

Q3: How many relay outputs does the 3500/32 provide?

The Bently Nevada 3500/32 Relay Module provides four relay channels for configurable alarm and status functions.

Q4: What should be checked before replacing a 350032 module?

Verify:

• Complete module part number
• Relay logic configuration
• Contact wiring
• Alarm mapping
• Existing 3500 rack setup

Q5: Are refurbished Bently Nevada 350032 relay modules tested?

Qualified automation suppliers typically inspect relay modules, verify electrical operation, and test relay switching performance before shipment.

Q6: What warranty is available for a replacement 350032?

Warranty terms depend on supplier policy, product condition, and testing scope. Buyers should confirm warranty coverage and inspection documentation before purchase.

Q7: Why do plants keep 3500/32 modules as spare inventory?

Relay modules are part of the final alarm and shutdown interface. Keeping a tested spare helps reduce downtime when a protection cabinet loses critical output functionality.
