Description
Product Introduction
The Bently Nevada 3500/33 149992-01 is a full-height Rear I/O module with internal terminations, designed to mount in the back of a 3500 rack directly behind the 3500/33 16-channel relay main card (149986-01). It provides physical terminal connection points for landing 16 individual single-pole double-throw (SPDT) relay field contacts.
By routing dry-contact switching signals directly off the backboard via high-density terminal blocks, the 149992-01 eliminates external multi-pin cable harnesses required by external termination versions. It provides a straightforward, hardware-isolated boundary between field trip circuits and the 3500 backplane logic.
Key Technical Specifications
| Parameter | Specification |
| Part Number | 149992-01 (Rear I/O Board) |
| Compatible Main Module | 3500/33 16-Channel Relay Module (149986-01) |
| Termination Type | Internal Termination (Euro Screw Terminal Blocks) |
| Channel Capacity | 16 Independent Relay Field Output Channels |
| Terminal Wire Gauge | 12 to 24 AWG (0.2 to 2.5 mm²) |
| Maximum Voltage | 250 VAC / 125 VDC |
| Maximum Current | 5 A per contact channel |
| Isolation | Channel-to-channel and channel-to-backplane physical isolation |
| Operating Temp Range | -30°C to +65°C (-22°F to +149°F) |
| Mounting Position | Rear chassis slot, directly behind 3500/33 main card |
Application Scenarios & The “Trench” Experience
You’re tracing a mysterious intermediate trip fault on a critical turbine generator during a night shift. The front 149986-01 relay card tests fine, but moving field wires at the back of the rack triggers intermittent opens on Channel 4. A cracked terminal block housing or damaged PCB trace on the rear I/O board from years of over-torqued field wiring can paralyze your safety instrumented system (SIS).
- Power Generation Facilities – Landing hardwired turbine shutdown interlocks directly from the 3500 rack into the plant Emergency Trip System (ETS).
- Refinery Tank Farms & Compressor Stations – Routing 16 distinct machinery vibration alarm outputs to local PLC digital input cards without external terminal panels.
- Offshore Platforms – Compact, high-density cabinet layouts where rear cabinet space won’t accommodate external termination blocks (ETBs).
- Pulp & Paper Processing – Isolate heavy motor starter trip loops across multiple drives from central monitoring hardware.
Field Case Study: An offshore platform suffered physical damage to a 3500/33 rear I/O card during a cabinet retrofitting job. Three screw terminals stripped out, leaving the main export pump without high-vibration trip coverage. With production halted due to safety interlock bypass limits, we dispatched a certified 149992-01 rear module overnight. The technician landed the 16 pairs of field wires in under 45 minutes, restoring full machinery trip integrity.

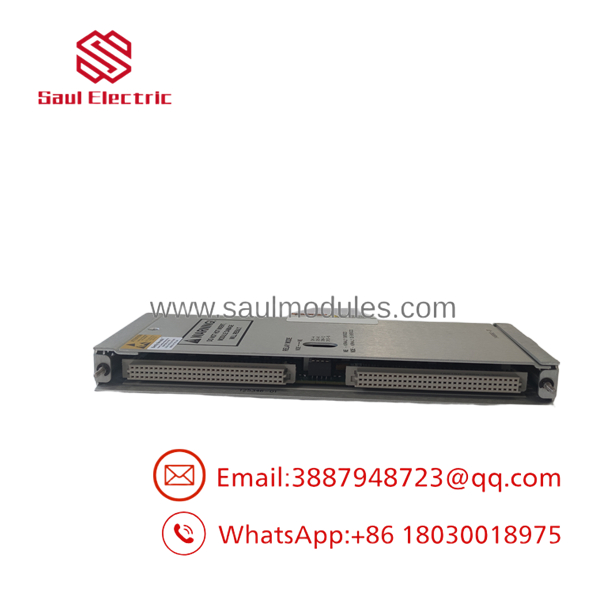

3500/33 149992-01

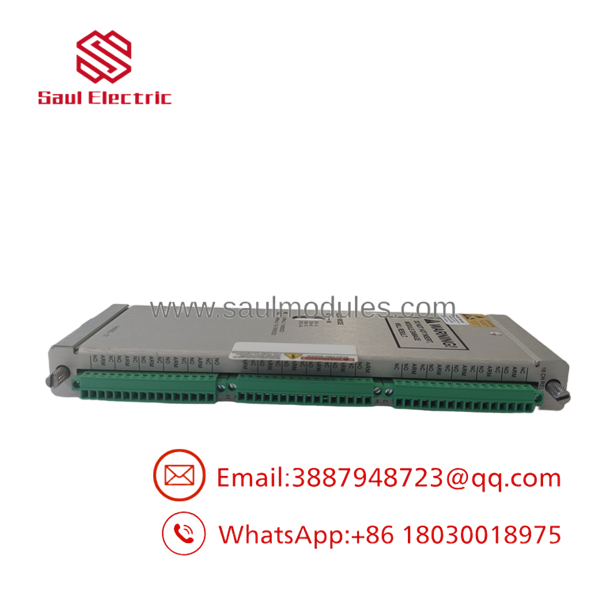

3500/33 149992-01
Transparency SOP: Quality Assurance & Testing
We don’t just ship boxes; we test them on actual Bently Nevada 3500 racks.
- Inbound Mechanical & Pin Inspection: Examine rear backplane edge connectors, gold contacts, terminal block tension screws, and solder joints for corrosion or mechanical fatigue.
- Backplane Alignment Check: Fit the 149992-01 into a standard 3500 rear chassis to ensure guide rails and backplane interconnect pins align smoothly without resistance.
- Mated Loop Continuity Testing: Pair the rear I/O board with a verified 149986-01 main relay card. Actuate each channel and measure contact resistance across NO, NC, and COM terminals under load.
- Dielectric Isolation & Breakdown Check: Verify channel-to-channel insulation resistance to ensure transient field voltages cannot cross adjacent relay paths.
- ESD-Safe Packaging: Clean contacts, apply terminal guard covers, and seal the unit in conductive anti-static shielding with customized foam wrapping.
The Veteran’s Tech Trap Guide (Crucial Value-Add)
⚠️ 1. Don’t Mix Up Internal vs. External Termination Boards!
The 149992-01 is an Internal Termination module with onboard terminal blocks. If your cabinet uses external ribbon cables leading to a remote DIN-rail terminal panel, this card will not work. You would need the 149992-02 (External Termination) module instead.
❗ 2. Respect Terminal Screw Torque Limits
Over-tightening field terminal screws on the 149992-01 breaks internal PCB solder pads off the trace layers. Use a precision 3.5mm flathead torque screwdriver and keep it under 0.5 Nm (4.4 in-lbs). If you strip a terminal, you replace the whole card.
⚠️ 3. Always Label Your Wires Before Pulling the Card
Unlike front modules that swap cleanly, this rear card holds all physical field wiring. Take a clear high-res photograph and label NO, NC, and COM conductors for all 16 channels before loosening terminal screws. A single swapped wire can turn an active trip loop into a dead circuit.
❗ 4. Verify Snubber Placement on Inductive Loads
The 149992-01 simply routes field wiring to the relay contacts. It does not contain internal arc suppression snubbers. If you switch high-inductance trip coils or large relays directly through this card, install external flyback diodes or RC snubbers across the load. Otherwise, inductive kickback will burn out the relay contacts on the front card.
Frequently Asked Questions (FAQ for Conversion)
Q: Is the 149992-01 compatible with all 3500/33 main cards?
A: Yes, the 149992-01 internal termination rear module works with all revisions of the full-height 3500/33 16-channel relay main card (including the standard 149986-01).
Q: Does this rear I/O card contain active microprocessors or firmware?
A: No. The 149992-01 is a passive routing board with trace lines, connector interfaces, and terminal blocks. It does not hold firmware or require software configuration, but relies on the front 149986-01 card for logic execution.
Q: Can I hot-swap the rear 149992-01 module while the 3500 rack is powered on?
A: While the 3500 chassis backplane power won’t damage the board during removal, pulling the rear module physically disconnects all 16 active relay field loops. You must bypass all downstream safety trip circuits before unseating this card.
Q: What is the primary difference between 149992-01 and 149992-02?
A: The 149992-01 features built-in terminal blocks for landing field wires directly at the back of the rack (Internal Termination). The 149992-02 uses high-density cable connectors to interface with remote External Termination Blocks (ETBs) mounted on DIN rails.
Q: How fast can this unit ship, and what warranty covers it?
A: In-stock surplus units ship same-day for emergency plant outages. Every unit includes our standard 12-month full replacement warranty.
Q: Why buy surplus rear I/O cards instead of ordering from the OEM?
A: OEM lead times for legacy 3500 series hardware often extend past 16 to 20 weeks. Buying verified surplus delivers authentic hardware immediately, preventing costly extended plant shutdowns at a lower capital cost.
