Bently Nevada 3500/42M 135489-01 Proximitor Seismic Monitor

Description

Product Introduction

The Bently Nevada 3500/42M (part number 135489-01) is a 4-channel Proximitor / Seismic Monitor card engineered for comprehensive vibration monitoring across critical plant assets. Positioned as the primary workhorse module within the 3500 rack, it accepts signals from proximity probes, seismic velocity pickups, and piezo-electric accelerometers simultaneously.

Unlike the dedicated 3500/40M proximity card, the 42M variant gives automation engineers maximum signal flexibility. You can pair channel 1 and 2 with eddy current probes for shaft displacement while setting channel 3 and 4 for casing accelerometers. It processes static (gap, overall value) and dynamic waveforms, comparing real-time values against programmed setpoints to drive rack relay trip logic and feed high-resolution machinery diagnostics to System 1 software.

Key Technical Specifications

Application Scenarios & The “Trench” Experience

When a balance-of-plant boiler feed pump suffers a catastrophic bearing cage failure or unbalance-induced shaft deflection, casing velocity sensors alone won’t give you the full story. You need both internal shaft displacement metrics and external casing acceleration to know if you’re dealing with fluid whip, misalignment, or cracked rotor bars before the unit throws a blade.

The 3500/42M combines proximity and seismic measurements on a single card, eliminating the need to install separate specialized racks for different sensor types.

• Combined-Cycle Power Plants – Gas Turbine Generator Sets: Running proximity probes on fluid-film journal bearings while taking Velomitor casing measurements on the gearbox housing.
• Refining & Petrochemical – Multi-Stage Centrifugal Compressors: Monitoring axial thrust displacement alongside high-frequency casing acceleration for anti-surge protection.
• Mining & Heavy Industry – Large Induced Draft (ID) Fans: Tracking unbalance and bearing degradation using piezoelectric accelerometers on rolling-element bearings.

Field Case Scenario: During an unplanned shutdown at a paper mill, the maintenance manager noticed the drive-end bearing on the main dryer roll was showing elevated overall vibration on their local PLC panel, but no one could tell if it was casing resonance or actual shaft movement. The original 3500/42M card had a damaged channel 3 channel-OK circuit from a shorted field cable shield. We brought in a pre-tested 135489-01 surplus module, swapped it into slot 4, reloaded the rack configuration, and restored live BNC buffered outputs to connect an FFT analyzer. The diagnosis took 20 minutes—a severe gear mesh frequency spike—allowing planned maintenance before the gear set destroyed the main drive shaft.

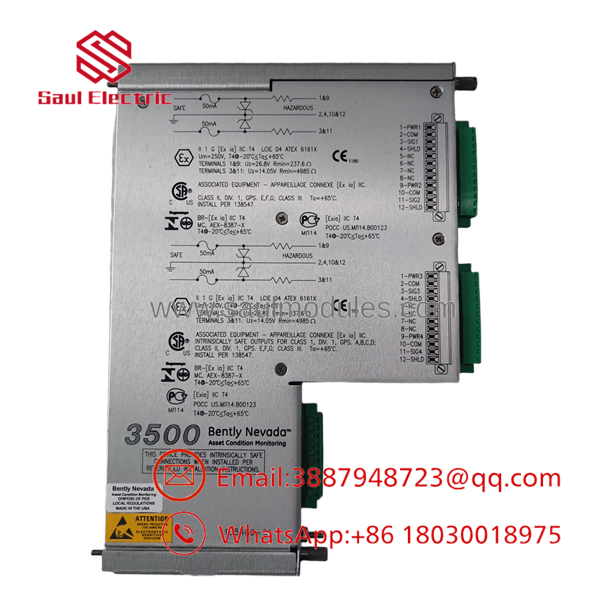

3500/42M 135489-01

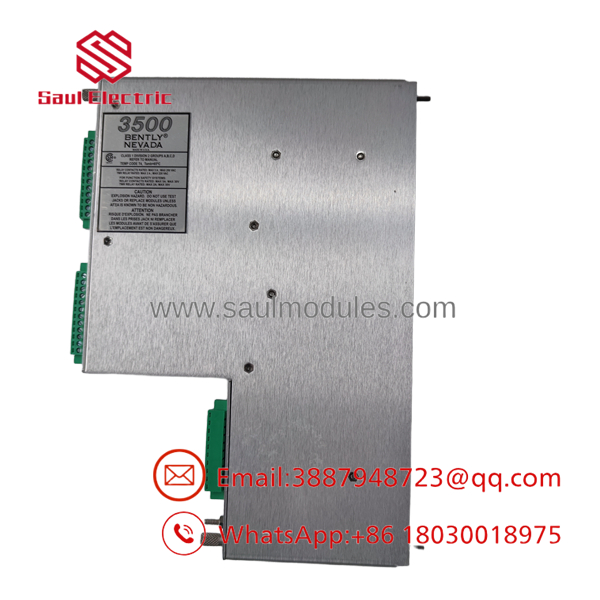

3500/42M 135489-01

Transparency SOP: Quality Assurance & Testing

We don’t just ship boxes; we test them on actual Bently Nevada 3500 racks.

1. Inbound Physical Inspection: We inspect board traces under magnification, check for heat-stressed capacitors, verify the backplane connector fingers, and validate OEM serial numbers.
2. Rack Mount & POST Verification: The 135489-01 card is seated into a powered 3500 chassis. We run full Power-On Self-Tests (POST) to verify communication with the 3500/22M Rack Interface Module without triggering system fault logs.
3. Multi-Signal Loop Injection: Using calibrated function generators and genuine 3300 XL Proximitor/Velomitor simulator loops, we inject dynamic AC/DC signals across all four channels to verify overall amplitude accuracy, gap voltage, and trip setpoint execution.
4. Buffered Output Check: Every front-panel BNC output is hooked to an oscilloscope to guarantee signal integrity without phase shift or noise contamination.
5. Anti-Static Sealing: Cleared cards are packaged directly inside Faraday-shielded anti-static bags with custom die-cut foam.

The Veteran’s Tech Trap Guide (Crucial Value-Add)

• ⚠️ Do Not Mix Up 135489-01 Main Card with Rear I/O Modules: The 135489-01 is the front main processing board. It MUST be matched with the correct Rear I/O module (e.g., Prox/Seismic I/O board 128229-01, Internal Barrier I/O, or TMR I/O). Plugging a 42M main module into an incorrect or misconfigured rear terminal block will throw immediate “Not OK” channel faults and block rack communication.
• ❗ Watch Out for Velomitor Power Configuration: Unlike standard proximity probes that draw -24 VDC, Velomitor sensors require specific constant-current power settings configured via software. If you swap a channel from a Proximitor probe to a Velomitor without updating the 3500 Rack Configuration software, the channel power rail will read open-circuit and disable the channel.
• ⚠️ Verify Firmware Revisions Before Slotting: If your 3500 rack runs older firmware on the 3500/22M System Interface card, inserting a newer revision 135489-01 card can cause a module configuration conflict. Save your rack config file (.3500 format) to your laptop before pulling any card from an active system.

Frequently Asked Questions (FAQ for Conversion)

Q: Can I use the 3500/42M to replace an older 3500/40M proximity card?

A: Yes, in most cases. The 3500/42M includes all proximity monitoring functions of the 3500/40M while adding seismic (velocity/accelerometer) support. However, you must update the rack configuration file using Bently Nevada 3500 Rack Configuration Software to assign the slot to a 42M card type.

Q: Is the Bently Nevada 3500/42M 135489-01 hot-swappable?

A: Yes, the front module can be hot-swapped while the rack is powered. To be honest, swapping a card tied to active Danger relays is risky business—always bypass or inhibit downstream trip circuits before pulling the module.

Q: Does the 135489-01 board support peak-to-peak and RMS vibration readings?

A: Yes. Depending on the channel configuration (Proximitor vs. Velomitor/Accelerometer), the module processes peak-to-peak (mils/microns for proximity) or RMS/peak (in/sec or mm/sec for velocity, g’s for acceleration).

Q: What warranty is included with this card?

A: All our 3500/42M modules—whether factory-sealed new surplus or fully tested refurbished—are covered by our standard 12-month replacement warranty.

Q: Why buy surplus or refurbished over ordering directly from the factory?

A: Factory lead times for legacy 3500 components frequently exceed 16 to 24 weeks. We maintain pre-tested inventory in global stock, allowing us to ship verified modules to your plant within 24 to 48 hours.
