Product Introduction & Engineering Value
A machinery protection system depends on accurate sensor interpretation before an alarm or shutdown decision is made. The Bently Nevada 3500/42M converts raw proximity and seismic signals into usable monitoring values for vibration, position, and machine condition evaluation.
The 350042M is widely installed on turbines, compressors, and pumps where continuous protection is required. For facilities maintaining existing 3500 racks, replacing an individual monitor module can restore measurement capability while keeping the original cabinet design.
Technical Specifications
| Specification | Details |
|---|---|
| Manufacturer | Bently Nevada |
| Model Number | 350042M |
| Product Name | 3500/42M Proximity/Seismic Monitor |
| System Platform | Bently Nevada 3500 Machinery Protection System |
| Module Type | 4-channel monitor module |
| Input Type | Proximity probe and seismic sensor signals |
| Measurement Functions | Radial vibration, position, and seismic monitoring |
| Signal Processing | Dynamic and static measurement processing |
| Rack Interface | 3500 backplane connection |
| Alarm Functions | Alert and Danger thresholds |
| Configuration | Software configurable |
| Application | Machinery condition monitoring and protection |
Field Application & The “Trench” Experience
A refinery operating a large centrifugal compressor noticed abnormal vibration alarms appearing only during certain load conditions. The mechanical team inspected bearings and alignment but found no physical damage.
The instrumentation group compared historical trends and discovered that one monitoring channel was producing inconsistent proximity signal values. The problem was isolated to the Bently Nevada monitor module inside the 3500 rack.
After replacing the failed unit with a tested 350042M Proximity/Seismic Monitor, engineers verified probe inputs, reviewed channel configuration, and confirmed alarm thresholds. The compressor returned to normal operation without unnecessary mechanical intervention.
Typical application scenarios include:
Compressor machinery protection
- Radial vibration monitoring
- Bearing condition analysis
- Shutdown alarm generation
Steam and gas turbine systems
- Shaft vibration measurement
- Position monitoring
- Startup and transient analysis
Industrial rotating equipment
- Pumps
- Expanders
- Fans and blowers
- Existing Bently Nevada 3500 cabinets

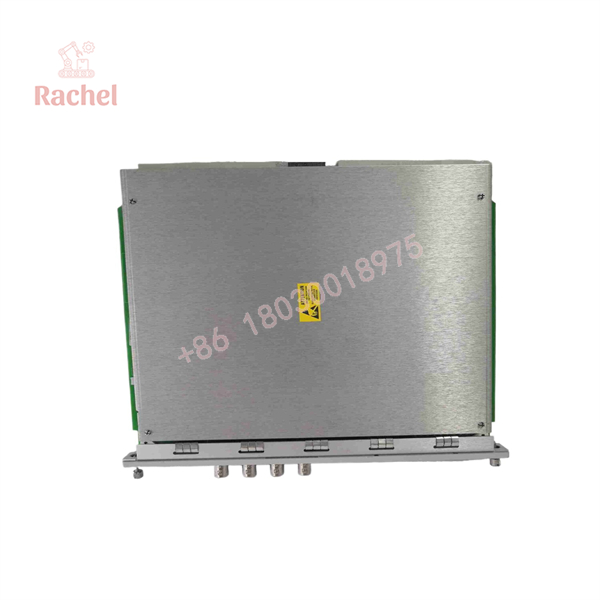

3500/42M

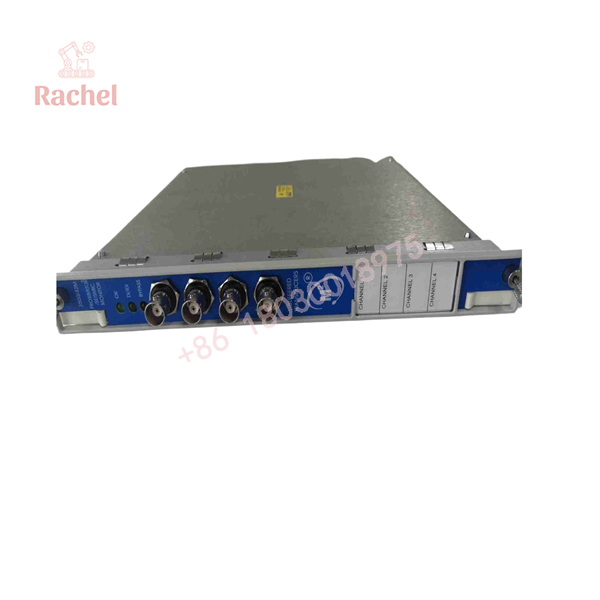

3500/42M
Transparency SOP: QA & Testing
A proximity/seismic monitor must be tested with representative input signals because incorrect measurements can affect machinery protection decisions.
Verification workflow:
1. Identification review
- Confirm 350042M model marking
- Check module condition
- Inspect rack connector
2. Hardware evaluation
- Verify power-up behavior
- Check status indicators
- Inspect electronic condition
3. Functional simulation
- Apply compatible proximity/seismic signals
- Verify channel measurements
- Confirm alarm response
4. Final release
- Record test results
- Assign New Surplus / Refurbished status
- Package using ESD protection
The Veteran’s Tech Trap Guide
⚠️ PRO TIP: Confirm sensor type before installation.
A proximity input and a seismic input are not interchangeable. Incorrect sensor selection can produce misleading readings.
⚠️ Do not skip configuration review.
A replacement 350042M may require verification of channel setup, scaling, alarm limits, and sensor parameters.
⚠️ Check probe wiring before replacing the module.
Cable damage, loose terminals, or incorrect probe gap settings can create symptoms that look like monitor failure.
Dynamic FAQ
Q1: What is the Bently Nevada 350042M used for?
The 350042M is a Bently Nevada 3500/42M Proximity/Seismic Monitor used for processing proximity probe and seismic sensor signals in a 3500 machinery protection system.
Q2: What measurements can the 3500/42M monitor?
Depending on configuration, it can support measurements such as radial vibration, shaft position, and seismic vibration signals from compatible sensors.
Q3: How many channels does the 350042M provide?
The 3500/42M is designed as a four-channel monitor module within the Bently Nevada 3500 platform.
Q4: What should be checked before replacing a 350042M?
Verify:
- Complete module part number
- Sensor type
- Existing channel configuration
- Alarm settings
- 3500 rack compatibility
Q5: Are refurbished Bently Nevada 350042M modules tested?
Qualified automation suppliers typically perform inspection, electrical verification, and functional testing before supplying refurbished machinery protection modules.
Q6: What warranty is available for this module?
Warranty terms depend on supplier policy, product condition, and testing scope. Buyers should confirm warranty duration and available test records before purchase.
Q7: Why do plants continue using 3500/42M modules?
Many industrial facilities operate Bently Nevada 3500 systems on critical rotating assets. Maintaining spare monitor modules helps extend the operating life of installed machinery protection infrastructure.
