Product Introduction & Engineering Value
Standard continuous vibration monitoring tools do not account for the mechanical realities of reciprocating machinery. While a centrifugal turbine exhibits a steady, sinusoidal vibration profile under normal conditions, a reciprocating compressor is inherently characterized by impact-driven forces. Applying standard RMS averaging to crosshead pin impacts or piston rod reversals often hides dangerous mechanical play until a catastrophic throwing of a rod occurs.
The Bently Nevada 3500/70M addresses these unique forces through specialized input processing. This four-channel module is built specifically to detect high-frequency mechanical impacts (using impulse acceleration) alongside low-frequency frame and crankcase movements. By conditioning input signals in configurable channel pairs, the 3500/70M ensures that your reciprocating assets are guarded against rod knocks, loose bolts, and liquid slugging with microsecond speed.
Technical Specifications
| Parameter | Specification Detail |
| Input Channels | 4 independent channels (configurable in pairs) |
| Monitoring Functions | Impulse Acceleration, Acceleration 2, Recip Velocity, Low Frequency Recip Velocity |
| Signal Inputs | Supports Accelerometers, Velomitors, and Seismic Transducers |
| Input Impedance | 10 kΩ (Acceleration configurations), >1 MΩ (Velocity configurations) |
| A/D Conversion | 24-bit high-resolution digital signal processing |
| Transducer Power | -22 Vdc (minimum), 40 mA (maximum output per channel) |
| Recorder Outputs | 4 to 20 mA proportional outputs, ±0.05 mA accuracy |
| Rack Footprint | Occupies 1 full-height front slot (requires matching rear I/O card) |
| Alarm Configuration | Alert and Danger thresholds configurable from 0% to 100% of full-scale |

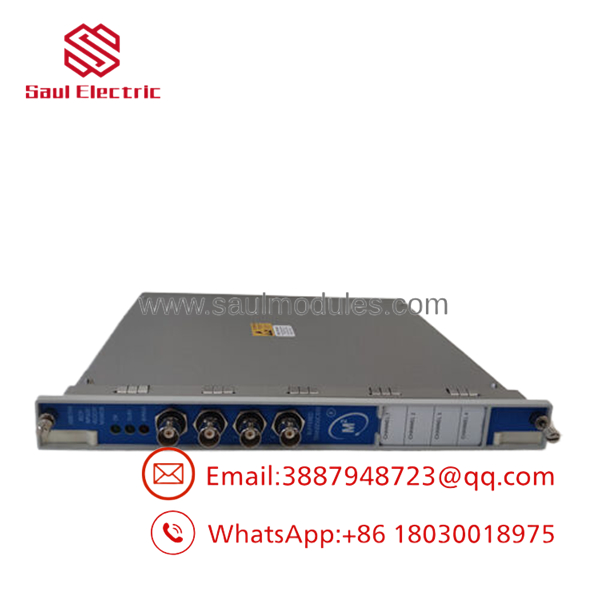

- 3500/70M
- 3500/70M
Field Application & The “Trench” Experience
At a gas storage facility in Pennsylvania, a critical four-throw hydrogen compressor began exhibiting intermittent, low-level knocking noises. The plant’s standard overall velocity monitors showed nothing out of the ordinary, as the energy from the knock was dampened by the sheer mass of the machine frame.
We installed a 3500/70M module and wired accelerometer sensors directly to the crosshead guide housings. By configuring the channels for Impulse Acceleration, the 3500/70M filtered out normal running noise and isolated the brief, high-g impact spikes. Within minutes of commissioning, the card flagged an escalating impulse trend on Cylinder No. 2. Maintenance teams immediately intervened, discovering a loose crosshead pin nut that was rapidly backing off. Finding this issue saved the plant from a complete frame rupture and averted millions of dollars in secondary equipment damage.
Specific Niche Applications:
- Crosshead Pin Play Detection: Utilizing Impulse Acceleration to capture impacts caused by clearance changes in the crosshead pin bushing.
- Liquid Slugging Mitigation in Wet Gas Compressors: Real-time monitoring of instantaneous cylinder head acceleration to detect early-stage liquid carryover.
- Crankcase Frame Distortion Tracking: Running Low-Frequency Recip Velocity configurations to monitor foundation settling and unbalanced frame twisting.
Transparency SOP: QA & Testing
Every 3500/70M module in our inventory is verified using a live Bently Nevada test rack. We connect the module to a multi-channel dynamic signal generator capable of producing simulated mechanical impact waves. We verify that the internal digital signal processor correctly identifies transient shock waves during Impulse Acceleration tests, and we sweep sensor input ranges to check calibration accuracy across all four channels. Only after verifying zero-drift performance, flawless Modbus/backplane communication, and clear system “OK” indicators is the card approved for packaging and delivery.
The Veteran’s Tech Trap Guide
⚠️ THE CONFIGURATION PAIRING LOCK: The four channels on the 3500/70M cannot be configured completely independently. They must be set up in pairs (Channels 1 & 2, and Channels 3 & 4). Attempting to configure Channel 1 for low-frequency velocity while setting Channel 2 to a completely incompatible acceleration type will result in a configuration validation fault, locking out the module’s alarm outputs.
PRO TIP: When swapping a 3500/70M, verify whether your existing I/O module uses internal safety barriers. The 3500/70M is highly sensitive to input impedance mismatches; installing a standard, non-barrier card into a slot wired for an internal barrier I/O module will severely distort velocity measurements, resulting in false alerts or missed trips.
Dynamic FAQ
- Q: Can I use standard Velomitor sensors with the Bently Nevada 3500/70M?
- A: Yes. The 3500/70M fully supports standard Velomitor and accelerometer inputs, but you must ensure your rear I/O module jumper configurations match the sensor’s power and input impedance requirements.
- Q: What exactly is “Impulse Acceleration” and how does it differ from standard acceleration?
- A: Standard acceleration measures continuous vibration energy. Impulse Acceleration is a peak-detection algorithm designed specifically to capture short-duration, high-amplitude impact events—like a loose mechanical part hitting a housing—while ignoring steady-state machine rumble.
- Q: Is the 3500/70M module hot-swappable in a live 3500 rack?
- A: Yes, Bently Nevada 3500 modules are hot-swappable. However, because the 3500/70M is a safety-critical machinery protection card, you must bypass or inhibit any downstream trip relay logic connected to this card before removing it to prevent a false plant shutdown.
- Q: Do you provide a performance guarantee on surplus 3500/70M units?
- A: Absolutely. Every 3500/70M card we supply—whether new surplus or fully reconditioned—carries our comprehensive 12-month warranty covering any component failures, channel calibration issues, or firmware faults.
