Description
Product Introduction
The Bently Nevada 3500/72M 176449-08 is a specialized four-channel Reciprocating Rod Position Monitor (RRPM) engineered for the 3500 Machinery Protection System. Designed specifically to meet API 618 standards for reciprocating compressors, this module accepts signal inputs from eddy current proximity transducers, conditioning the raw signals to provide dynamic and static measurements of piston rod displacement.
By continuously tracking rider ring wear (rod drop), rod position, and hyper-compressor piston behavior, the 3500/72M 176449-08 alerts maintenance teams to mechanical wear long before catastrophic piston-to-cylinder wall contact occurs. The channels are programmed in paired groups via 3500 Rack Configuration Software, allowing simultaneous monitoring of rod drop, crank angle positioning, and vibration parameters with programmable Alert and Danger trip relays.
Key Technical Specifications
| Parameter | Value |
| Catalog / Part Number | 3500/72M (Part Number: 176449-08) |
| Manufacturer | Bently Nevada (Baker Hughes) |
| System Compatibility | Bently Nevada 3500 Series Rack (Full-Height Slot) |
| Number of Channels | 4 Proximity Transducer Input Channels |
| Transducer Inputs | 3300 XL 8mm / 11mm Proximitor Sensor Systems, 7200 series |
| Monitored Parameters | Rod Position, Rod Drop (Rider Ring Wear), Hyper-Compressor Displacement |
| Standard Compliance | API 618 (Reciprocating Compressors) |
| Rack Slot Occupancy | Requires 1 Main Monitor Slot (uses corresponding rear I/O module 140471-01 or 140482-01) |
| Power Consumption | 7.7 Watts Typical (draws power from 3500 system backplane) |
| Signal Processing | 24-bit A/D conversion with software-selectable filtering |
| Operating Temp | -30°C to +65°C (-22°F to +149°F) |
Application Scenarios & The “Trench” Experience
A critical hydrogen recycle reciprocating compressor at a refinery experiences subtle rider ring degradation over weeks of continuous operation. Without active rod drop monitoring, the piston would eventually drop low enough to score the cylinder liner, resulting in a multi-week unplanned outage and high repair costs. A 3500/72M 176449-08 monitor continuously measures the vertical position of the piston rod relative to the proximity probe during specific crank angle windows. When rider ring wear exceeds configured tolerances, the 3500/72M triggers an Alert relay in the plant DCS, enabling scheduled maintenance and seal ring replacement without cylinder damage.
- Refinery Hydrotreating & Hydrocracking Skids: Continuous rider ring wear tracking on high-pressure hydrogen gas reciprocating compressors.
- Petrochemical Ethylene Hyper-Compressors: Monitoring extreme displacement and rod flexing under high compression ratios.
- Natural Gas Transmission Pipeline Stations: Protects multi-stage reciprocating booster compressors against rod misalignment and crosshead guidance failures.
- Fertilizer & Ammonia Synthesis Plants: API 618 compliant protection for synthesis gas process compressors.

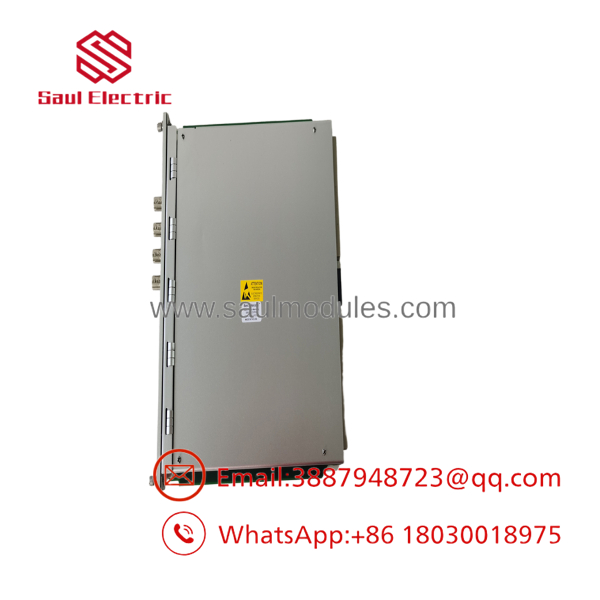

3500/72M 176449-08

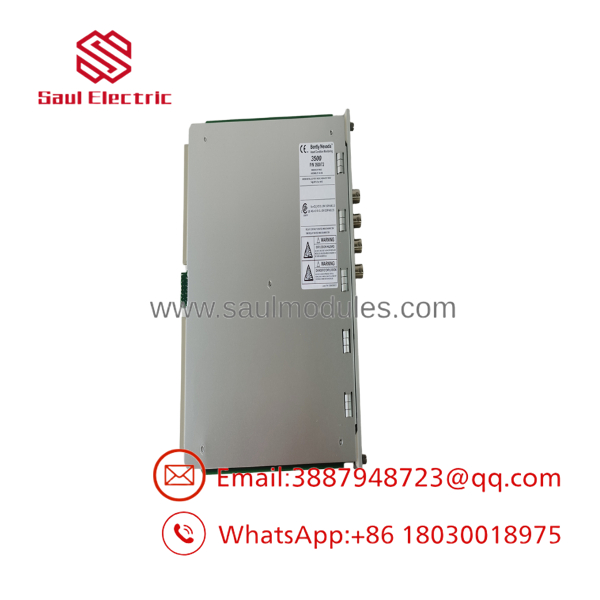

3500/72M 176449-08
Transparency SOP: Quality Assurance & Testing
- Visual & Structural Inspection: Module faceplate, latch levers, card edge backplane connector pins, and solder joints are inspected for corrosion, bent pins, or thermal stress.
- Backplane & Boot Diagnostic Test: Inserted into a Bently Nevada 3500 test rack (with 3500/15 Power Supply and 3500/22M RIM) to verify firmware initialization, rack slot address recognition, and green OK LED status.
- Multi-Channel Calibration Test:
- Proximitor Signal Conditioning: Connected to a calibrated 3300 XL 8mm proximity probe setup on a micrometer fixture.
- Rod Drop & Position Verification: Static DC gap voltage (-2 to -18 VDC) and dynamic AC displacement sweeps are verified across all 4 channels to confirm linear voltage-to-mil/millimeter scaling.
- Configuration & Alarm Sweep: Linked to 3500 Rack Configuration Software to test Alert and Danger trip logic, relay bus triggering, and buffered front BNC jack output integrity.
- Final ESD Packaging: Cleaned, fitted with edge connector covers, wrapped in static-shielding bags, and packed in heavy-duty foam casing.
The Veteran’s Tech Trap Guide (Crucial Value-Add)
- ⚠️ Rear I/O Module Selection: The 3500/72M main card (176449-08) must be paired with the correct rear I/O module (e.g., 140471-01 internal termination or 140482-01 external termination). Inserting a 3500/72M into a slot wired for a standard 3500/42M vibration monitor will trigger a module mismatch error on the 3500/22M RIM.
- ❗ Crank Angle Phase Reference Switch Required: To accurately measure rod drop on reciprocating compressors, the system usually requires a Phase Reference (Keyphasor) input from the crankshaft to trigger measurement at the exact top-dead-center (TDC) or bottom-dead-center (BDC) piston position. Operating without a valid phase reference limits the module to average position measurements rather than true crank-synchronous rod drop.
- ⚠️ Proximity Probe Gap Alignment: Set the baseline proximity probe gap voltage (typically -8 to -10 VDC) while the compressor is cold and at rest, accounting for thermal expansion during operation. Incorrect cold-gap setting can cause channel saturation (-18V) when the rod shifts under thermal load.
- ❗ Channel Pair Configuration Constraints: Channels on the 3500/72M are configured in paired channels (Channels 1 & 2, Channels 3 & 4). Both channels in a pair must share complementary measurement modes (e.g., Rod Position vs. Rod Drop) as configured in the 3500 Rack Configuration Software.
Frequently Asked Questions (FAQ)
Q: What is the primary difference between the 3500/72M and a standard 3500/42M monitor?
A: The 3500/42M is designed for general rotating machinery (turbines, pumps, blowers) measuring continuous radial vibration and thrust. The 3500/72M is specifically tuned for reciprocating compressors, incorporating specialized algorithms for rider ring wear (rod drop), crank-angle-triggered rod position, and hyper-compressor stroke tracking.
Q: Does the 3500/72M meet API 618 standards for reciprocating machinery?
A: Yes. The 3500/72M Recip Rod Position Monitor is specifically built to meet and exceed API 618 monitoring requirements for continuous protection of reciprocating compressors.
Q: Can I hot-swap the 176449-08 card while the 3500 rack is powered on?
A: Yes. Bently Nevada 3500 main monitor cards support hot-swapping (“maintaining under power”). However, ensure alarm bypasses are engaged on the downstream control system/ESD before pulling the card to prevent unintended trip signals.
Q: What software is required to program the 3500/72M card?
A: Configuration, threshold limits, and transducer calibration curves are programmed using Bently Nevada 3500 Rack Configuration Software via the 3500/22M RIM Ethernet/serial interface.
Q: What warranty is supplied on surplus or reconditioned 176449-08 modules?
A: All New Surplus and fully reconditioned 3500/72M 176449-08 modules include a full 12-month replacement warranty from the invoice date.
