Bently Nevada 3500/72M Reciprocating Compressor Rod Monitor

Description

Product Introduction & Engineering Value

For years, measuring rider band wear on reciprocating compressors was a massive headache that required splitting sensor signals to separate monitor channels. The 3500/72M Recip Rod Position Monitor solves this headache by introducing combined channel types that process both dynamic rod position and static rod drop measurements on a single channel.

By eliminating the need for complex external signal-splitting hardware, this module reduces system complexity while maintaining full compliance with API 618 requirements. It interfaces directly with standard proximity probes, providing operational personnel with continuous, real-time metrics on packing case alignment, piston rod deflection, and rider band degradation.

Technical Specifications

• Number of Channels: 4 independent, programmable channels (configured in pairs).
• Compatible Sensors: Standard inductive proximity probes and position transducers.
• Input Impedance: Nominal 10 kΩ.
• Transducer Power Supply: -24 Vdc (short-circuit protected).
• Scale Factors (Configurable): 3.94 mV/µm (100 mV/mil) or 7.87 mV/µm (200 mV/mil).
• Frequency Response (Peak-Peak): Fixed 1 Hz to 600 Hz.
• Buffered Outputs: Front-panel coaxial connector per channel; 550 Ω output impedance.
• Analog Recorder Outputs: 4–20 mA proportional outputs; maximum 600 Ω load.
• Power Consumption: 7.7 Watts nominal.
• Operating Temperature: -30°C to +65°C (-22°F to +149°F) with standard I/O.

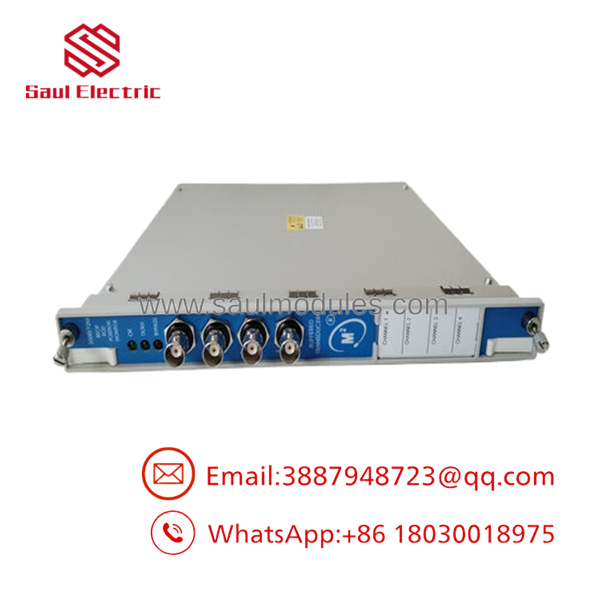

3500/72M

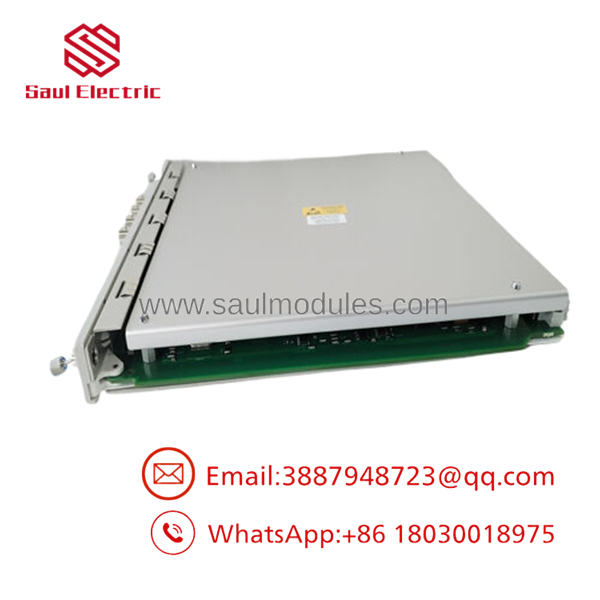

3500/72M

Field Application & The “Trench” Experience

The “Trench” Story

During a mid-summer turnaround at a major hydrogen purification plant, the maintenance crew noticed a sudden, unexplained jump in the raw DC gap voltage of a reciprocating compressor’s third-stage cylinder. The plant relied on an older version of the 3500/72M with legacy firmware. Because the signal had to be split externally between separate vibration and rod drop modules, tracing the noise source took hours of tracking physical jumper wires. We replaced the system with a newer firmware revision of the 3500/72M, configured it with “Rod Position Single 2” channels, and combined the rod drop and dynamic vibration measurements onto a single physical input. The signal noise instantly vanished, and the operators could finally view real-time rider band wear and rod tilt on a single screen without signal loss.

Specific Niche Applications

• Refinery Hydrogen Reciprocating Compressors: Continuous monitoring of piston rod drop to prevent piston-to-cylinder contact during high-pressure refining cycles.
• Hyper-Compressor Plunger Monitoring: High-pressure low-density polyethylene (LDPE) applications where plunger alignment and packing seal integrity are critical.
• Petrochemical Catalytic Reformer Recycle Gas Compressors: Tracking rod dynamic behavior and crank-angle relationships to diagnose crosshead pin and main bearing degradation early.

Transparency SOP: QA & Testing

Every 3500/72M module that passes through our inventory undergoes a strict, multi-step validation process before it is packaged for shipment:

1. Visual Inspections: We examine the main processor board (PWA 176449-99U) under high magnification to check for microscopic trace fractures, solder fatigue, or localized thermal stress.
2. Static Bench Diagnostics: Power supplies are checked to ensure they pull a nominal 7.7 Watts without current spikes, and the onboard -24 VDC transducer excitation voltage is verified.
3. Dynamic Signal Simulation: Using a precision signal generator, we inject dynamic and static position waveforms (representing various rod drop rates and 1X/2X runout profiles) into all four channels. We verify that the front-panel OK, TX/RX, and Bypass LEDs operate correctly.
4. Alarms & Logic Validation: We load mock configurations via the 3500 Rack Configuration Software, test Alert and Danger setpoints, and verify that the backplane relay outputs trip exactly within the programmed time delay.

The Veteran’s Tech Trap Guide

• ⚠️ Firmware Version Trap: If you are upgrading to or replacing a unit with the newer “Rod Position Single 2” or “Rod Position Pair 2” combined monitoring capabilities, your 3500 Rack Configuration Software must be at Version 6.0 or higher. Trying to load an older configuration file into a new card without updating the software will result in a configuration mismatch fault on the rack’s TDI module.
• PRO TIP: When configuring “Rod Drop” measurements, remember that the software uses similar triangles to extrapolate physical rider band wear. You must enter the exact physical distance from the probe to the cylinder pressure packing case and the piston length in the software. Guessing these dimensions will make your calculated rider band wear readings completely useless.
• ⚠️ Hot-Swapping Danger: While Bently 3500 racks technically support hot-swapping, you must first bypass the channel or rack relays before pulling the module. If you pull a 3500/72M that is actively tied into the compressor’s ESD (Emergency Shutdown) system without engaging the Bypass switch first, the sudden loss of “OK” status on the module will trigger an immediate, unscheduled machine trip.

Dynamic FAQ

• Q: Is this a “New Surplus” module, and does it come with a warranty?
  • A: Yes. We offer both New Surplus and fully tested Refurbished options. Each module is covered by a comprehensive 12-month warranty from the date of shipment to ensure physical and functional reliability.
• Q: Can the 3500/72M monitor standard radial vibration on a regular centrifugal pump?
  • A: No. The 3500/72M is highly specialized for reciprocating machinery. It uses specialized filtering (such as Gap filters and Crank-Angle tracking) that are not suitable for standard radial vibration monitoring. For centrifugal pumps, you should use the 3500/42M Proximitor Seismic Monitor.
• Q: Does this module require a specific I/O module on the backplane of the 3500 rack?
  • A: Yes. The 3500/72M must be paired with its corresponding I/O module in the slot directly behind it. It is compatible with standard Prox/Seismic I/O modules (with either internal or external terminations) as well as internal barrier I/O modules for hazardous areas.
• Q: How does the module output rod position data to our plant’s DCS or PLC?
  • A: The 3500/72M provides proportional 4–20 mA analog outputs for each of its four channels. For deep diagnostic waveform data (including orbit plots and trend logs), it transmits digital data across the backplane to the 3500 Transient Data Interface (TDI) module, which communicates with GE’s System 1 software.
