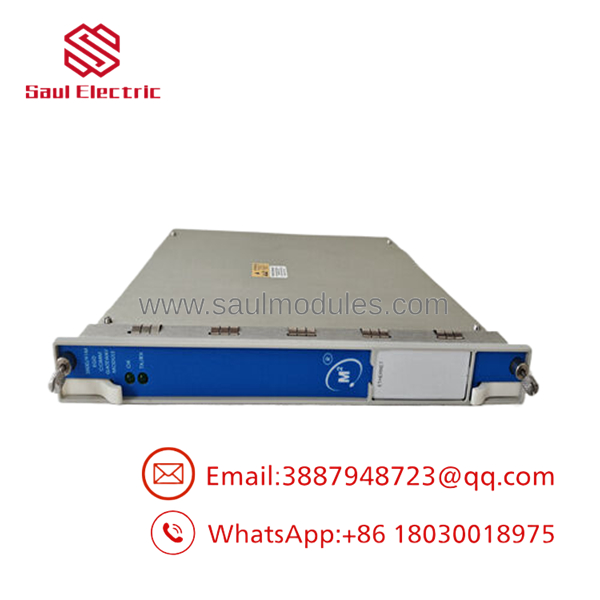

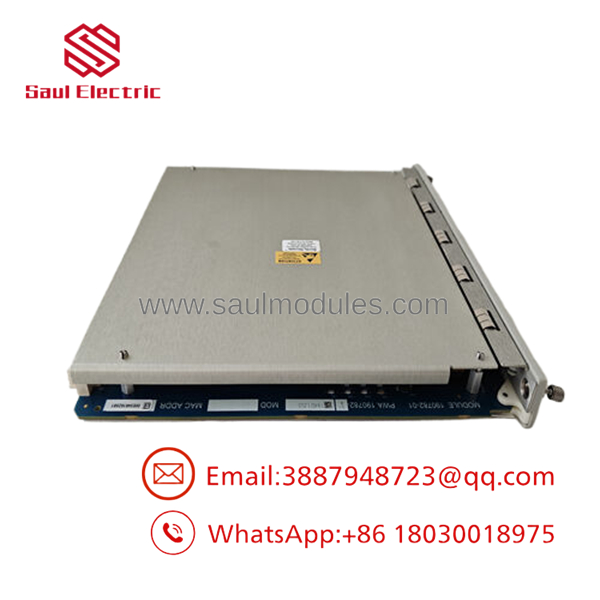

Bently Nevada 3500/91-02-00 190782-01 EGD Communication Gateway Module

Description

Product Introduction

The Bently Nevada 3500/91-02-00 (190782-01) is an EGD Communication Gateway Module developed for the 3500 Machinery Protection System. Instead of monitoring vibration directly, it transfers machinery protection data from the 3500 rack to compatible control systems over an Ethernet Global Data (EGD) network. It is commonly deployed with GE Mark VI, Mark VIe, and other EGD-capable controllers.

This particular configuration differs from the standard copper Ethernet version because it uses a 100BASE-FX fiber-optic communication interface, making it suitable for long-distance connections and electrically noisy industrial environments. One thing to watch out for is that replacing the module is only part of the job—you also need to verify network configuration, firmware compatibility, and the associated 3500/22M TDI settings before returning the system to service.

Key Technical Specifications

3500/91-02-00 190782-01

3500/91-02-00 190782-01

Application Scenarios & The “Trench” Experience

The control room suddenly loses every vibration tag from a turbine train.

The machinery hasn’t tripped.

The probes are healthy.

Every monitor inside the rack still shows normal status.

After several hours of troubleshooting, the maintenance team discovers the problem isn’t the vibration system at all—it’s the communication gateway.

I’ve seen this happen more than once. Engineers often replace sensors first because that’s where the alarms appear. In reality, the 3500/91 is simply no longer publishing EGD data to the controller.

Typical Applications

Power Generation – GE Mark VIe Turbine Control –
Transfers machinery protection data over EGD to the turbine control system using a fiber-optic Ethernet backbone.

Oil & Gas – Compressor Protection Systems –
Provides vibration, alarm, and machinery status information from the 3500 rack to the DCS.

Petrochemical Plants – Central Monitoring Networks –
Uses fiber communication where long cable runs and electrical interference make copper Ethernet less desirable.

Pipeline Compressor Stations – Remote Equipment Integration –
Supports reliable communication between protection racks and supervisory control systems.

Refineries – Machinery Health Data Collection –
Allows historians and plant control systems to receive real-time condition monitoring information without modifying the protection logic.

Field Replacement Example

A refinery scheduled an eight-hour shutdown to replace a failed fiber switch. After startup, operators noticed that the DCS no longer displayed compressor vibration values, although the 3500 rack indicated normal operation.

Network testing confirmed the fiber infrastructure was healthy. The root cause was a failed 3500/91-02-00 gateway. A tested replacement restored EGD communication within minutes, avoiding another production interruption.

Transparency SOP: Quality Assurance & Testing

We don’t just ship boxes; we test them on actual Bently Nevada 3500 racks.

• Inbound Inspection
  • Verify OEM labels, serial number, and hardware revision.
  • Inspect fiber-optic connectors for contamination or damage.
  • Examine rack edge connectors for wear or corrosion.
• Live Rig Testing
  • Install the module in a compatible 3500 rack.
  • Verify startup diagnostics.
  • Confirm communication with the 3500/22M TDI.
  • Test EGD packet transmission using a compatible controller or simulator.
• Electrical Parameter Checks
  • Measure operating current.
  • Verify optical link establishment.
  • Confirm stable communication under continuous operation.
• Firmware Verification
  • Record firmware revision.
  • Verify compatibility with the installed TDI firmware and rack configuration.
  • Document configuration before shipment.
• Final QC & Anti-Static Packaging
  • Perform final inspection.
  • Protect optical interfaces with dust caps.
  • Package in ESD-safe materials with impact protection.

The Veteran’s Tech Trap Guide

⚠️ Don’t confuse the “-01” and “-02” versions.
The 3500/91-02-00 uses a 100BASE-FX fiber interface, while other configurations may use copper Ethernet. Verify the installed network media before ordering.

❗ Check the fiber polarity first.
A reversed transmit/receive pair looks exactly like a failed gateway. Spend two minutes checking the fiber before replacing hardware.

⚠️ The gateway depends on the 3500/22M TDI.
If the TDI firmware is incompatible or unavailable, the gateway cannot exchange rack data correctly.

❗ Back up the configuration before replacing the module.
IP addressing, EGD exchange parameters, and controller configuration are easy to overlook during a maintenance outage.

⚠️ One gateway per rack.
The 3500 architecture supports only a single 3500/91 gateway in each rack.

Frequently Asked Questions (FAQ)

Q1: What is the difference between 3500/91-01 and 3500/91-02?

A: The primary difference is the network interface. The 3500/91-02-00 (190782-01) is configured with a 100BASE-FX fiber-optic interface, making it suitable for fiber-based industrial Ethernet networks.

Q2: Does this module perform vibration monitoring?

A: No. It is strictly a communication gateway. Monitor modules such as the 3500/42M or 3500/44M acquire and process machinery measurements.

Q3: Can the module be replaced without changing the entire rack?

A: In most cases, yes. Verify the hardware revision, firmware compatibility, and EGD configuration before commissioning the replacement.

Q4: Does the module require a 3500/22M TDI?

A: Yes. The 3500/91 communicates through the 3500/22M Transient Data Interface, which is a required component of the system architecture.

Q5: Is this module hot-swappable?

A: Follow your site’s maintenance procedure. Although replacing the gateway generally does not interrupt the machinery protection logic, removing hardware from an energized rack should only be done in accordance with OEM guidance and plant safety procedures.

Q6: Why is surplus inventory less expensive than buying directly from the OEM?

A: Most surplus units originate from plant upgrades, project cancellations, or maintenance inventory. Lower pricing reflects sourcing, not necessarily product condition. Inspection records, functional testing, and traceability are far more important than price alone.

Q7: What warranty is typically available?

A: Most reputable industrial automation suppliers offer a 12-month warranty on tested surplus or professionally refurbished modules. Always request test reports, serial-number verification, and firmware documentation before purchasing.
