Bently Nevada 3500/92 Modbus Communication Gateway Module

Description

Product Introduction

The Bently Nevada 3500/92 Modbus Communication Gateway module is the dedicated digital network bridge for the 3500 Machinery Protection System. While individual monitor cards offer 4–20 mA current outputs for basic signal transmission, the 3500/92 provides comprehensive, high-speed digital register access to all measured rack variables, channel status flags, OK limits, Alert/Danger alarm states, and system event logs over a single network drop.

By supporting both Modbus TCP/IP over Ethernet and Modbus RTU/ASCII over serial interfaces (RS232, RS422, RS485), the 3500/92 module eliminates the need for massive analog wiring runs and expensive DCS input cards. It enables plant operators to view real-time machinery protection data directly on Distributed Control System (DCS) graphics or Programmable Logic Controller (PLC) touchscreens with millisecond-level register updates.

Key Technical Specifications

Application Scenarios & The “Trench” Experience

Picture this: A major refinery commissioning team is tying a 3500 vibration rack containing 48 active monitoring channels into an Emerson DeltaV or Honeywell Experion DCS. Hardwiring 48 separate 4–20 mA analog pairs plus 96 dry contact alarm wiring runs requires hundreds of terminations, drawing field wiring costs through the roof. Inserting a Bently Nevada 3500/92 Gateway card allows a single Ethernet cable drop to transmit every dynamic vibration value, bearing temperature, gap voltage, and alarm register straight into the DCS database in minutes.

• DCS & SCADA Network Integration – Refineries, Chemical Plants, & Power Generation – Transmits real-time vibration amplitude and alarm flags directly into main control room operator consoles.
• PLC Interlock Logic – Compressors & Turbines – Delivers high-speed digital Modbus RTU registers over RS485 to safety PLCs for auxiliary oil pump starters or process interlocks.
• Remote Asset Telemetry – Offshore Platforms & Pipeline Stations – Streams full 3500 rack health status over long-distance Modbus TCP/IP links to centralized monitoring centers.

3500/92

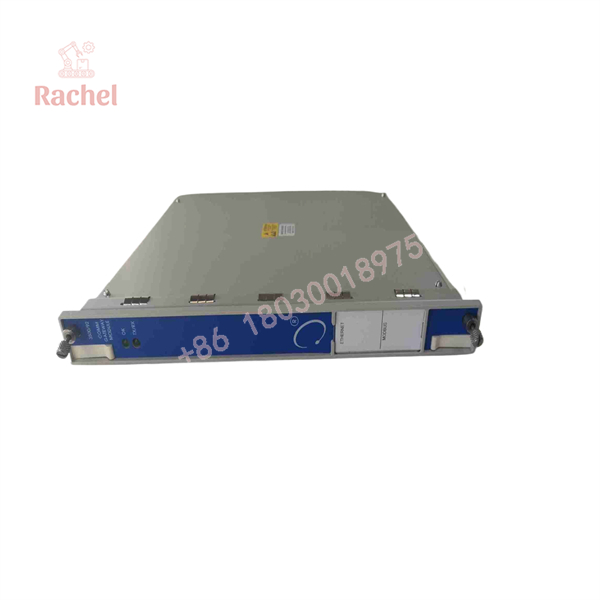

3500/92

Transparency SOP: Quality Assurance & Testing

We test every Gateway module on live 3500 rack test benches prior to shipment:

1. Physical & Port Audit: Inspect faceplate latching mechanics, edge connectors, and rear I/O port pin alignments.
2. Backplane & Self-Test Verification: Seat module into a 3500 test chassis, apply power, and verify OK LED status during card initialization.
3. Modbus TCP/IP Ethernet Testing: Connect Ethernet RJ45 port to a Modbus master simulator software; poll all 3500 rack registers (FC03/FC04) to confirm 100% data polling accuracy without timeout errors.
4. Serial Port (RS485 / RS232) Loop Verification: Test serial communication baud rates (9600–115200 baud) and verify RS485 multi-drop signal isolation.
5. Final QC & Anti-Static Packaging: Enclose module in anti-static ESD shielding bags and ship inside custom foam-lined cartons.

The Veteran’s Tech Trap Guide

• ⚠️ High Memory (-02) vs. Low Memory (-01) Option: If your 3500 rack contains many monitor cards (e.g., more than 6–8 multi-channel cards), you MUST select the High Memory (-02) variant. The Low Memory card (-01) lacks sufficient internal RAM buffer space to hold full rack register maps, leading to missing Modbus register data!
• ❗ RS485 2-Wire vs. 4-Wire Jumper Settings: When connecting via serial RS485, ensure the jumpers on the rear I/O module are correctly set for 2-wire or 4-wire operation to match your PLC/DCS serial card. Mismatched jumper settings will cause communication timeouts and bus contention errors.
• ⚠️ Modbus Register Addressing Offset (+1 Offset): Bently Nevada 3500 Modbus register addresses in software documentation are 1-based. Many PLCs (like Allen-Bradley Logix or Modicon) use 0-based addressing. If your PLC reads offset values (e.g., reading bearing 1 vibration value on channel 2’s register), subtract 1 from the target register address in your PLC configuration.
• ❗ Independent Protection Loop Operation: The 3500/92 is a communication module only. It does NOT participate in primary trip logic. If the 3500/92 fails or loses network link, the 3500 rack continues executing machinery trip protection independently via its relay cards (3500/32 or 3500/33).

Frequently Asked Questions (FAQ)

Q: Can a single 3500/92 module communicate via Ethernet and Serial simultaneously?

A: Yes. The 3500/92 card can concurrently serve Modbus TCP/IP data over its Ethernet port while transmitting Modbus RTU data over its serial RS232/RS422/RS485 ports.

Q: What is the main difference between the 3500/22M TDI and the 3500/92 Gateway?

A: The 3500/22M TDI is designed for Bently Nevada System 1 diagnostic software (transient waveforms, spectrums, Bode plots). The 3500/92 is a dedicated Modbus gateway designed specifically for industrial control systems (DCS, PLC, SCADA).

Q: How do I configure the Modbus register map for the 3500/92 card?

A: Modbus register mapping, IP addresses, baud rates, and slave IDs are configured using Bently Nevada 3500 Rack Configuration Software via the 3500/22M TDI or front panel connection.

Q: Is the 3500/92 card hot-swappable?

A: Yes. You can insert or remove a 3500/92 card while the 3500 rack is powered without disrupting primary machinery monitoring or safety trip loops on adjacent monitor cards.

If you would like to review specific Modbus register allocation tables, examine rear I/O part numbers (such as 136180-01 or 125736-01), or check current pricing for factory-sealed units like the 3500/92 New In Box or the 3500/92-02-01-00, I can pull together those technical details for your project.
