Description
Product Introduction

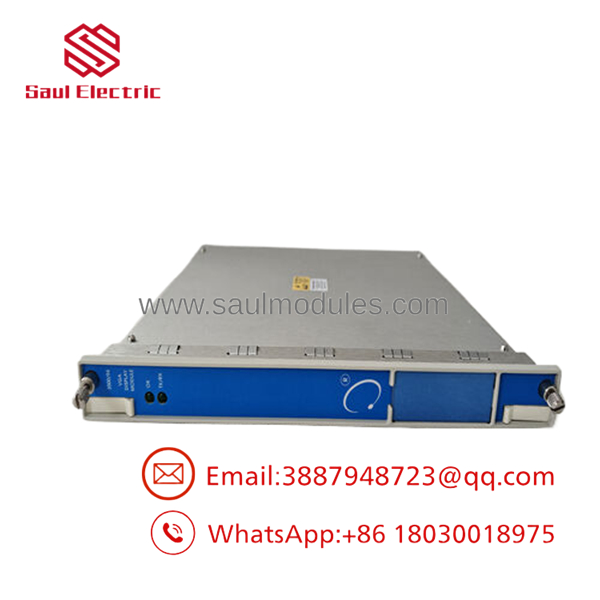

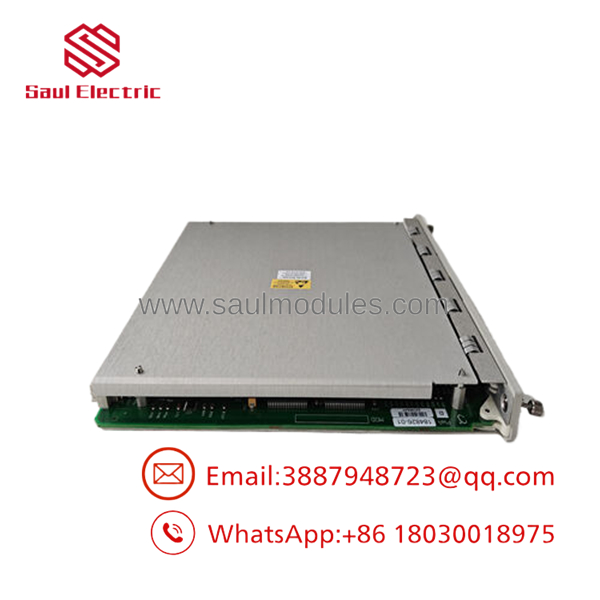

The Bently Nevada 3500/94M 184826-01 is a VGA Display Monitor Module designed for the 3500 Machinery Protection System. It provides operators and maintenance engineers with a dedicated touchscreen interface for viewing vibration measurements, shaft position, alarm status, relay conditions, diagnostic information, and system events without requiring a separate engineering workstation.
Unlike the earlier 3500/93 System Display, the 3500/94M offers a color VGA touchscreen, supports multiple custom display pages, and can display information from up to four separate 3500 racks on a single screen. In our field experience, this makes it much more practical for central control rooms supervising several turbine or compressor trains.
Key Technical Specifications
| Parameter | Value |
|---|---|
| Manufacturer | Bently Nevada |
| Model | 3500/94M |
| Part Number | 184826-01 |
| Product Type | VGA Display Monitor Module |
| System Platform | 3500 Machinery Protection System |
| Display Type | Color VGA Touchscreen |
| Supported Display Sizes | 10-inch or 15-inch industrial touchscreen |
| Number of Supported Racks | Up to 4 separate 3500 racks |
| Custom Display Pages | Up to 9 configurable screens |
| Default Screens | 1X vibration bar graph, Gap values, alarms, events |
| Maximum Standard Display Distance | 6 m (20 ft) |
| Maximum Distance with KVM Extender | Up to 10 km (6.2 miles) |
| Maximum Power Consumption | 4.6 W (VGA module) |
| Operating Temperature | -20°C to +65°C |
| Storage Temperature | -40°C to +85°C |
Application Scenarios & The “Trench” Experience
The machinery is healthy.
The protection rack is healthy.
But the operator can’t see anything.
That happens more often than people think.
One refinery called after a planned outage because the vibration display never came back online. The maintenance team immediately suspected failed monitor cards. After two hours of troubleshooting, the problem turned out to be the display module itself.
The machinery protection system never stopped protecting the compressor.
The operators simply lost their window into it.
Typical Application Scenarios
Power Generation – Turbine Control Rooms –
Displays shaft vibration, thrust position, differential expansion, and alarm conditions from multiple turbine trains on one touchscreen.
Oil & Gas – Compressor Stations –
Provides maintenance personnel with immediate access to machine health without connecting engineering software.
Petrochemical Plants – Central Equipment Monitoring –
Displays information from multiple 3500 racks installed throughout the plant.
Pipeline Compressor Facilities – Local Operator Panels –
Allows technicians to review alarm history and machine conditions directly at the equipment.
Industrial Manufacturing – Rotating Equipment Diagnostics –
Supports predictive maintenance by displaying live vibration trends and system diagnostics.
Field Replacement Example
A combined-cycle power station experienced repeated operator complaints after replacing several vibration monitors during an outage. Machine protection was functioning correctly, but the control room touchscreen remained blank.
Testing confirmed healthy rack communications.
Replacing the 3500/94M 184826-01 restored the complete graphical interface immediately. Startup continued without delaying commercial operation.
Sometimes the display really is the only failed component.
- 3500/94M 184826-01
- 3500/94M 184826-01
Transparency SOP: Quality Assurance & Testing
We don’t just ship boxes; we test them on actual Bently Nevada 3500 racks.
1. Inbound Inspection
- Verify OEM labels, serial numbers, and hardware revision.
- Inspect touchscreen glass for scratches and pressure damage.
- Examine VGA and communication connectors.
- Check for evidence of unauthorized repair.
2. Live Rack Testing
- Install the module in a compatible 3500 rack.
- Verify successful boot sequence.
- Confirm communication with monitor modules.
- Verify operation of all touchscreen functions.
- Test multiple custom display pages.
3. Electrical Parameter Checks
- Measure operating current.
- Verify stable VGA output.
- Test touchscreen calibration.
- Confirm communication with the display interface.
4. Firmware Verification
- Record firmware revision.
- Verify compatibility with the installed rack configuration.
- Archive configuration before shipment.
5. Final QC & Anti-Static Packaging
- Complete functional testing.
- Protect touchscreen with removable protective film.
- Package using ESD-safe materials.
- Secure display against shipping vibration.
The Veteran’s Tech Trap Guide
⚠️ Don’t replace monitor modules just because the screen is blank.
First verify whether the 3500/92 Communication Gateway or System 1 software is still receiving live data. If they are, the machinery protection system is probably healthy.
❗ Check the touchscreen calibration before declaring the module defective. Trust me.
I’ve seen operators think a display had failed when the touch coordinates were simply out of calibration.
⚠️ Verify the VGA cable and interface module.
Loose connectors or damaged cables produce exactly the same symptoms as a failed display module.
❗ Know the distance limits.
Standard VGA cables support 20 ft (6 m). If your display is located farther away, you need a supported KVM extender. Otherwise you’ll spend hours chasing what looks like an intermittent hardware failure.
⚠️ Back up your custom display pages.
Many plants spend years building custom machine train layouts. Losing that configuration during replacement creates unnecessary commissioning work.
Frequently Asked Questions (FAQ)
Q1: What does the Bently Nevada 3500/94M 184826-01 do?
A: It provides a color VGA touchscreen interface that displays machine vibration, alarms, system events, module status, and custom monitoring screens for the 3500 Machinery Protection System.
Q2: Can one display monitor multiple 3500 racks?
A: Yes. The 3500/94M can display information from up to four independent 3500 racks, making it well suited for centralized control rooms.
Q3: Does this module perform machinery protection?
A: No. It is an operator display only. Protection functions remain the responsibility of the monitor modules installed in the 3500 rack.
Q4: What is the advantage of the 3500/94M over the older 3500/93?
A: The 3500/94M adds a color VGA touchscreen interface, supports multiple custom display pages, and can monitor up to four racks from one display. It offers greater flexibility for modern control rooms.
Q5: Is the display hot-swappable?
A: Follow your plant’s maintenance procedures and the OEM documentation. Replacing the display generally does not interrupt machinery protection, but hardware should not be removed from an energized system unless approved by site procedures.
Q6: Why is surplus inventory less expensive than buying directly from the OEM?
A: Most surplus inventory comes from modernization projects, cancelled installations, or unused maintenance stock. Price reflects sourcing rather than functionality. Inspection reports, firmware verification, and live rack testing are much better indicators of quality than purchase price.
Q7: What warranty is normally available?
A: Most reputable industrial automation suppliers provide a 12-month warranty on professionally tested surplus or refurbished 3500/94M 184826-01 modules. Before purchasing, request the functional test report, firmware revision record, and serial-number verification.
