Description
Product Introduction & Engineering Value
Power integrity is often overlooked until a protection rack unexpectedly drops offline. The Bently Nevada 3500/15 power supply module maintains the DC power conversion required by rack-mounted monitoring modules, helping ensure stable operation of vibration, position, and condition monitoring channels.
The 125840-01 version is commonly maintained as a spare component in plants operating Bently Nevada 3500 systems. Replacing a failed power supply module allows maintenance teams to restore rack availability without disturbing installed monitoring modules.
Technical Specifications
| Specification | Details |
|---|---|
| Manufacturer | Bently Nevada |
| Model Number | 350015-125840-01 |
| Product Name | 3500/15 Power Supply Module |
| System Platform | Bently Nevada 3500 Machinery Protection System |
| Module Type | Rack power supply |
| Input Type | AC power supply version |
| Installation | 3500 rack power supply slot |
| Output Function | Provides regulated power to rack modules |
| Power Architecture | Primary and redundant supply capability |
| Rack Compatibility | Bently Nevada 3500 Series racks |
| Monitoring Role | Supports continuous machinery protection operation |
| Application | Turbine, compressor, and rotating equipment monitoring systems |
Field Application & The “Trench” Experience
A combined-cycle power plant experienced an intermittent loss of communication from one machinery protection cabinet monitoring a gas turbine auxiliary system. The vibration modules were healthy, but the rack occasionally restarted during operation.
The instrumentation team checked the rack power diagnostics and found the aging power supply module was no longer maintaining stable output under load. A tested Bently Nevada 350015-125840-01 replacement was installed during a scheduled maintenance window. After confirming rack voltage stability and module startup sequence, the protection system returned to normal service.
Typical application scenarios include:
Gas turbine protection systems
- 3500 rack power restoration
- Continuous vibration monitoring support
- Auxiliary equipment protection
Steam turbine machinery monitoring
- Rack availability maintenance
- Protection cabinet servicing
- Lifecycle spare management
Industrial process plants
- Compressor monitoring systems
- Pump protection cabinets
- Existing Bently Nevada 3500 installations

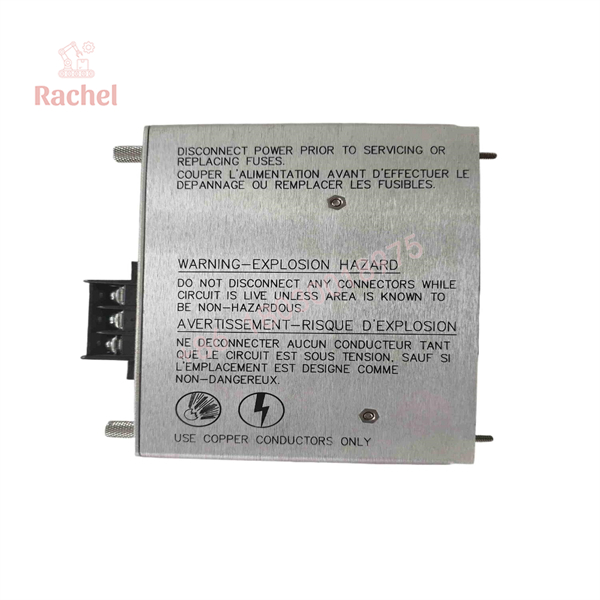

350015 125840-01

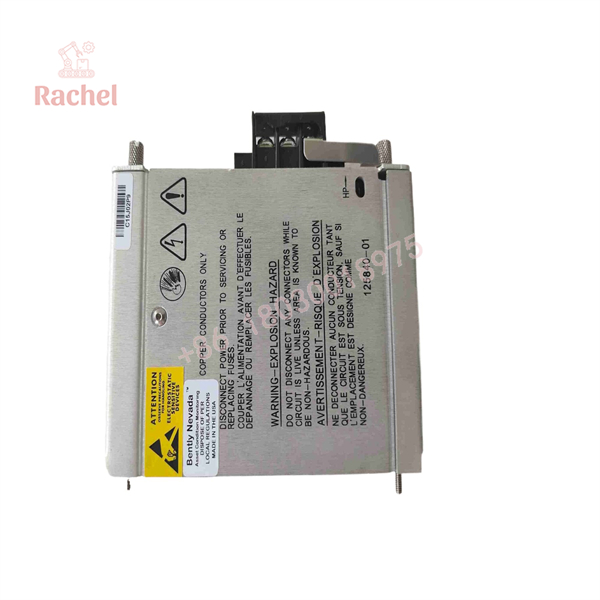

350015 125840-01
Transparency SOP: QA & Testing
Power supply modules require electrical verification because output instability can affect every installed monitoring channel.
Testing procedure:
1. Physical inspection
- Verify part number and label
- Inspect connectors
- Check housing condition
2. Electrical evaluation
- Confirm AC input response
- Measure output voltage stability
- Check startup behavior
3. Rack simulation test
- Install in compatible 3500 rack
- Verify module recognition
- Confirm stable operation under load
4. Final quality record
- Document test results
- Assign New Surplus / Refurbished status
- Package using ESD-safe protection
The Veteran’s Tech Trap Guide
⚠️ PRO TIP: Do not replace a power supply without checking rack loading.
A failing supply may be caused by excessive rack demand, damaged modules, or wiring issues rather than the power supply itself.
⚠️ Confirm AC/DC version before installation.
The Bently Nevada 3500/15 family includes different input configurations. Installing the wrong version can prevent system startup.
⚠️ Check redundant supply operation.
In dual-supply configurations, one failed module may remain hidden until the remaining supply reaches its limit.
Dynamic FAQ
Q1: What is the Bently Nevada 350015-125840-01 used for?
The 350015-125840-01 is a Bently Nevada 3500/15 power supply module used to provide operating power for modules installed in a 3500 machinery protection rack.
Q2: Is the 3500/15 power supply a monitoring module?
No. It does not measure vibration or shaft position. It supplies power required by other 3500 system modules.
Q3: What should be checked before replacing a 350015-125840-01?
Verify:
- Complete part number
- AC or DC input requirement
- Existing 3500 rack configuration
- Power consumption of installed modules
- Redundant supply arrangement
Q4: Can a 3500/15 power supply be hot-swapped?
Replacement procedures depend on the specific rack installation, plant safety procedures, and maintenance guidelines. Always follow site-approved shutdown and replacement practices.
Q5: Are refurbished Bently Nevada 350015-125840-01 modules tested?
Qualified automation suppliers typically perform visual inspection, electrical testing, and operational verification before shipping refurbished power supply modules.
Q6: What warranty is available for this module?
Warranty terms depend on supplier policy, product condition, and testing scope. Buyers should confirm warranty period and test documentation before purchase.
Q7: Why do plants keep 3500/15 modules as spare inventory?
The power supply supports the entire protection rack, so keeping a tested spare reduces downtime risk when a critical machinery monitoring cabinet experiences a power-related failure.
