Product Introduction
The Berger Lahr BLS2020 C162 (now under Schneider Electric) is a specialized rack-mounted stepper motor driver and control board. Engineered for legacy automated machinery, this module executes micro-stepping algorithms and processes high-speed pulse and direction signals to drive stepper motors smoothly across demanding industrial motion profiles.
In complex multi-axis motion architectures, the C162 sub-revision manages precise positioning loops while relieving the main rack controller of high-frequency motion calculations. Because Schneider Electric has officially sunsetted the BLS 2020 product family, securing a fully tested BLS2020 C162 is essential for keeping legacy CNC units, automated assembly stations, and indexing tables running without undertaking an expensive multi-axis drive overhaul.
Key Technical Specifications
| Parameter | Specification |
| Manufacturer | Berger Lahr / Schneider Electric |
| Model / Suffix | BLS2020 C162 |
| Product Type | Micro-Stepping Motor Drive & Control Card |
| Compatible Series | Berger Lahr BLS 2020 Modular Systems |
| Control Signal Compatibility | Pulse + Direction or CW / CCW (Clockwise / Counter-Clockwise) |
| Micro-stepping Resolution | Adjustable micro-step parameters (up to 256 micro-steps/full step) |
| Integrated Protections | Over-Current, Over-Voltage, Over-Temperature |
| Operating Temperature | 0°C to +55°C (Storage: -20°C to +60°C) |
| Physical Dimensions | Approx. 27.9 cm x 20.3 cm x 5.1 cm (11″ x 8″ x 2″) |
| Weight | Approx. 0.9 kg (1.98 lbs) |
| Lifecycle Status | Obsolete / Discontinued by Manufacturer |
Application Scenarios & The “Trench” Experience
Picture this: It’s 2:15 AM on a Tuesday, and a high-throughput pick-and-place indexing table halts mid-cycle. The main CPU reports an axis lag fault on Axis 2, and the status LEDs on the drive rack point straight to an over-current trip on a legacy Berger Lahr board. You clear the mechanical jam, but the motor channel on the old card won’t clear its internal fault latch due to damaged output MOSFETs. Sourcing an exact BLS2020 C162 replacement allows you to drop a pre-tested board into the rack bay, restore signal handshakes, and avoid a 3-week panel rebuild.
- CNC Routing & Milling Machines – Multi-axis table positioning – Requires exact micro-stepping profiles to prevent resonant tool chatter during slow feeds.
- Automated Packaging & Cartoning – Rotary indexing and feed rolls – Demands tight pulse/direction tracking for continuous material synchronization.
- Robotic Arm & Gantry Axis Control – Assembly line pick-and-place – Relies on onboard over-voltage and over-temp protections during high duty-cycle acceleration stops.
- Medical & Lab Equipment – Precision centrifuge or dispenser movement – Uses low-vibration step resolution for accurate fluid handling.

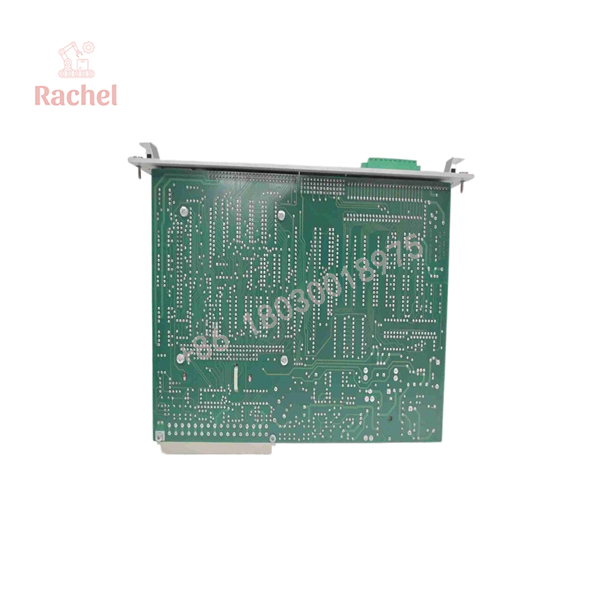

BLS2020 C162

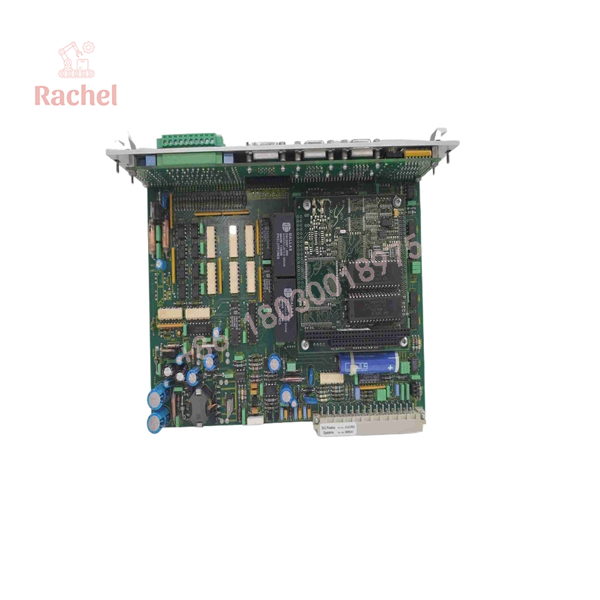

BLS2020 C162
Transparency SOP: Quality Assurance & Testing
We test every legacy drive module under load before it goes on a shelf.
- Inbound Inspection: Microscopic check of the edge connector fingers, trace pads, and onboard power capacitors for signs of thermal stress or solder degradation.
- Static Component Checks: Cold-resistance checks across output bridge transistors to catch internal short circuits before applying bus power.
- Live Rack Power-On Test: Module is seated in a test chassis to verify power regulation rails and bus handshake routines.
- Dynamic Motor Load Test: We wire a 2-phase stepping motor to the board and execute multi-frequency pulse sequences to verify smooth micro-step transitions and output current symmetry.
- Final QC & Anti-Static Packaging: Cleaned, sealed in a heavy-gauge ESD shielding bag, and boxed with high-density foam insert.
The Veteran’s Tech Trap Guide
- ⚠️ Never Hot-Swap: Always isolate power to the rack before pulling or inserting the BLS2020 C162. Live insertion generates backplane inductive spikes that can destroy the driver ICs or adjacent rack modules.
- ❗ Verify the C162 Revision Code: The “C162” suffix denotes a specific hardware revision and tuning layer. Installing a standard BLS2020 or a different revision (like P260 or I182) can result in unexpected motor direction logic or pinout mismatches.
- ⚠️ Check Motor Phase Resistance: If a previous C162 card blew its output stage, measure the winding resistance of the connected stepper motor before plugging in the new board. A shorted motor coil will immediately fry the replacement card’s power bridge.
- ❗ Backplane Alignment: Slide the board smoothly along the card guides. Forcing an unaligned board can bend backplane pins or peel trace plating on the edge connector.
Frequently Asked Questions (FAQ for Conversion)
Q: Can I replace a BLS2020 C162 with a standard BLS2020 unit?
A: To be safe, no. The “C162” suffix indicates specific onboard configuration features, timing parameters, or connector layouts. Matching the full part number ensures drop-in compatibility without software or wiring modifications.
Q: Does the BLS2020 C162 require separate parameter programming?
A: Typically no. The board executes step commands received from the main motion controller via pulse/direction signals. Any micro-step DIP switch settings on the card must be matched to your original board before power-up.
Q: How do I know if my BLS2020 C162 board or the connected motor failed?
A: Disconnect the motor leads and measure the coil resistance across phases (A+ to A-, B+ to B-). If the coils are balanced and show no short to ground, but the drive repeatedly trips on over-current upon enabling, the onboard driver bridge is likely shorted.
Q: Are these units original Schneider / Berger Lahr manufacture?
A: Yes. All stock consists of original equipment manufacturer (OEM) units sourced through audited factory surplus, plant retrofits, and inventory buybacks.
Q: What warranty comes with this discontinued motion card?
A: Every BLS2020 C162 module comes backed by a 12-month operational replacement warranty.
Q: Why choose surplus over migrating to a brand-new drive system immediately?
A: Migration requires re-engineering control panels, rewriting PLC code, and facing extended machine downtime. Drop-in surplus replacement gets your line running in minutes, allowing you to schedule retrofits on your terms.
