B&R 3CP152.9 2005 CPU Module

Description

Product Introduction & Engineering Value

The B&R 2005 3CP152.9 is a CPU module intended for established B&R 2005 control architectures where preserving the existing controller platform matters more than redesigning the machine around a newer PLC. Its 0.8 µs instruction cycle and 320 KB combined SRAM provide the processing and memory resources documented for the CP152 family.

For maintenance teams, the key advantage is compatibility with an installed 2005 architecture. The module provides both conventional RS232 communication and an electrically isolated RS485/RS422/TTY interface, with the latter supporting network-capable configurations.

Technical Specifications

The documented application-memory architecture is important: the 3CP152.9 does not include the application memory as part of the CPU order item. B&R documentation lists compatible application-memory options separately.

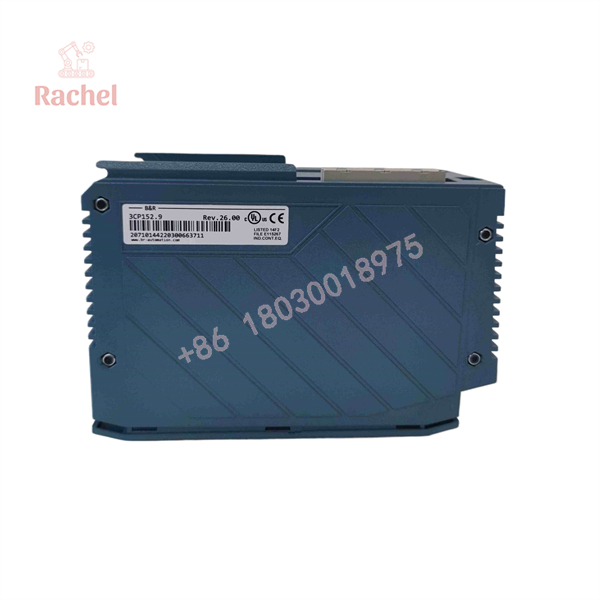

3CP152.9

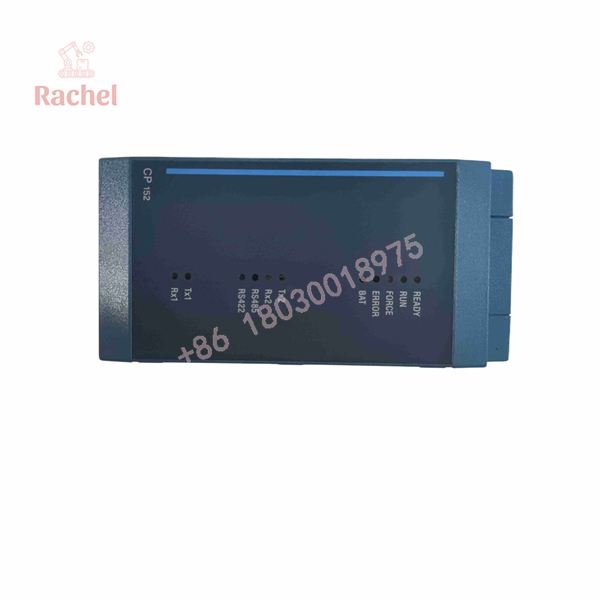

3CP152.9

Field Application & the “Trench” Experience

A realistic maintenance scenario is a legacy production machine whose original CP152 CPU begins exhibiting intermittent faults during a scheduled shutdown. The maintenance team does not want to modify the machine program, field wiring, or established communication architecture. A matching 3CP152.9 can be evaluated as a direct CPU replacement, allowing the engineering team to concentrate on application-memory transfer, configuration verification, and startup testing rather than redesigning the entire controller.

One practical consideration: do not treat the CPU and application memory as interchangeable items. The B&R documentation explicitly separates the CPU from the application-memory modules.

Niche applications where this architecture can be encountered include:

• Injection-molding machine sequence control where an existing B&R 2005 controller coordinates machine states and serial peripherals.
• Packaging-machine motion and auxiliary sequencing using legacy B&R controller hardware.
• Machine-tool auxiliary control where RS485/RS422 communication is retained for installed field devices.

Transparency SOP: QA & Testing

For New Surplus or Refurbished 3CP152.9 inventory, a sensible receiving and test procedure is:

1. Visual inspection — Check the enclosure, connector bodies, PCB condition, labeling, and signs of corrosion or unauthorized repair.
2. Identification verification — Confirm the B&R material number is 3CP152.9, rather than the similar 3CP152.90-2 variant.
3. Power-up evaluation — Install the CPU in a compatible test configuration and verify startup behavior and diagnostic indicators.
4. Communication testing — Where test equipment permits, verify the RS232 and electrically isolated RS485/RS422/TTY interfaces.
5. Memory/configuration check — Verify the supplied CPU configuration and any accompanying application-memory component separately.
6. Final QA record — Record the tested part number, condition, test results, and shipment condition.

The distinction between 3CP152.9 and 3CP152.90-2 deserves particular attention: the latter is documented with NC synchronization, while the standard 3CP152.9 is not.

The Veteran’s Tech Trap Guide

⚠️ Trap #1 — Ordering the wrong CP152 variant.
Do not substitute 3CP152.90-2 simply because the number looks nearly identical. B&R identifies NC synchronization on the .90-2 variant. Confirm the exact machine BOM before ordering.

⚠️ Trap #2 — Forgetting application memory.
The CPU’s 64 KB DPR SRAM and 256 KB system SRAM are not the same thing as the application-memory module. B&R explicitly states that application memory must be ordered separately.

PRO TIP: When troubleshooting a failed replacement, record the original CPU’s complete part number, application-memory part number, firmware/software environment, connector configuration, and machine backup before removing the old hardware.

⚠️ Trap #3 — Assuming every serial port is equivalent.
The RS232 interface is electrically different from the isolated RS485/RS422/TTY interface. Reproduce the original wiring and communication configuration rather than moving cables based solely on connector appearance.

Dynamic FAQ

Q: What is the B&R 3CP152.9?
It is a CPU module for the B&R 2005 automation system, with 64 KB dual-ported SRAM, 256 KB system SRAM, RS232, electrically isolated RS485/RS422/TTY, and an expansion master interface.

Q: Is the 3CP152.9 still an active product?
Current third-party listings identify the 3CP152.9 as discontinued by the manufacturer, so replacement-stock condition and exact compatibility should be verified before purchase.

Q: Is 3CP152.9 the same as 3CP152.90-2?
No. B&R documentation distinguishes them; the 3CP152.90-2 includes NC synchronization, while the standard 3CP152.9 does not.

Q: Does the CPU include application memory?
No. B&R specifies application memory separately and lists compatible ME-series memory options.

Q: What should I verify before ordering a replacement?
Confirm the exact CPU part number, application-memory module, existing 2005 hardware configuration, and required serial/network interface arrangement. A visually similar CP152 variant should not be assumed to be interchangeable.

Q: Is New Surplus the same as refurbished?
No. New Surplus normally means previously unused inventory that may have been stored outside the manufacturer’s current distribution channel; refurbished means the unit has undergone some form of inspection, repair, cleaning, or testing. Ask the supplier to state the actual condition and provide applicable test or warranty terms.
