Description
Product Introduction
The B&R 7DM465.7 is a digital mixed input/output module belonging to the versatile B&R System 2003 automation architecture. Designed for compact control cabinets, packaging lines, and process machinery, this card combines digital input reading and digital output switching into a single rack slot, maximizing cabinet space efficiency.
Programmed and configured via B&R Automation Studio, the 7DM465.7 interfaces directly with the central CPU (such as the 7CP series) across the high-speed system backplane. In our field experience, replacing a damaged 7DM465.7 card resolves blown output channels, missing field feedback signals, and backplane I/O fault stops without requiring any PLC program updates.
Key Technical Specifications
| Parameter | Value |
| Part Number | 7DM465.7 |
| Manufacturer | B&R Industrial Automation (Bernecker + Rainer) |
| System Family | B&R System 2003 / System 2005 |
| Module Type | Digital Mixed Input / Output Module |
| Signal Level | 24 VDC Logic (Standard Industrial Automation Rating) |
| Galvanic Isolation | Optocoupler Isolation between Field Signals & Backplane |
| Status Indicators | LED Channel Status Indicators for Inputs & Outputs |
| Operating Temperature | 0°C to +55°C |
Application Scenarios & The “Trench” Experience
A high-speed labeling machine experienced random stoppage errors where a pneumatic cylinder failed to extend on command. Diagnostic indicators on the B&R System 2003 rack showed that output channel 3 on the existing digital card had shorted out due to a voltage spike on a faulty solenoid coil.
- Packaging & Filling Lines – Actuator & Sensor Interface – Reads photo-eyes and proximity switches while driving high-speed pneumatic valves.
- Plastics & Extrusion Equipment – Limit & Safety Interlocks – Gathers machine guard safety signals and valve actuator status.
- Material Handling Systems – Conveyor Diverters – Controls sorting gates based on real-time photo-sensor triggers.
The maintenance team disconnected power to the rack, unlatched the field wiring connector, and swapped out the faulty card with a bench-tested B&R 7DM465.7 surplus module. Upon restoring system power, all I/O status LEDs functioned normally and the machine resumed full production instantly.

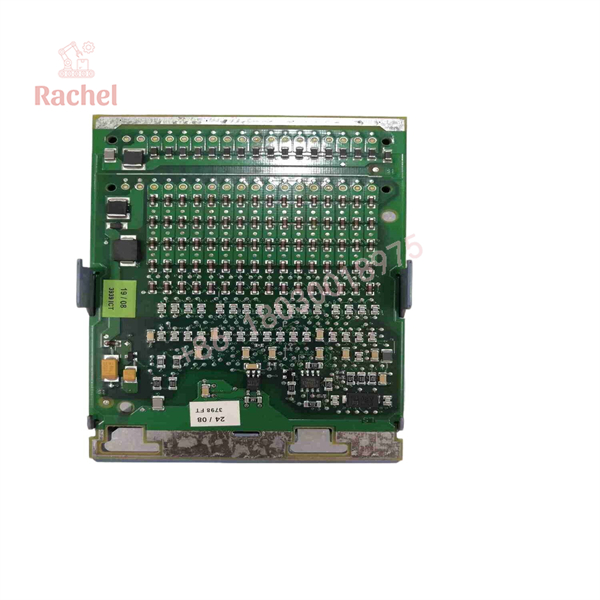

7DM465.7

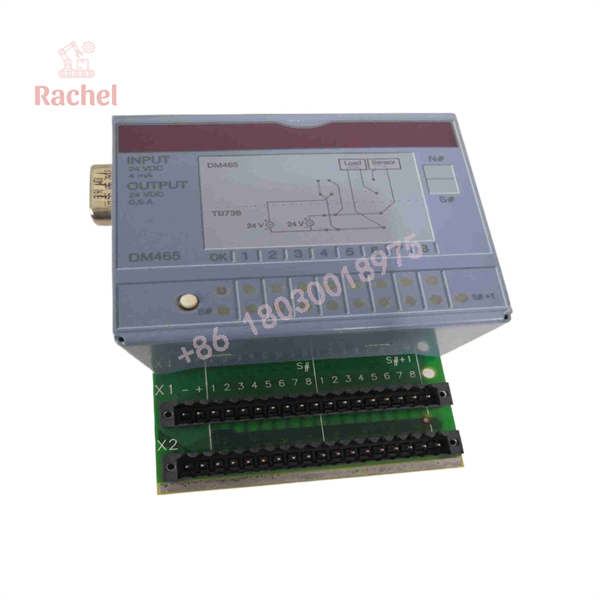

7DM465.7
Transparency SOP: Quality Assurance & Testing
Every 7DM465.7 I/O module undergoes comprehensive functional testing before being cleared for inventory:
- Inbound Visual & Mechanical Check: Inspecting edge connector pins, module housing latches, card alignment rails, and front terminal blocks.
- Backplane & Logic Power Test: Powering the module in a System 2003 test rack to confirm proper logic startup and internal power rail stability.
- Digital Input Loop Testing: Applying 24 VDC to each input point to verify optocoupler switching, backplane register update, and LED illumination.
- Digital Output Load Testing: Driving rated current loads across every output channel to test switching transistors/relays under thermal stress.
- ESD Protective Packaging: Sealing the module inside anti-static ESD bags with custom protective foam padding for transport.
The Veteran’s Tech Trap Guide (Crucial Value-Add)
- ⚠️ Check Field Solenoid Flyback Diodes: Blown output channels on the 7DM465.7 are frequently caused by inductive voltage spikes from field solenoids lacking flyback protection diodes. Always check suppressor diodes across inductive loads when replacing shorted I/O cards.
- ❗ Verify Terminal Plug Keying: Ensure that removable terminal blocks or wiring harnesses are fully seated and latched into the front of the 7DM465.7 card. Loose terminal screws can cause intermittent sensor readings.
- ⚠️ De-energize Before Extraction: Never pull or insert System 2003 I/O modules while the backplane power supply is energized. Hot-swapping backplane cards can pit edge connector contacts and damage internal bus driver chips.
Frequently Asked Questions (FAQ for Conversion)
Q: Does replacing the 7DM465.7 require downloading software from B&R Automation Studio?
A: No. The 7DM465.7 is a standard hardware I/O card. As long as it replaces an identical 7DM465.7 module in the same rack slot, no software reconfiguration is required.
Q: Can I replace individual failed output channels on this board?
A: The module is an integrated circuit assembly. Field repairs of surface-mount components are generally not recommended; swapping the entire card is standard plant maintenance practice.
Q: Is the 7DM465.7 still in active production by B&R?
A: The System 2003 series is a legacy automation platform. Fully tested units are available through quality industrial surplus and refurbished equipment channels.
Q: What power supply voltage does the 7DM465.7 field side require?
A: The field inputs and outputs operate on standard 24 VDC industrial control power.
Q: What warranty comes with this surplus B&R module?
A: Every tested 7DM465.7 unit includes our standard 12-month full replacement warranty.
