B&R 8BVI0440HWS0-000-1 ACOPOSmulti 44A Servo Drive Module

Description

Product Introduction & Engineering Value

The B&R 8BVI0440HWS0-000-1 is a high-current ACOPOSmulti single-axis inverter module designed for demanding servo motion applications. It provides motor control for one axis with a continuous current capability of 44 Aeff and supports motor outputs up to 32 kW within B&R’s modular ACOPOSmulti drive platform.

In large automation systems, a servo inverter failure can stop an entire machine section even when the PLC, safety controller, and network remain operational. Maintaining a tested replacement inverter reduces recovery time because engineers can restore the existing motor configuration instead of redesigning the motion system.

Technical Specifications

Field Application & The “Trench” Experience

A large packaging machine used several ACOPOSmulti servo axes for synchronized movement of high-speed mechanical sections. During production, one axis suddenly stopped while the PLC continued running normally.

The maintenance team initially investigated encoder feedback and mechanical binding because the fault occurred during acceleration. After checking the drive diagnostics, engineers identified an inverter power stage fault inside the affected axis module.

A replacement B&R 8BVI0440HWS0-000-1 was installed during a planned maintenance window. The team restored the original axis parameters, verified motor identification data, checked safety inputs, and completed motion testing before returning the machine to production.

The field lesson: servo inverter failures often appear as mechanical problems first. Proper drive diagnostics and maintaining a tested spare are essential.

Typical application scenarios:

• High-speed packaging machine servo axes
• Large converting and printing equipment
• Industrial robot positioning systems
• Heavy-duty material handling motion systems

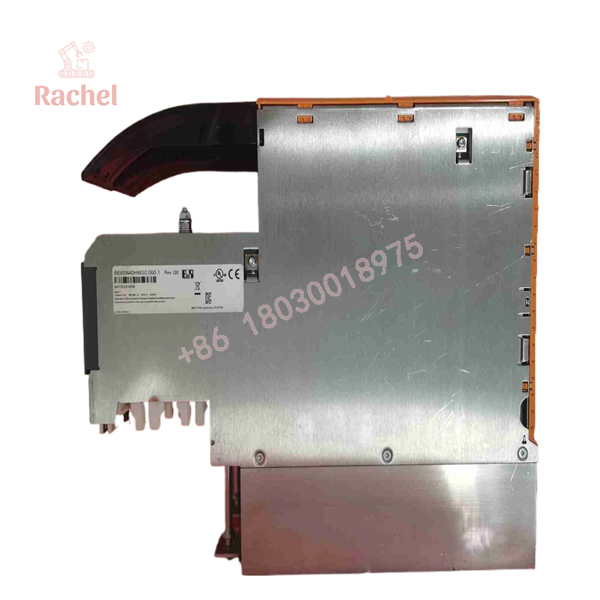

8BVI0440HWS0-000-1

Transparency SOP: QA & Testing

Servo inverter modules require functional drive testing, not only visual inspection.

Testing procedure:

1. Identification Verification

• Confirm B&R ACOPOSmulti marking.
• Verify model: 8BVI0440HWS0-000-1.
• Check hardware revision and connectors.

2. Physical Inspection

• Inspect power terminals.
• Check cooling surfaces.
• Verify fan condition.
• Inspect PCB and housing.

3. Power Stage Testing

• Apply controlled DC bus voltage.
• Verify startup sequence.
• Check diagnostic indicators.
• Confirm internal protection functions.

4. Motion Simulation

• Connect compatible motor test equipment.
• Verify output switching.
• Test enable inputs.
• Check brake output operation.
• Confirm temperature input response.

5. Final Documentation

• Record serial number.
• Store test measurements.
• Assign inventory status:
  • New Surplus
  • Refurbished
  • Tested Used

The Veteran’s Tech Trap Guide

⚠️ Trap #1: Replacing the Drive Without Checking Motor Data

A servo inverter is not plug-and-play hardware.

Verify:

• Motor type
• Encoder configuration
• Rated current
• Motor parameters
• Axis configuration

PRO TIP: Always back up ACOPOSmulti parameters before replacing a drive module.

⚠️ Trap #2: Ignoring DC Bus Compatibility

The 8BVI0440HWS0-000-1 operates within an ACOPOSmulti DC bus architecture.

Check:

• DC bus voltage
• Power supply module compatibility
• Regeneration conditions
• Brake resistor requirements

Installing the correct inverter into the wrong power architecture can create immediate faults.

⚠️ Trap #3: Missing Safety Configuration

This inverter includes safety-related functions.

After replacement verify:

• Safe stop configuration
• Enable input wiring
• Safety controller communication
• Machine safety validation

A drive that moves correctly may still fail safety acceptance testing.

Dynamic FAQ

Q1. What is the B&R 8BVI0440HWS0-000-1 used for?

The B&R 8BVI0440HWS0-000-1 is an ACOPOSmulti single-axis inverter module used to control high-power servo motors in industrial motion applications.

Q2. What motor power does the 8BVI0440HWS0-000-1 support?

The module supports approximately 32 kW continuous motor power, with 44 Aeff continuous current and 88 Aeff peak current capability.

Q3. Is the 8BVI0440HWS0-000-1 a complete servo drive system?

No. It is an inverter module within the ACOPOSmulti platform. A complete system also requires compatible power supply, controller, motor, feedback device, and configuration software.

Q4. What should buyers verify before purchasing a New Surplus 8BVI0440HWS0-000-1?

Recommended checks:

• Exact B&R material number
• ACOPOSmulti system compatibility
• Hardware revision
• Motor current requirements
• Safety configuration
• Connector condition
• Functional test records
• Warranty coverage

Q5. Can a refurbished 8BVI0440HWS0-000-1 be used in production equipment?

Yes, provided the inverter has passed DC bus testing, output stage verification, communication checks, and parameter compatibility review.

Q6. Why keep an 8BVI0440HWS0-000-1 as a spare?

High-power servo drives are usually production-critical components. A failed inverter can stop machine motion immediately. A tested spare reduces downtime by allowing maintenance teams to restore the existing axis configuration instead of performing a major retrofit.
