Description
Product Introduction & Engineering Value

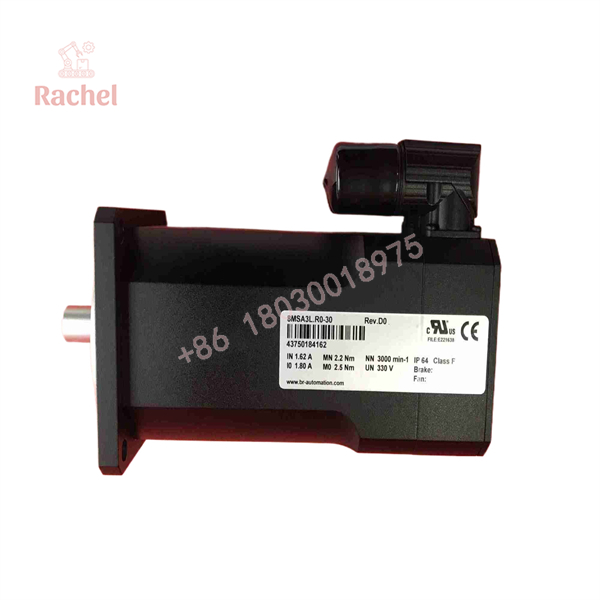

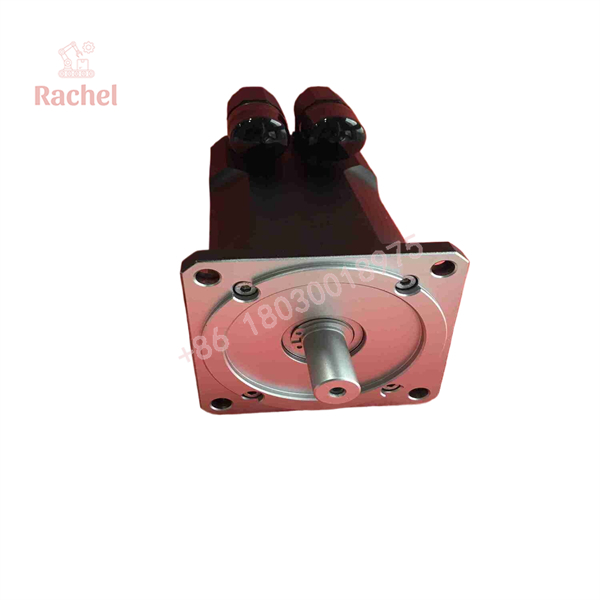

The B&R 8MSA3L.R0-30 is a compact 8MS series synchronous servo motor designed for precision industrial motion applications. It combines a size 3 motor frame, 3000 rpm rated speed, self-cooling construction, and resolver feedback for closed-loop operation with B&R motion controllers.
In the field, small servo motors frequently control critical machine movements. A failed indexing motor, feeder axis, or positioning actuator can stop an entire production sequence. Replacing the motor requires more than matching dimensions; engineers must verify feedback type, torque requirements, and ACOPOS drive compatibility.
Technical Specifications
| Specification | Details |
|---|---|
| Manufacturer | B&R Industrial Automation |
| Model Number | 8MSA3L.R0-30 |
| Motor Series | 8MS |
| Motor Type | Three-phase synchronous servo motor |
| Frame Size | 3 |
| Motor Length | L (Long) |
| Rated Speed | 3000 rpm |
| Feedback System | Resolver |
| Cooling Method | Self-cooled |
| Maximum Speed | Up to 12000 rpm (motor family dependent) |
| Flange Size | Approx. 80 × 80 mm |
| Shaft Diameter | 19 mm |
| Mounting Style | Flange mounting |
| Drive Compatibility | B&R ACOPOS servo drives |
| Protection Class | IP64/IP65 depending on configuration |
8MSA3L.R0-30
8MSA3L.R0-30
Field Application & The “Trench” Experience
A packaging machine manufacturer experienced repeated position deviation alarms on a small transfer mechanism. The axis moved normally during manual operation but failed during high-speed automatic cycles.
The maintenance team initially focused on the mechanical side. They checked couplings, guides, and load alignment. Nothing abnormal was found.
During electrical troubleshooting, engineers identified inconsistent resolver feedback from the servo motor. The installed B&R 8MSA3L.R0-30 was replaced with a tested spare, the ACOPOS parameters were restored, and the axis was recalibrated.
The machine returned to stable production.
The field lesson: a compact servo motor may look like a minor component, but its feedback accuracy directly affects the complete automation sequence.
Typical application scenarios:
- Packaging machine indexing systems
- Printing and web-handling equipment
- Electronic assembly positioning units
- Precision feeder mechanisms
- Small robotic transfer axes
Transparency SOP: QA & Testing
Servo motors require electrical, mechanical, and feedback verification before being released as replacement inventory.
Testing workflow:
1. Identification Review
- Confirm B&R nameplate.
- Verify exact model: 8MSA3L.R0-30.
- Check resolver option and mechanical configuration.
2. Mechanical Condition Check
- Inspect shaft surface.
- Verify flange condition.
- Check bearing smoothness.
- Inspect housing for damage.
3. Electrical Testing
- Measure winding resistance.
- Perform insulation resistance test.
- Verify phase balance.
- Check temperature sensor circuit.
4. Resolver Test
- Verify resolver excitation.
- Confirm feedback signal stability.
- Check position response.
5. Functional Drive Test
- Connect to compatible ACOPOS drive.
- Perform motor identification.
- Verify rotation direction.
- Check speed response.
6. Final Inventory Approval
Records include:
- Serial number
- Test measurements
- Inspection notes
- Warranty status
Stock classification:
- New Surplus
- Refurbished
- Tested Used
The Veteran’s Tech Trap Guide
⚠️ Trap #1: Confusing Resolver and Encoder Models
The 8MSA3L.R0-30 uses resolver feedback.
Before replacement, confirm:
- Drive feedback interface
- Existing motor parameters
- Controller configuration
A physically compatible motor with different feedback hardware may fail startup.
⚠️ Trap #2: Ignoring Motor Length Codes
The 8MS series uses different mechanical lengths.
Verify:
- Frame size
- Length designation
- Torque requirement
- Installation clearance
PRO TIP: The letter code is part of the motor specification, not a cosmetic identifier.
⚠️ Trap #3: Skipping Parameter Backup
Before removing the failed motor, save:
- ACOPOS axis parameters
- Motor identification data
- Motion tuning values
- Travel limits
Correct hardware with missing configuration can still result in lengthy commissioning.
Dynamic FAQ
Q1. What is the B&R 8MSA3L.R0-30 used for?
The B&R 8MSA3L.R0-30 is a three-phase synchronous servo motor used for precision motion applications with B&R ACOPOS automation systems.
Q2. What does the model code 8MSA3L.R0-30 mean?
The code identifies the motor family, frame size, mechanical length, feedback option, and rated speed:
- 8MS — synchronous motor family
- A3 — size 3 motor
- L — long motor length
- R0 — resolver feedback version
- 30 — 3000 rpm rated speed
Q3. Which drive systems are compatible with this servo motor?
The motor is designed for use with B&R ACOPOS servo drive platforms. The exact drive selection depends on application torque, current requirements, and machine dynamics.
Q4. What should buyers verify before purchasing a New Surplus 8MSA3L.R0-30?
Recommended checks:
- Exact B&R part number
- Resolver feedback compatibility
- Shaft and flange dimensions
- Motor winding test results
- Mechanical condition
- Previous storage environment
- Warranty coverage
Q5. Can a refurbished 8MSA3L.R0-30 be installed in production equipment?
Yes. A refurbished motor should pass insulation testing, resolver verification, mechanical inspection, and operational testing with a compatible B&R motion system before installation.
Q6. Is the 8MSA3L.R0-30 still a critical spare for legacy machines?
Yes. Although newer motion platforms may be available, many OEM machines continue operating with B&R 8MS motors. Maintaining tested replacement units can reduce downtime and avoid unnecessary machine redesign.
