B&R 8V1090.00-2 ACOPOS Multi-Axis Servo Drive Module

Description

Product Introduction

The B&R 8V1090.00-2 is a high-power servo drive module belonging to the flagship ACOPOS 1090 family. Designed for high-demand industrial motion applications, this unit integrates directly into B&R automation architectures via standard ACOPOS plug-in slots for communication and encoder interface cards. It operates across line voltages from 400 to 480 VAC, powering heavy-duty servo motors with rapid sampling rates and precise position control.

Unlike general-purpose variable frequency drives (VFDs) that struggle with rapid dynamic cycling, the 8V1090.00-2 features fast current control loops (up to 50 µs) and an ultra-low-loss IGBT power stage. It incorporates built-in DC bus charging circuits, advanced thermal monitoring, and direct integration with B&R Automation Studio software. This architecture ensures low motor ripple, minimal torque distortion, and instantaneous emergency stop execution without tripping nuisance overcurrent alarms.

Key Technical Specifications

Application Scenarios & The “Trench” Experience

It’s 3:30 AM on a Friday, and a high-speed continuous blow-molding line goes dark. The main extuder feed axis ACOPOS drive throws an unrecoverable internal DC-bus short-circuit fault (F4002), dropping line pressure and stopping the whole production sequence. Every hour of downtime costs the plant $2,500 in scrap material and unfulfilled shifts. The factory distributor quotes a 12-week factory backorder for a replacement 8V1090.00-2 module. You do not have 12 weeks; you need a verified, bench-tested drive module shipped overnight so your technicians can swap plug-in cards and restore production before Monday morning.

• Heavy Packaging & Palletizing – Multi-axis gantry robots and high-inertia arm mechanisms – Provides high peak current (88 A) to accelerate heavy payloads without dropping voltage.
• Plastics & Injection Molding – High-speed clamp and injection screw axes – Delivers precise closed-loop torque regulation during high-pressure holding phases.
• Metal Stamping & Forming – Servo-driven feeders and transfer bars – Utilizes rapid current loop execution to coordinate multiple sync axes over POWERLINK.
• Converting & Printing Lines – Continuous web-fed printing presses – Maintains ultra-smooth low-speed torque to avoid web breaks or registration errors.

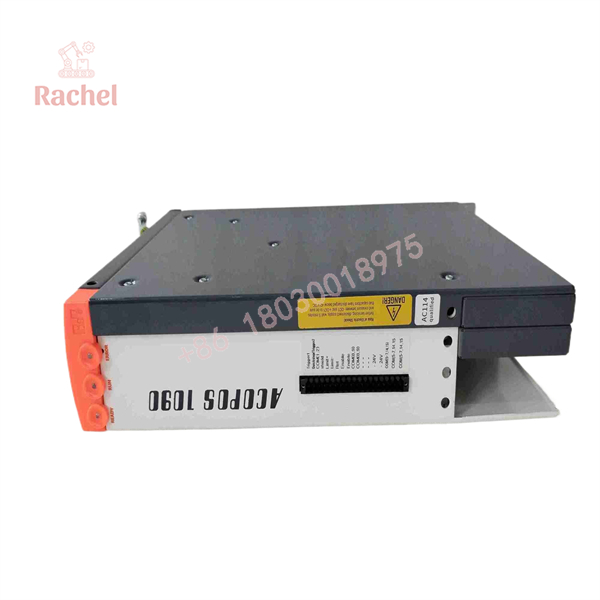

8V1090.00-2

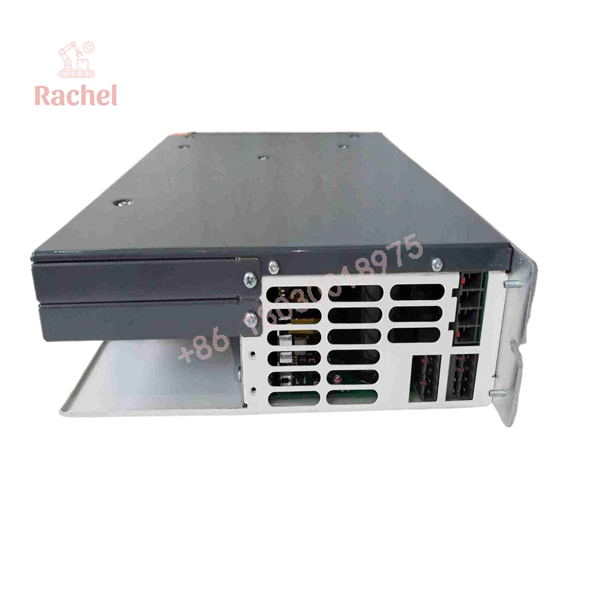

8V1090.00-2

Transparency SOP: Quality Assurance & Testing

We don’t just ship boxes; we test them on actual B&R test benches. Every 8V1090.00-2 drive passes a rigorous 5-step bench verification process:

1. Inbound Mechanical & Backplane Inspection: Examine housing structural integrity, check backplane busbar connectors for pitting/wear, verify fan rotation, and check factory serial labels.
2. Capacitor Reforming & Static Power Testing: Gradually reform the internal DC bus electrolytic capacitors using a current-limited DC supply; check for leakage currents across IGBT modules.
3. Card Slot Handshake & Firmware Flash: Populate slots with standard POWERLINK (AC114) and Encoder (AC120) cards to verify bus communications, slot logic, and parameters in Automation Studio.
4. Live Dynamic Load Test: Connect the unit to a 22 kW B&R 8MSA/8LSA motor test bed, running high-speed acceleration/deceleration profiles to verify current loop stability and braking chopper triggering.
5. Cleanroom QC & Anti-Static Packaging: Flush fans, apply protective terminal covers, seal the unit in heavy anti-static ESD bags, and pack it in a custom foam-reinforced crate.

The Veteran’s Tech Trap Guide (Crucial Value-Add)

⚠️ Transfer Your Option Cards First: The base 8V1090.00-2 model is just the core power unit! It does NOT include fieldbus communication cards (like POWERLINK or CAN) or encoder feedback cards. Make sure to power down, pull the plug-in option cards (Slot 1, 2, 3, 4) from your dead drive, and seat them firmly into the replacement unit before booting up.

❗ Respect Capacitor Discharge Time: The DC bus internal capacitors store lethal voltage (800 VDC) long after the 480 VAC supply is disconnected. Wait at least 10 full minutes after power down, and measure across the DC+ and DC- terminals with a multimeter before touching wire lugs or terminal screws.

⚠️ Mind the Cooling Airflow Clearance: This drive pushes significant heat under 44 A continuous loading. Do not mount smaller terminal strips or wire ducts directly above or below the drive unit. Restricting the top exhaust vent by even 2 inches will cause thermal tripping under summer ambient conditions.

Frequently Asked Questions (FAQ for Conversion)

Q: Does the 8V1090.00-2 support hot-swapping?

A: No. Absolutely not. Pulling terminal blocks, option cards, or power connections while the mains or DC bus is energized will arc the backplane connectors and permanently destroy the control logic on the drive board.

Q: Can I replace an older 8V1090.00-1 revision with this 8V1090.00-2 module?

A: Yes. The .00-2 is the hardware revision update for the original ACOPOS 1090 series, featuring improved thermal management and upgraded component tolerances. It drops directly into existing cabinet footprints and uses identical software parameter structures.

Q: Do I need to program this drive before installing it?

A: No. ACOPOS drives store parameter sets in the central B&R PLC controller (e.g., System 2005, X20, or Power Panel). When you insert your existing communication card and power up the system, the master controller automatically downloads the motor parameters and configuration parameters to the replacement drive.

Q: What is the warranty coverage on this surplus drive module?

A: Every 8V1090.00-2 unit supplied is backed by a full 12-month operational warranty. If any hardware component fails or trips an unresolvable internal fault under normal operating conditions, we replace it immediately.

Q: Why choose surplus inventory instead of buying new directly from B&R?

A: Factory lead times for high-power ACOPOS 1090 units can stretch into several weeks or months. Purchasing bench-tested, new surplus stock gives you instant availability at a fraction of the OEM list price, keeping your plant running without long schedule delays.
