Cegelec CSR70 Drive Module | Static Converter Controller

Description

Product Introduction & Engineering Value

Heavy industrial processes—such as rolling mills, mine hoists, and large paper machine sections—frequently rely on legacy DC drives that demand robust thyristor control electronics to maintain precise speed regulation under severe load transients. The Cegelec CSR70 drive module serves as the primary regulation and firing control core for legacy Cegelec static converter systems.

Engineered for rugged, continuous-duty plant environments, this controller handles complex armature current loops and field excitation regulation without thermal drift. Plant electrical engineers rely on its modular circuit board architecture to restore reliable operation to legacy DC motor drives, avoiding expensive mechanical retrofits and motor replacements.

Technical Specifications

• System Family: Cegelec CSR Static Converter / DC Drive Series
• Module Type: Thyristor firing and regulation control board
• Control Architecture: High-stability analog regulation loops with integrated gating pulse amplifiers
• Mounting Configuration: Rack or cabinet-mounted printed circuit board assembly with plug-in edge connectors
• Diagnostic Features: Board-mounted test points and LED indicators for power rails and firing status
• Power Supply Requirements: Regulated internal DC power rails supplied via drive chassis transformer
• Operating Ambient Temperature: 0°C to +55°C (32°F to 131°F) industrial enclosure range
• Cooling Method: Natural convection cabinet airflow

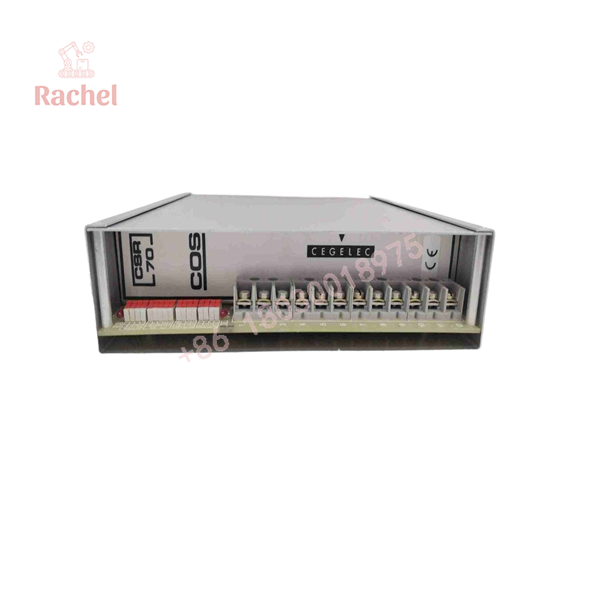

CSR70

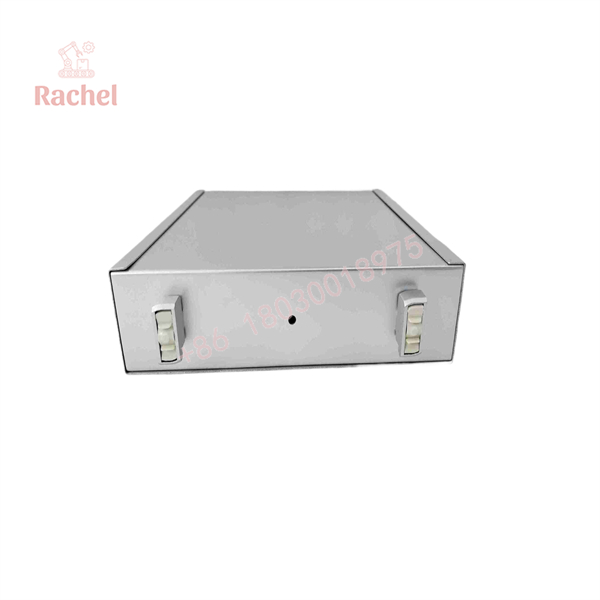

CSR70

Field Application & The “Trench” Experience

During a heavy operational run at a steel rolling mill, a primary DC main drive controlling a heavy coiler reel faulted out due to a blown pulse transformer and gate driver failure on an aging Cegelec CSR converter stack. Unplanned downtime on the finishing line was costing thousands of dollars every hour. The electrical maintenance team retrieved a verified New Surplus Cegelec CSR70 module from the plant’s legacy spares vault, verified all internal potentiometer settings against the original drive calibration sheets, and inserted the card into the converter rack. Upon powering up the bridge, the unit synchronized its thyristor firing pulses cleanly, re-established smooth armature current control, and brought the coiler back on line within forty minutes.

Targeted Application Scenarios:

• Heavy Rolling Mill Main Drives: Regulating high-horsepower DC motors under heavy, fluctuating impact loads.
• Mine Hoist Winch Control Systems: Executing precise four-quadrant speed and torque regulation for vertical material transport.

Transparency SOP: QA & Testing

1.Visual & Component Inspection:10 min.

Examine all electrolytic capacitors, edge connectors, and surface solder traces under optical magnification for thermal wear or aging.

2.Bench Power & Regulation Check:30 min.

Seat the CSR70 module into a specialized static converter test fixture to verify internal DC power rail stability and oscillator timing.

3.Thyristor Firing Pulse Verification:1 hr.

Monitor gating pulse outputs with an oscilloscope to confirm proper phase angle synchronization, amplitude, and symmetry across all bridge channels.

4.Thermal Chamber Burn-In:24 hrs.

Operate the module continuously under a controlled thermal load for 24 hours to eliminate infant mortality risks prior to customer dispatch.

The Veteran’s Tech Trap Guide (Crucial Value-Add)

⚠️ THYRISTOR FIRING SYNCHRONIZATION HAZARD: When replacing a CSR70 module, never adjust raw analog tuning potentiometers blindly without an oscilloscope. Mismatched firing angles or asymmetric gate pulses can cause shoot-through currents, instantly tripping AC supply breakers or destroying the power thyristor bridge.

PRO TIP: Always document the exact physical positions of all span and zero trim potentiometers on the failed board before unbolting it. Transferring these calibration settings to the replacement unit provides a safe baseline for initial startup.

Dynamic FAQ

• Q: Is the Cegelec CSR70 compatible with older Alsthom DC drive systems?
  • A: Yes, Cegelec evolved from Alsthom’s industrial automation division, and the CSR series shares lineage across many legacy Alsthom static converter architectures.
• Q: Do I need to recalibrate current and speed loops after installing a replacement CSR70 board?
  • A: If you carefully match the potentiometer calibration settings from your original card, the drive will typically start safely, but always verify tachogenerator scaling and current limit thresholds before applying full motor load.
• Q: Are your replacement CSR70 units brand new or refurbished?
  • A: Our inventory consists of verified New Surplus and thoroughly reconditioned, fully bench-tested units ready for immediate deployment.
• Q: What warranty coverage comes with this module?
  • A: Every CSR70 unit is backed by our comprehensive 12-month full replacement warranty covering all operational and functional performance aspects.
